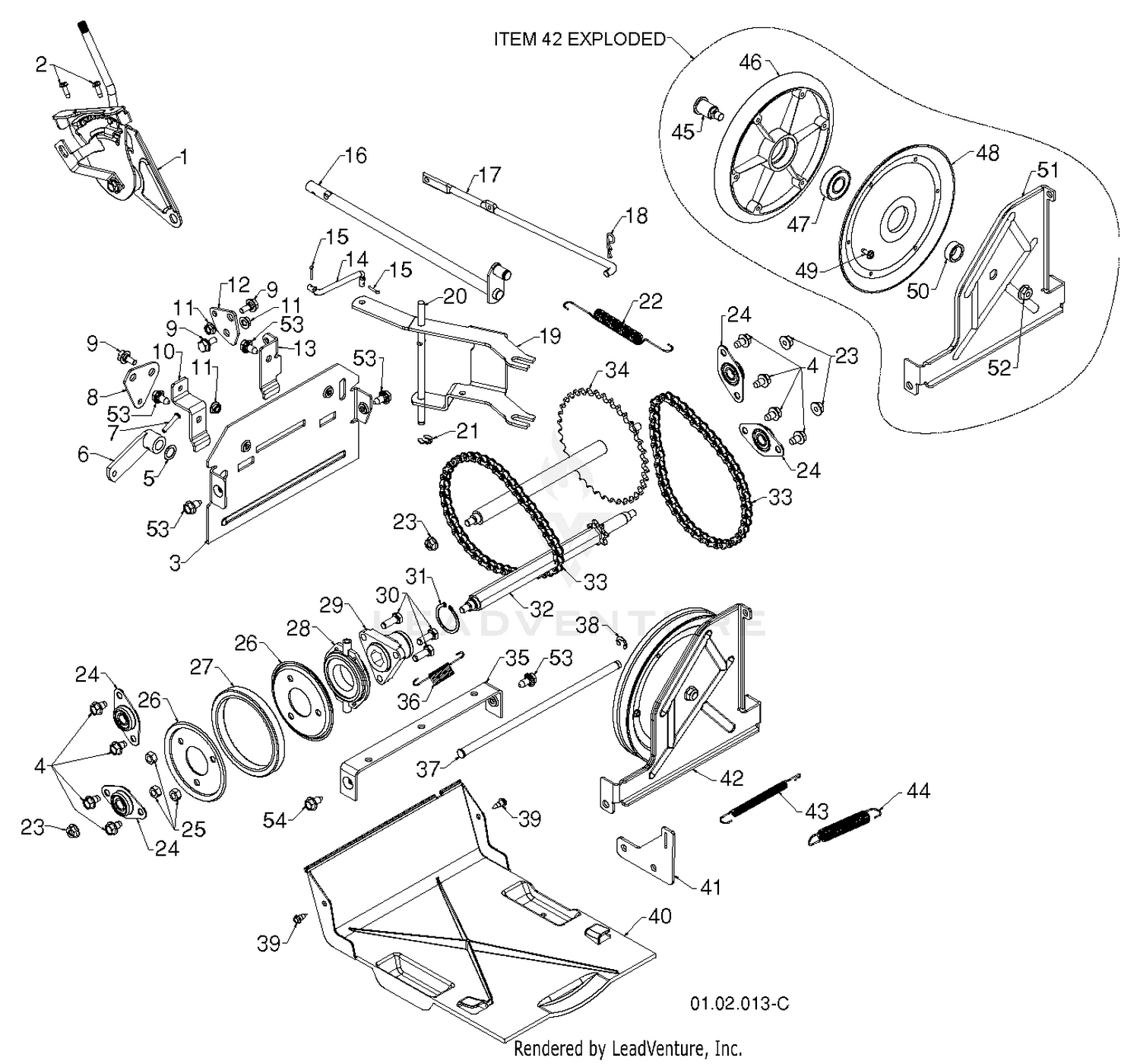

| Ref | Part Number | Description |
|---|
| 1 |
532429667 |
KIT.CONTROL.SPEED.SELECTOR.SNO This part replaces 532198875. Price: $74.99 |
| 2 |
817501010 |
SCREW #10-24 X 5/8 Price: $4.99 |
| 3 |
532436080 |
PLATE.END.CHAIN.ASM.PNT.ORANGE Price: $19.99 |
| 4 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 5 |
532057079 |
THRUST WASHER Price: $1.99 |
| 6 |
532405485 |
ARM, AUGER CONTROL Price: $6.99 |
| 7 |
532198580 |
CLEVIS PIN Price: $4.99 |
| 8 |
532415450 |
PLATE.SHIFTER.BZP Price: $6.99 |
| 9 |
532402881 |
BOLT.SHOULDER.3/X.25 Price: $3.99 |
| 10 |
532415433 |
BRACKET.SHIFTER.PLATE.BZP Price: $3.99 |
| 11 |
532191730 |
NUT.HEX.FLANGE.1/4 Price: $3.99 |
| 12 |
532415435 |
PLATE.CLUTCH.BZP Price: $2.99 |
| 13 |
532416864 |
BRACKET.CLUTCH.PLATE.BZP Price: $3.99 |
| 14 |
532187101 |
LINK, SPEED CONTROL Price: $64.99 |
| 15 |
532700279 |
RETAINER CLIP Price: $2.99 |
| 16 |
532429668 |
KIT.CONTROL.SHAFT.SNOW This part replaces 532427542. Price: $29.99 |
| 17 |
532402568 |
ROD.CLUTCH.SWING.PLATE Price: $11.99 |
| 18 |
532169675 |
SPRING RETAINER Price: $4.99 |
| 19 |
581422501 |
BRACKET.YOKE.SHIFTER.BLACK This part replaces 532401732. Price: $37.99 |
| 20 |
532402310 |
ROD.PIVOT.SHIFTER Price: $4.99 |
| 21 |
812000036 |
KLIP RING TI Price: $2.99 |
| 22 |
532402878 |
SPRING.TRACTION.RETURN Price: $4.99 |
| 23 |
532751153 |
NUT.LOCK.5/16-18 Price: $2.99 |
| 24 |
532408981 |
BEARING FLANGE BALL Price: $5.99 |
| 25 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 26 |
532435789 |
PLATE.RUBBER.WHEEL.BLACK This part replaces 532199509. Price: $7.99 |
| 27 |
585021001 |
RING.RUBBER.4.5".SNOW.DR(2 2MC This part replaces 532440620. Price: $22.99 |
| 28 |
597412801 |
BEARING HOUSING ASSY TRUNNION This part replaces 532175344. Price: $29.99 |
| 30 |
596322201 |
BOLT HEXAGON BOLT 5/16-18 X 7/ This part replaces 874760514. Price: $2.99 |
| 31 |
583607301 |
RING.RETAINING. This part replaces 812000012. Price: $2.99 |
| 32 |
532402187 |
SHAFT.HEX.W/SPOCKET Price: $17.99 |
| 33 |
532401619 |
CHAIN.DRIVE.SNOWTHROWER.#420 Price: $13.99 |
| 34 |
532437303 |
SPROCKET.WELDMENT Price: $44.99 |
| 35 |
532401984 |
BRACKET.YOKE.SHIFTER.SPEED.BLA This part replaces 532415429. Price: $17.99 |
| 36 |
532180135 |
SPRING, BIAS Price: $3.99 |
| 37 |
532402652 |
ROD.PIVOT.SWING.PLATE.SNOW Price: $32.99 |
| 38 |
532428288 |
E-RING.RETAINER.REINFORCED.375 Price: $3.99 |
| 39 |
594975601 |
Screws This part replaces 532184471. Price: $1.99 |
| 40 |
532410877 |
PAN.BOTTOM.PLASTIC Price: $19.99 |
| 41 |
532416682 |
BRACKET.TRACTION.SPRING. Price: $3.99 |
| 42 |
585111201 |
PULLEY.PLATE.ASM.DRIVE This part replaces 532402689. Price: $89.99 |
| 43 |
532414557 |
SPRING.TRACTION.IDLER Price: $4.99 |
| 44 |
532178828 |
SPRING, BRAKE Price: $4.99 |
| 45 |
532402504 |
SHAFT.FRICTION.PULLEY.SNOW Price: $8.99 |
| 46 |
585111201 |
PULLEY.PLATE.ASM.DRIVE This part replaces 532401820. Price: $89.99 |
| 47 |
532198791 |
BEARING Price: $9.99 |
| 48 |
585111201 |
PULLEY.PLATE.ASM.DRIVE This part replaces 532402393. Price: $89.99 |
| 49 |
817541008 |
SCREW Price: $3.99 |
| 50 |
532402511 |
SPACER BEARING Price: $3.99 |
| 51 |
532422941 |
PLATE.SWING.DRIVE.BLACK Price: $8.99 |
| 52 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532132010. Price: $3.99 |
| 53 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 Price: $4.99 |
| 54 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $4.99 |
