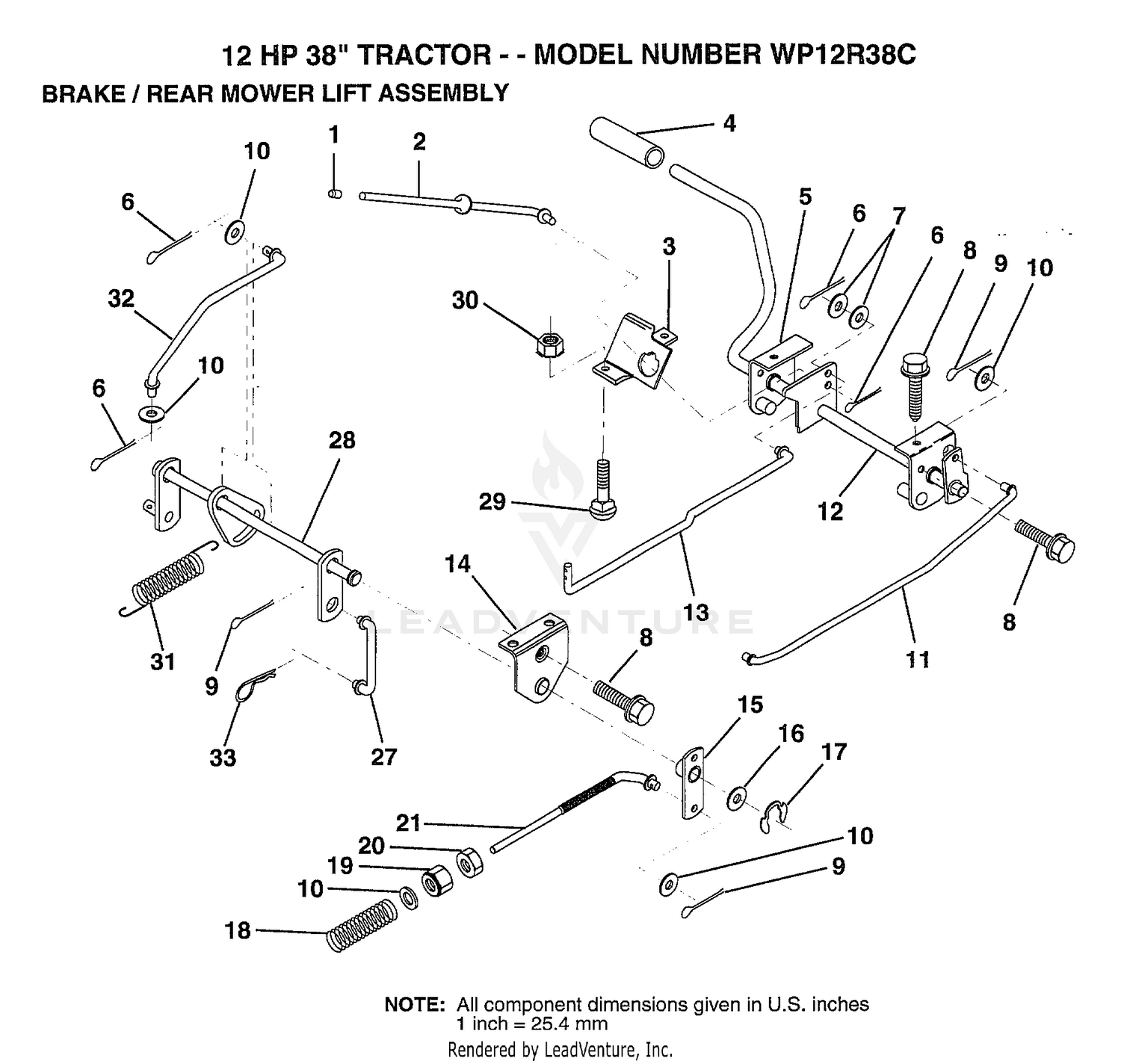

| Ref | Part Number | Description |
|---|
| 1 |
71673 |
PLUNGER CAP T Price: Call Us |
| 2 |
43-0090 |
SCREW-HH Price: $8.05 |
| 3 |
48-8070 |
WASHER-LOCK Price: $0.47 |
| 4 |
8883R |
PEDAL COVER T Price: Call Us |
| 5 |
132205 |
BRK ASM CLUT LH Price: Call Us |
| 6 |
76020312 |
SUB= 3145 Price: Call Us |
| 7 |
19131016 |
WASHER Price: Call Us |
| 7 |
48-9590 |
WASHER-LOCK Price: $0.25 |
| 8 |
17490508 |
SCREW LT Price: Call Us |
| 9 |
76020412 |
COTTER PIN Price: Call Us |
| 10 |
19131316 |
WASHER Price: Call Us |
| 12 |
139934 |
PEDAL ASM CLU/BRK Price: Call Us |
| 12 |
3253-4 |
WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 15 |
133332 |
PVT BRAKE ARM ASM Price: Call Us |
| 15 |
58-3590 |
DOWEL Price: $5.50 |
| 16 |
19251816 |
WASHER T Price: Call Us |
| 16 |
92-1753 |
COUPLING-SPRING Price: $696.17 |
| 17 |
12000034 |
KLIP RING Price: Call Us |
| 17 |
98-1211-03 |
PLATE-ADAPTER, PUMP Price: $306.66 |
| 18 |
106888X |
SPRING ROD LT Price: Call Us |
| 19 |
3213-20 |
SCREW-HH Price: $1.76 |
| 19 |
73350600 |
NUT Price: Call Us |
| 20 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 20 |
73800600 |
NUT Price: Call Us |
| 21 |
131460 |
SUB= 532131460 Price: Call Us |
| 22 |
98-7066-03 |
BRACKET-DAMPER Price: $48.17 |
| 27 |
136780 |
LINK LIFT REAR LR Price: Call Us |
| 28 |
140777 |
LIFT.ASM.REAR.LR Price: Call Us |
| 28 |
323-11 |
SCREW-HH Price: $1.08 |
| 29 |
72110506 |
SUB= 72270506 Price: Call Us |
| 29 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 30 |
73510500 |
NUT Price: Call Us |
| 31 |
133095 |
COUNTER SPRING Price: Call Us |
| 31 |
32128-21 |
NUT-HF Price: $0.39 |
| 32 |
133721 |
LINK LIFT LEVER Price: Call Us |
| 33 |
100-5633 |
SPACER-COUPLING Price: $149.21 |
| 34 |
98-3024 |
MOUNT-ENGINE Price: $103.88 |
| 35 |
121-9076 |
MOUNT-ENGINE This part replaces 83-1030. Price: $37.76 |
| 36 |
98-1207-03 |
BRACKET-FRONT, LH Price: $74.95 |
| 37 |
98-1206-03 |
BRACKET-FRONT, RH Price: $74.95 |
| 38 |
98-1200-03 |
SPACER Price: $22.92 |
| 39 |
98-1204-03 |
BRACKET-ENGINE, LH REAR Price: $49.06 |
| 40 |
98-1205-03 |
BRACKET-ENGINE, RH REAR Price: $46.61 |
| 41 |
32128-20 |
NUT-HF Price: $0.99 |
| 42 |
323-11 |
SCREW-HH Price: $1.08 |
| 43 |
33116-070 |
SCREW-HH Price: $4.14 |
| 44 |
32128-43 |
NUT-FLANGE Price: $0.94 |
| 45 |
48-9530 |
NUT Price: $1.78 |
| 46 |
80-6990 |
WASHER-HARDENED Price: $3.06 |
| 47 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 48 |
63-7400 |
WASHER-REBOUND Price: $1.70 |
| 49 |
87-5100 |
WASHER-SNUBBING Price: $3.46 |
| 50 |
43-5940 |
WASHER-LOCK, SPRING Price: $0.70 |
| 51 |
98-1212 |
PIN-PLATE, PUMP Price: $38.00 |
| 52 |
100-5634 |
BOLT-SHOULDER Price: $9.16 |
| 53 |
33114-020 |
SCREW-HH Price: $0.28 |
| 54 |
70-8470 |
SCREW-HH Price: $1.76 |
| 55 |
43-3180 |
SCREW-HH Price: $18.78 |
| 56 |
43-3210 |
SCREW-HH Price: $4.27 |
