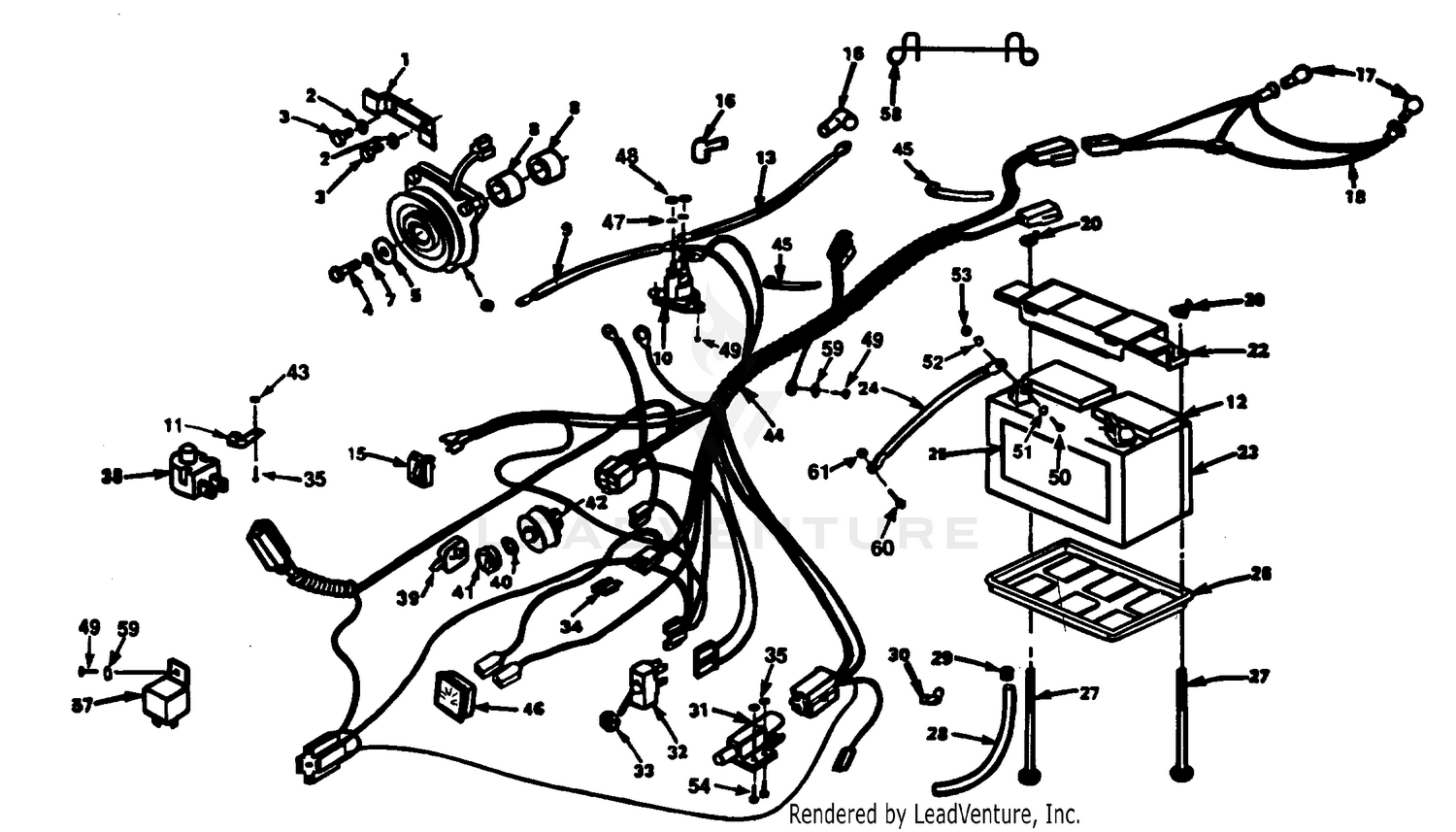

| Ref | Part Number | Description |
|---|
| 1 |
532110882 |
Clutch Stop (AYP part number) Price: $2.27 |
| 2 |
539990118 |
SLW 3/8 STD This part replaces 810040600. Price: $1.99 |
| 3 |
874780612 |
Hex Bolt (AYP part number) Price: $3.99 |
| 4 |
874610724 |
Hex Bolt (AYP part number) Price: $2.99 |
| 5 |
532108252 |
Washer (AYP part number) Price: $3.33 |
| 6 |
532109550 |
Electric Clutch (AYP part number) Price: $255.01 |
| 7 |
28-1060 |
DISCONTINUED Price: Call Us |
| 7 |
539990247 |
WASHER 7/16 LOCK This part replaces 810040700. Price: $1.99 |
| 8 |
28-0930 |
THRUST WASHER Price: $130.68 |
| 8 |
532106367 |
Clutch Spacer (AYP part number) Price: $9.17 |
| 9 |
532124770 |
Battery Cable (AYP part number) Price: $8.99 |
| 10 |
28-0870 |
DISCONTINUED Price: Call Us |
| 10 |
532109081 |
Solenoid (AYP part number) Price: $22.99 |
| 11 |
11-5790 |
KEY-SQUARE Price: $17.50 |
| 11 |
532124967 |
Clip, Insulated (AYP part number) This part replaces 532004171. Price: $5.46 |
| 12 |
28-0940 |
DISCONTINUED Price: Call Us |
| 12 |
532121264 |
Battery Caps (AYP part number) Price: $10.91 |
| 13 |
28-0860 |
BEARING Price: $82.16 |
| 13 |
532005114 |
Cable, Battery (AYP part number) This part replaces 532005115. Price: $8.46 |
| 14 |
28-1050 |
DISCONTINUED Price: Call Us |
| 15 |
532110712 |
Light Switch (AYP part number) Price: $4.99 |
| 16 |
28-0880 |
DISCONTINUED Price: Call Us |
| 16 |
532124783 |
Terminal Cover (AYP part number) Price: $4.99 |
| 17 |
28-0890 |
DISCONTINUED Price: Call Us |
| 17 |
532004152 |
LIGHTBULB This part replaces 532007662. Price: $2.99 |
| 18 |
32140-55 |
DISCONTINUED This part replaces 3211-33. Price: Call Us |
| 18 |
532110859 |
Light Socket Harness (AYP part number) Price: $17.84 |
| 20 |
353-671 |
DISCONTINUED Price: Call Us |
| 20 |
532146525 |
This part replaces 532123198. Price: $3.99 |
| 22 |
28-1100 |
COMMUTATOR SERVICE AS Price: $690.95 |
| 22 |
532150109 |
BATTERY HOLDDOWN This part replaces 532102476. Price: $4.99 |
| 23 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532121537. Price: $139.99 |
| 24 |
532124773 |
Ground Cable (AYP part number) Price: $4.99 |
| 25 |
532121549 |
Battery Decal (AYP part number) Price: $6.02 |
| 26 |
532007603 |
TRAY.BATTERY This part replaces 532124886. Price: $3.99 |
| 27 |
872240460 |
Carriage Bolt (AYP part number) Price: $3.99 |
| 28 |
532007697 |
Tube, Tray, Battery (AYP part number) This part replaces 532100541. Price: $6.23 |
| 29 |
532109596 |
Hose Clamp (AYP part number) Price: $2.99 |
| 30 |
532100207 |
Clip (AYP part number) Price: $2.99 |
| 31 |
532104445 |
Interlock Switch (AYP part number) Price: $9.99 |
| 32 |
532109626 |
P.T.O. Switch (AYP part number) Price: $3.33 |
| 33 |
532004022 |
Hex Nut (AYP part number) Price: $2.99 |
| 34 |
532108824 |
Fuse (AYP part number) This part replaces 532006347. Price: $3.99 |
| 35 |
873951000 |
No. 10-32 Keps Nut (AYP part number) Price: $5.99 |
| 38 |
532421062 |
SWITCH.SNAPMOUNT.NC This part replaces 532121305. Price: $7.99 |
| 39 |
532122147 |
Key (AYP part number) Price: $4.99 |
| 40 |
532124211 |
Nut, Ignition (AYP part number) This part replaces 532109788. Price: $3.99 |
| 41 |
584446901 |
KIT.IGN.BOOT/NUT This part replaces 532109787. Price: $4.99 |
| 42 |
532365402 |
KIT.SWITCH.IGNITN This part replaces 532125104. Price: $17.99 |
| 43 |
874641008 |
Slot Pan Hd. Screw (AYP part number) Price: $2.99 |
| 44 |
532124219 |
Ignition Harness Price: $3.33 |
| 45 |
532007192 |
WIRE TIE This part replaces 532124756. Price: $3.99 |
| 46 |
532122822 |
Ammeter (AYP part number) Price: $11.99 |
| 47 |
810040400 |
LOCKWASHER This part replaces 810090400. Price: $3.99 |
| 48 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873350400. Price: $3.99 |
| 49 |
817190408 |
Thd. Cutting Washer Hd. Hex Screw (AYP part number) Price: $5.99 |
| 50 |
874760412 |
Hex Bolt 1/4-20 x 3/4 (AYP part number) Price: $3.99 |
| 51 |
819091016 |
Washer (AYP part number) Price: $2.99 |
| 52 |
810040400 |
Lock Washer 1/4 (AYP part number) Price: $3.99 |
| 53 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873220400. Price: $3.99 |
| 54 |
874641008 |
Screw, Slotted Pan Head #10-32 x 1/2 (AYP part number) This part replaces 871031008. Price: $2.99 |
| 57 |
532109748 |
Relay Assembly (AYP part number) Price: $19.99 |
| 58 |
532121465 |
Wire Tie (AYP part number) Price: $2.38 |
| 59 |
539990118 |
SLW 3/8 STD This part replaces 811050600. Price: $1.99 |
| 60 |
873680600 |
Crownlock Nut Price: $1.99 |
| 61 |
874760612 |
Fin. Hex Bolt (AYP part number) Price: $1.99 |
