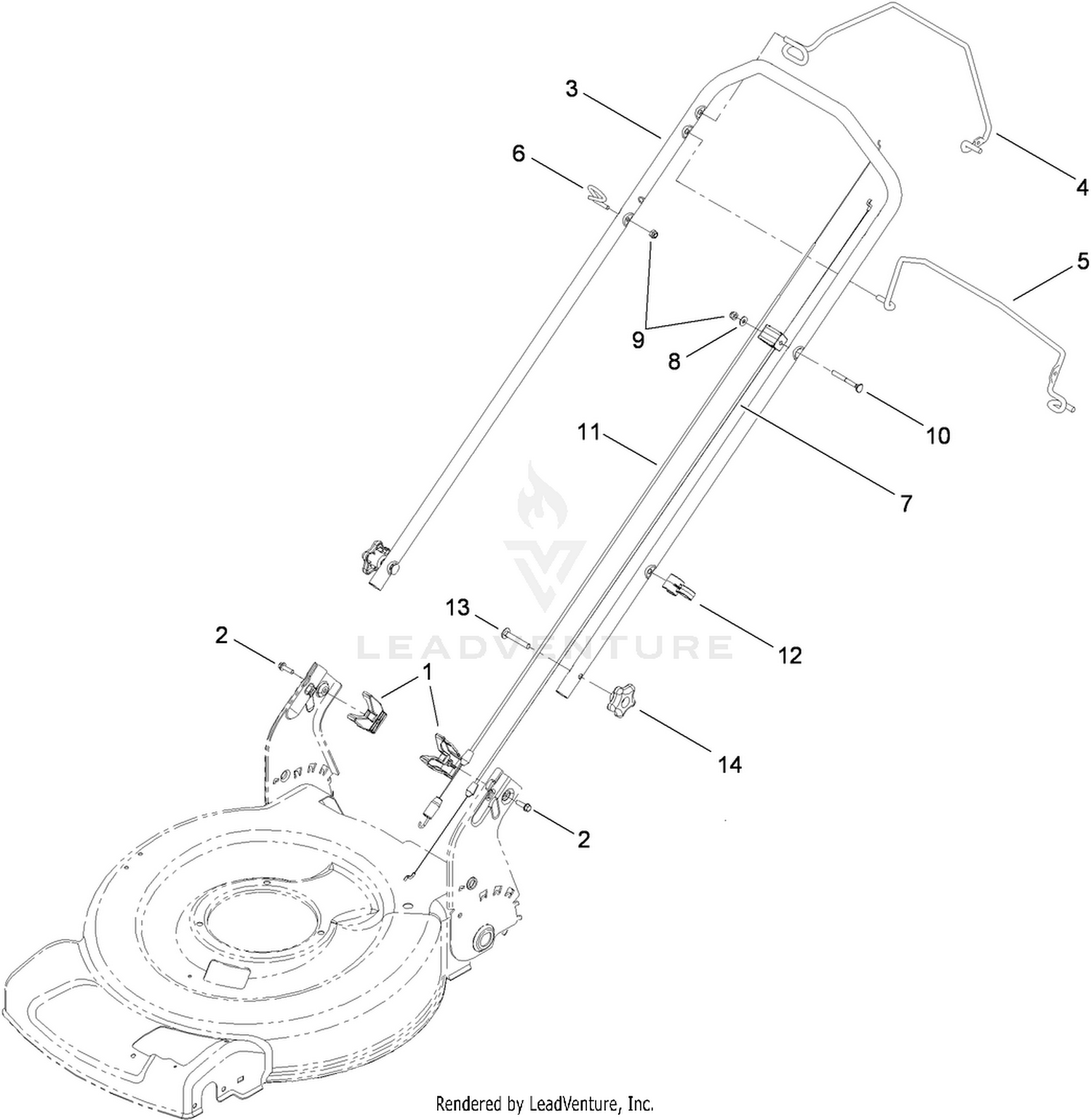

Handle Assembly
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 115-2866 | ANCHOR-BAG Price: $2.38 |
| 2 | 46-8091 | SCREW-HWH Price: $3.59 |
| 3 | 115-2872-05 | HANDLE-CONTOUR Price: $67.44 |
| 4 | 108-9790-03 | BAIL-TRACTION Price: $17.47 |
| 5 | 115-4561-03 | BAIL-BRAKE Price: $24.42 |
| 6 | 86-9671 | GUIDE-ROPE Price: $3.28 |
| 7 | 115-4579 | CABLE-BRAKE, 2 BAIL Price: $23.13 |
| 8 | 3256-1 | WASHER-FLAT Price: $0.39 |
| 9 | 3296-73 | NUT-LOCK, NI Price: $3.59 |
| 10 | 92-2270 | SCREW-HANDLE Price: $5.42 |
| 11 | 115-8436 | CABLE-TRACTION Price: $23.13 |
| 12 | 114-7988 | GUIDE-CABLE Price: $1.84 |
| 13 | 3230-6 | BOLT-CARR Price: $0.59 |
