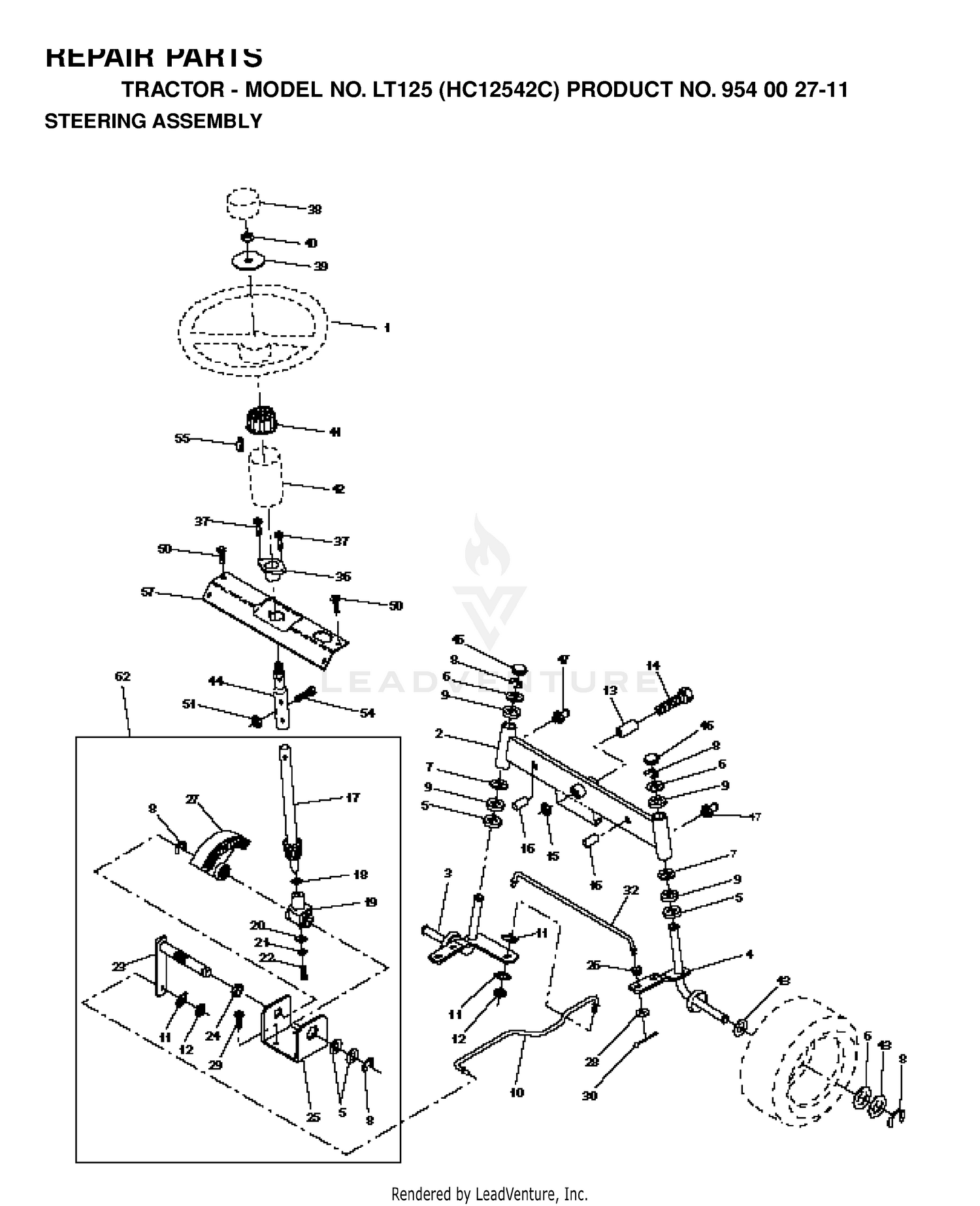

| Ref | Part Number | Description |
|---|
| 1 |
125-7246 |
FIE ASM Price: $4,354.76 |
| 1 |
532150546 |
KIT.WHEEL.STEERING This part replaces 532121472. Price: $64.99 |
| 3 |
532135227 |
SPINDLE LH Price: $15.39 |
| 4 |
532135228 |
SPINDLE RH Price: $12.97 |
| 5 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 6 |
532121748 |
WASHER Price: $3.99 |
| 7 |
819272016 |
WASHER Price: $3.99 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 9 |
532003366 |
BEARING.STEERING.COLUMN This part replaces 532124937. Price: $3.99 |
| 10 |
125-6991 |
COVER Price: $8.10 |
| 10 |
532130468 |
LINK.DRAG.SOL.BALL JT.20.064 Price: $64.99 |
| 11 |
125-6992 |
BOLT Price: $2.32 |
| 11 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 12 |
125-6932 |
KEY Price: $2.16 |
| 12 |
873610600 |
NUT Price: $2.99 |
| 13 |
532155134 |
KIT-AXLE This part replaces 532110438. Price: $13.26 |
| 14 |
874011056 |
Bolt, Hex Head 5/8-11 x 3-1/2 Price: $4.99 |
| 15 |
125-7135 |
FLANGE Price: $138.75 |
| 15 |
583612401 |
LOCKNUT M This part replaces 873901000. Price: $2.99 |
| 16 |
532132624 |
AXLE PIN Price: $2.42 |
| 17 |
531166901 |
SERVICE KIT SHAFT ASM ST This part replaces 532140176. Price: $42.99 |
| 18 |
532057079 |
THRUST WASHER Price: $1.99 |
| 19 |
532160395 |
STEERING SHAFT SUPPORT This part replaces 532124035. Price: $8.99 |
| 20 |
596582301 |
Washers This part replaces 532126684. Price: $2.99 |
| 21 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040400. Price: $2.99 |
| 22 |
532165857 |
SCREW.HX.WSH.HD This part replaces 871070410. Price: $3.99 |
| 23 |
532156365 |
PITMAN SHAFT ASSY This part replaces 532127501. Price: $29.99 |
| 24 |
532109816 |
NYLINER T (7283A) Price: $4.99 |
| 25 |
531152201 |
SERVICE KIT BRACKET BRKT This part replaces 532124036. Price: $12.99 |
| 26 |
532126847 |
BUSHING.DRAGLINK (2 2) This part replaces 543126847. Price: $4.99 |
| 27 |
532136874 |
GEAR.SECTOR Price: $69.99 |
| 28 |
819131414 |
WASHER This part replaces 819131416. Price: $3.99 |
| 29 |
534200501 |
BOLT HEX PATCH 3/8-16X3/4 This part replaces 817490612. Price: $1.99 |
| 30 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 32 |
532192757 |
ROD.TIE.WIRE.FORM This part replaces 532130465. Price: $29.99 |
| 36 |
532155107 |
STEERING BUSHING KIT This part replaces 532102803. Price: $6.99 |
| 37 |
817211008 |
Screw Slftp #10-16 x 1/2 Ty-Ab This part replaces 817431008. Price: $3.99 |
| 38 |
532150546 |
KIT.WHEEL.STEERING This part replaces 532126805. Price: $64.99 |
| 39 |
125-7156 |
STOPPER Price: $4.35 |
| 39 |
583789501 |
WASHER.13/32x2 3/8x12GA This part replaces 819133808. Price: $4.99 |
| 40 |
125-7154 |
O-RING Price: $3.54 |
| 40 |
873610600 |
NUT This part replaces 532124701. Price: $2.99 |
| 41 |
125-7154 |
O-RING Price: $3.54 |
| 41 |
532104820 |
ADAPTER-WHEEL LT Price: $13.99 |
| 42 |
125-7092 |
VALVE ASM Price: $132.31 |
| 42 |
532140216 |
BOOT STEERING SHAFT Price: $2.38 |
| 43 |
532121749 |
WASHER Price: $2.99 |
| 44 |
532154307 |
KIT.EXTENSION.STEERING.PLM/LR This part replaces 532140171. Price: $34.99 |
| 46 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 47 |
532183226 |
FITTING.GREASE.TAPERED This part replaces 532124836. Price: $4.99 |
| 50 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE This part replaces 817490412. Price: $3.99 |
| 51 |
125-7155 |
SPRING Price: $4.35 |
| 51 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 54 |
595305701 |
Screws This part replaces 874780520. Price: $3.99 |
| 55 |
532140285 |
CLIP Price: $2.99 |
| 57 |
532140172 |
SUPPORT STEERING SHAFT Price: $2.42 |
| 59 |
125-7157 |
PLUG Price: $10.27 |
| 60 |
125-6933 |
PLUG Price: $26.22 |
| 61 |
125-7136 |
GASKET Price: $4.06 |
| 62 |
125-7136 |
GASKET Price: $4.06 |
| 62 |
584371701 |
KIT.STEER.ASM.P/L This part replaces 532149686. Price: $119.99 |
| 63 |
125-7151 |
PLUG Price: $2.99 |
| 64 |
125-7137 |
LIFTER Price: $15.40 |
| 65 |
125-7102 |
TIMER SET Price: $86.43 |
| 66 |
125-7103 |
TIMER ASM Price: $79.04 |
| 69 |
125-7145 |
O-RING Price: $6.82 |
| 70 |
125-6934 |
RING Price: $3.44 |
| 71 |
125-6935 |
O-RING Price: $6.82 |
| 72 |
125-7202 |
O-RING Price: $7.02 |
| 73 |
125-7203 |
RING-BACK UP Price: $6.25 |
| 74 |
125-7138 |
GASKET Price: $24.57 |
| 75 |
125-6940 |
SPRING Price: $5.01 |
| 76 |
125-6941 |
CAP Price: $11.15 |
| 78 |
125-6942 |
SOLENOID VALVE ASM Price: $107.69 |
| 81 |
125-7146 |
GASKET Price: $2.49 |
| 101 |
125-7159 |
PISTON Price: $17.04 |
| 102 |
125-7140 |
SPRING Price: $10.85 |
| 103 |
125-7160 |
PLUG Price: $7.85 |
| 105 |
125-7148 |
PLUG Price: $3.26 |
| 106 |
125-7176 |
WASHER-SEAL Price: $7.31 |
| 107 |
125-7591 |
WASHER-SEAL Price: $5.94 |
| 108 |
125-7147 |
BOLT Price: $2.32 |
| 111 |
125-7142 |
O-RING Price: $3.95 |
| 112 |
125-7143 |
O-RING Price: $2.79 |
| 113 |
125-7176 |
WASHER-SEAL Price: $7.31 |
| 114 |
125-7179 |
WASHER-SPRING Price: $2.32 |
| 115 |
125-7181 |
PIN-PARALLEL Price: $2.93 |
| 116 |
125-7183 |
PIN-SPRING Price: $2.93 |
| 118 |
93-0400 |
O-RING Price: $4.45 |
| 119 |
125-7201 |
O-RING Price: $5.41 |
| 120 |
125-7202 |
O-RING Price: $7.02 |
| 121 |
125-7205 |
BOLT Price: $2.67 |
| 123 |
125-7233 |
BOLT Price: $5.80 |
| 124 |
125-7236 |
NUT Price: $3.48 |
| 127 |
125-7125 |
HARNESS ASM Price: $25.29 |
| 128 |
125-7126 |
HARNESS Price: $22.48 |
| 129 |
125-7033 |
CAP Price: $4.88 |
| 130 |
125-7158 |
JOINT Price: $10.82 |
| 131 |
125-7127 |
BRACKET Price: $3.81 |
| 132 |
125-7139 |
JOINT Price: $13.23 |
| 134 |
125-7141 |
FEED PUMP ASM Price: $303.99 |
| 135 |
125-7144 |
O-RING Price: $6.77 |
| 136 |
125-6945 |
JOINT Price: $19.46 |
| 137 |
125-7176 |
WASHER-SEAL Price: $7.31 |
| 138 |
125-7178 |
WASHER-SPRING Price: $4.09 |
| 139 |
125-7207 |
BOLT Price: $2.32 |
| 140 |
125-7235 |
NUT Price: $3.48 |
| 141 |
125-7238 |
PLUG Price: $2.71 |
| 143 |
125-7032 |
RETAINER Price: $109.88 |
