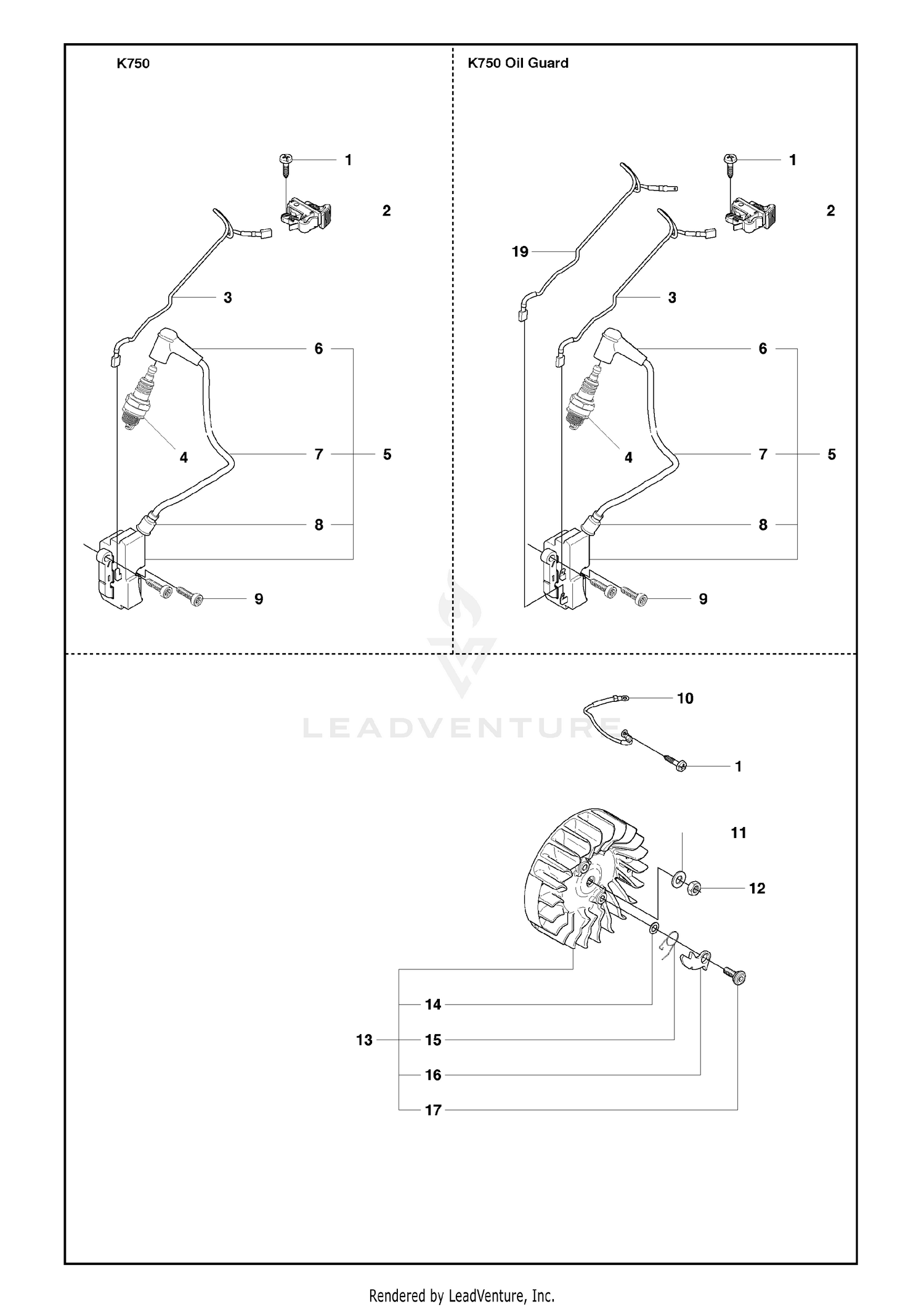

Ignition Module And Flywheel
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 22-8330 | PLUG Price: $64.59 |
| 1 | 503212810 | SCREW Price: $2.99 |
| 2 | 237-42 | O-RING Price: $2.78 |
| 2 | 506318604 | STOP SWITCH This part replaces 506318602. Price: $19.99 |
| 3 | 22-8340 | SPRING Price: $19.09 |
| 3 | 586497201 | CABLE STOP SWITCH This part replaces 506378402. Price: $5.99 |
| 4 | 22-8350 | BALL Price: $12.28 |
| 5 | 22-8370 | SEAT-VALVE Price: $88.05 |
| 6 | 22-8360 | PIN Price: $43.02 |
| 6 | 501485402 | SPARK PLUG CONN. KIT Price: $6.99 |
| 7 | 121-9070 | VALVE ASM This part replaces 43-1730. Price: $458.43 |
| 7 | 506387834 | CABLE STOP SWITCH Price: $5.99 |
| 8 | 22-8420 | SPOOL Price: $437.22 |
| 8 | 505277516 | INSULATING CAP Price: $11.99 |
| 9 | 22-8500 | O-RING Price: $18.87 |
| 9 | 503215320 | SCREW. Price: $3.99 |
| 10 | 22-8380 | RETAINER Price: $17.86 |
| 10 | 506378501 | CABLE Price: $11.99 |
| 11 | 22-8410 | SPRING Price: $17.61 |
| 11 | 503230101 | WASHER 8.4X16 Price: $3.99 |
| 12 | 23-3030 | SPACER Price: $33.93 |
| 12 | 503221011 | NUT M8X1 Price: $3.99 |
| 13 | 22-8480 | RING-SNAP Price: $49.87 |
| 14 | 503230042 | WASHER Price: $3.99 |
| 15 | 501634801 | SPRING Price: $3.99 |
| 16 | 501673203 | PAWL Price: $5.99 |
| 17 | 501819901 | SCREW M5X14 This part replaces 506006901. Price: $2.99 |
