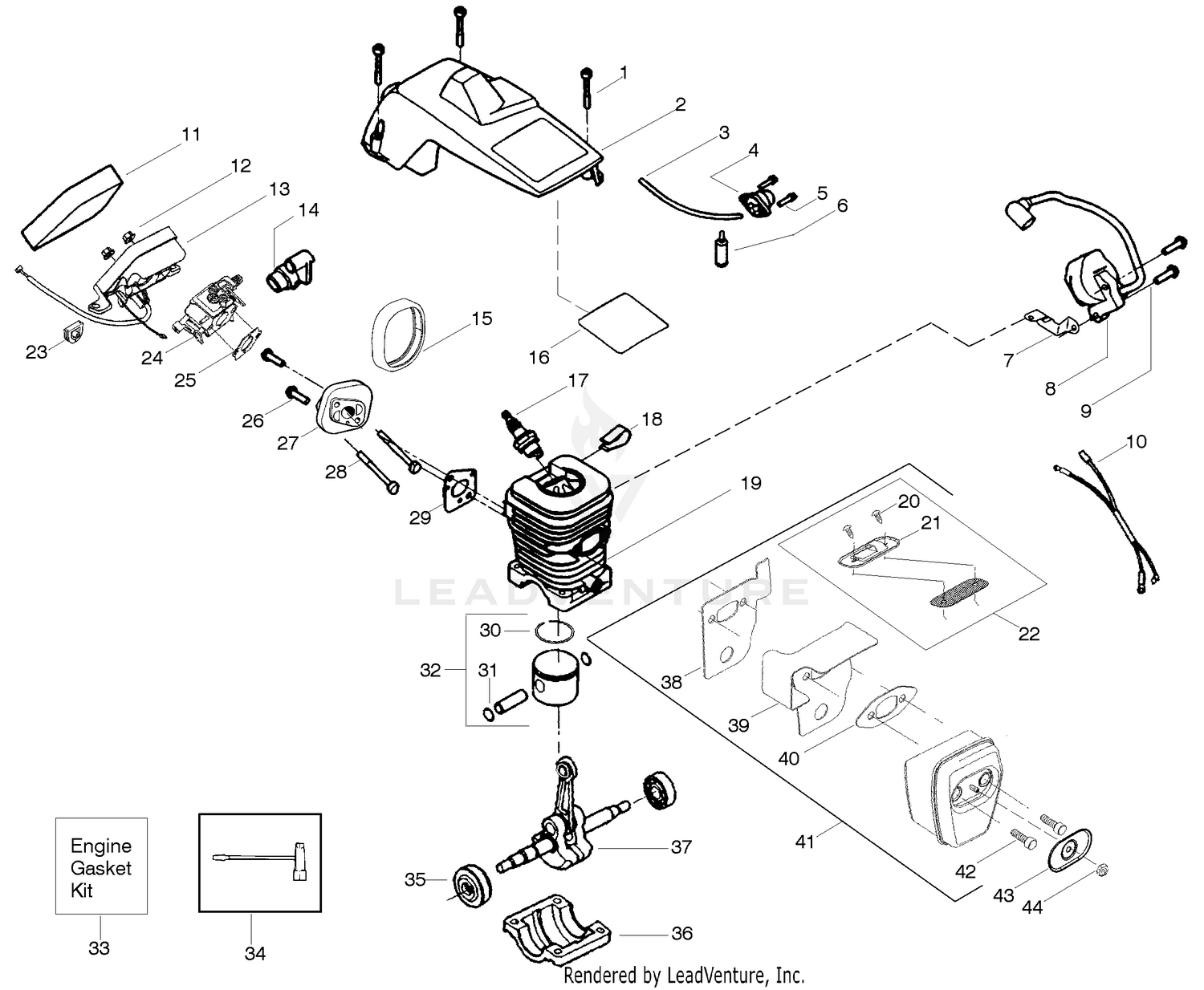

Engine

Engine

Parts (77)

RefPart NumberDescription
1 43-6840 HOUSING-LOWER This part replaces 33-4370. Price: $1,467.48
1 530016153 Screw Price: $1.99
2 72-9420 VENT This part replaces 21-8230. Price: $6.85
3 3219-2 NUT-HEX Price: $0.37
3 530069247 Kit-Fuel Line (Small) Price: $3.99
4 3255-8 WASHER-LOCK Price: $0.31
5 21-8280 DISCONTINUED Price: Call Us
5 530015780 Screw Price: $1.99
6 21-8270 PIN-DOWEL Price: $6.65
6 530095646 Assy-Fuel Pick-up Price: $2.99
7 21-7770 SCREW-GEAR, DRIVE Price: $1.97
7 530047442 Strap-Ground Price: $1.99
8 21-7670 CASE-DIFFERENTIAL Price: $687.90
8 530039198 Ignition Module Price: $29.99
9 21-7700 SHAFT-MATE, PINION Price: $54.05
9 530015814 Screw Price: $1.99
10 21-7720 WASHER-THRUST Price: $3.39
10 530057475 Assy-Wire Harness Price: $5.99
11 110-4143 KIT-REPLACEMENT, REVACYCLE GEARS This part replaces 24-8790. Price: $702.98
11 530037793 Foam- Air Filter Price: $1.99
12 110-4143 KIT-REPLACEMENT, REVACYCLE GEARS This part replaces 21-7690. Price: $702.98
12 530016101 Nut Price: $1.99
13 21-7730 WASHER-THRUST, PINION Price: $2.65
13 530057702 Assy- Air Box Price: $4.99
14 530035526 Grommet-Carb Adjust Price: Call Us
15 21-8080 DISCONTINUED Price: Call Us
15 530054144 Seal-Carb Adapter Price: $2.99
16 530055698 Reflector-Heat Price: $1.99
16 92-1773 SCREW-HHF This part replaces 324-23. Price: $3.05
17 12-5450 SCREW Price: $7.99
17 503235111 BPMR7A NGK SPARK PLUG This part replaces 952030150. Price: $3.99
18 21-7830 COVER-GEAR Price: $26.87
18 530016136 Clip-High Tension Lead Price: $1.99
19 530012552 Cylinder Price: $34.99
19 86-7230 GEAR-INPUT, TRANSMISSION This part replaces 21-8150. Price: $610.12
20 21-7820 DISCONTINUED Price: Call Us
20 530016351 Screw-Outlet cover Price: $1.99
21 21-8030 DISCONTINUED Price: Call Us
21 530054883 Cover - Outlet Price: Call Us
22 21-8040 DISCONTINUED Price: Call Us
23 21-8050 BRG SHIM .010 Price: $6.29
23 530047631 Grommet-Throttle Cable Price: $1.99
24 21-8060 DISCONTINUED Price: Call Us
24 545081885 Kit-Carburetor (Walbro-WT-89) This part replaces 530071820. Price: $22.99
25 28-0640 DISCONTINUED Price: Call Us
25 530069608 Gasket-Carb. (kit) Price: $5.99
26 530016386 Screw Price: $5.99
26 99-5691 SCREW W/WASHER This part replaces 28-0660. Price: $7.18
27 254-90 BEARING-CUP Price: $11.29
27 530049700 Carb. Adapter Price: $3.99
28 21-8010 BRG CONE Price: $30.15
28 530016187 Screw Price: $1.99
29 32151-83 RING-SNAP This part replaces 32120-32. Price: $0.34
29 530069608 Gasket- Adaptor(kit) Price: $5.99
30 21-7850 PLUG-CUP Price: $23.35
30 545160401 Ring-Piston This part replaces 530038729. Price: $2.99
31 21-7870 DISCONTINUED Price: Call Us
31 530015697 Retainer-Piston Pin Price: $1.99
32 21-8020 SPACER-BEARING Price: $28.84
33 21-8070 DISCONTINUED Price: Call Us
34 254-66 CUP-BEARING, ROLLER Price: $17.92
34 530031163 Bar Wrench This part replaces 530031135. Price: $4.99
35 254-65 BEARING-ROLLER, CONE Price: $62.13
35 530056363 Assy-Seal & Bearing Price: $11.99
36 32121-15 PIN-ROLL This part replaces 21-7710. Price: $1.60
36 530037935 Cap-Crankcase Price: $8.99
37 21-8090 SHIM-BEARING, DIFFERENTIAL (.003) Price: $1.09
37 545113101 CRANKSHAFT ASSY This part replaces 530047062. Price: $54.99
38 21-8100 SHIM-BEARING, DIFFERENTIAL (.005) Price: $3.46
38 530054885 Backplate Price: $5.99
39 21-8110 SHIM-BEARING, DIFFERENTIAL (.010) Price: $3.73
39 530054880 Guide-Outlet Price: $5.99
40 21-8120 SHIM-BEARING, DIFFERENTIAL (.030) Price: $5.43
40 530069608 Gasket-Muffler(kit) Price: $5.99
42 530016338 Bolt-Muffler Price: $1.99
43 530055586 Cover-Bolt Price: $0.99
44 574266401 NUT 10MM BRASS This part replaces 530016359. Price: $1.99
