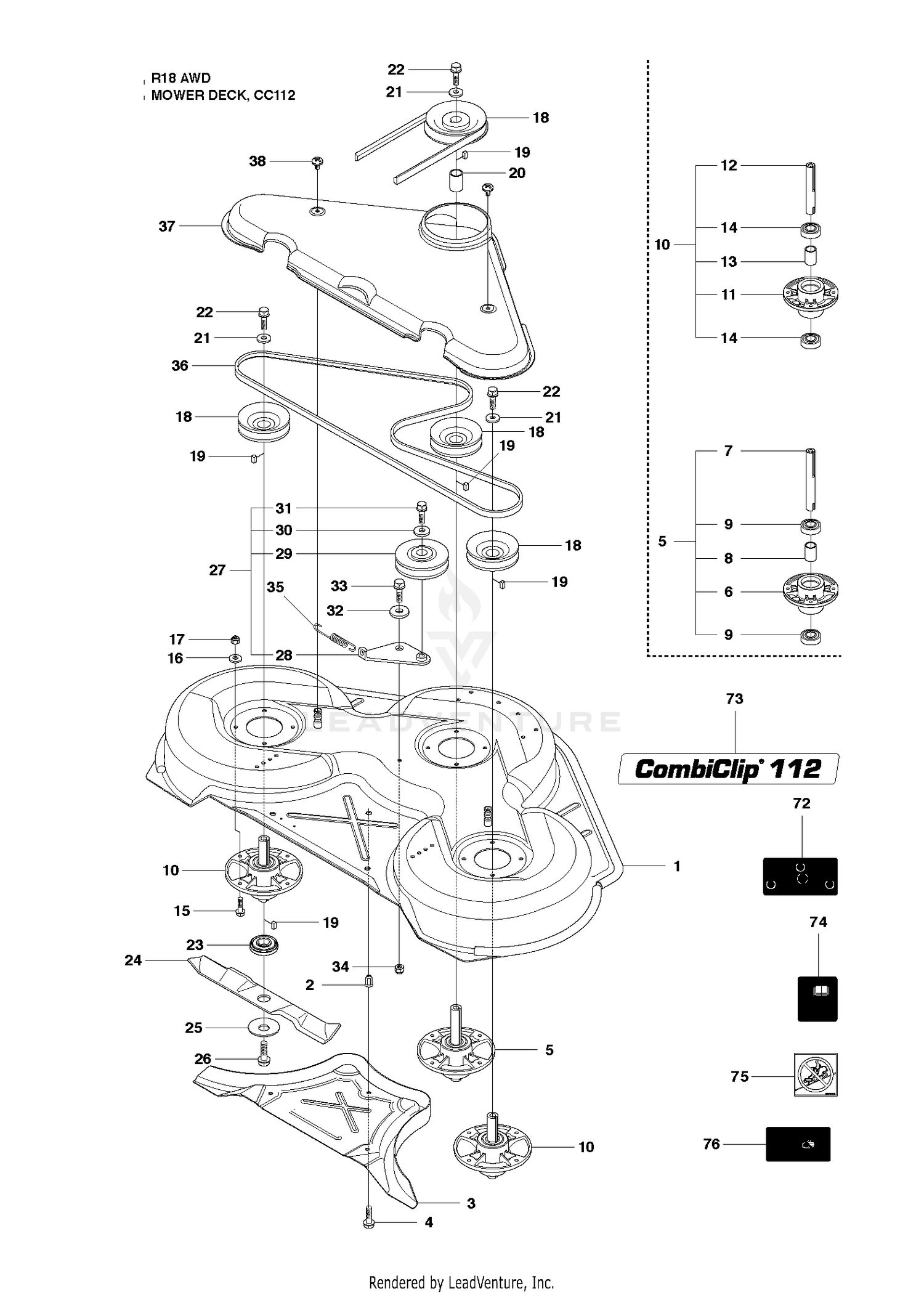

MOWER DECK / CUTTING DECK 4
Parts (68)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 110-5522 | FITTING-ELBOW, 90 Price: $85.70 |
| 1 | 574209501 | CUTTING DECK Price: $229.99 |
| 2 | 353-987 | FITTING-ELBOW, 90 Price: $74.72 |
| 2 | 506916201 | NUT Price: $4.99 |
| 3 | 2412-129 | CLAMP-HOSE Price: $2.10 |
| 3 | 544449301 | PLUG Price: $69.99 |
| 4 | 110-5524 | HOSE-RETURN Price: $20.57 |
| 4 | 506570104 | BOLT Price: $4.99 |
| 5 | 3290-379 | TIE-CABLE Price: $0.31 |
| 5 | 576384101 | BLADE HOUSING ASSY This part replaces 544065902. Price: $84.99 |
| 6 | 576384201 | BEARING HOUSING This part replaces 544067801. Price: $29.99 |
| 6 | 68-6150 | BREATHER Price: $27.22 |
| 7 | 354-95 | FITTING-STRAIGHT Price: $6.75 |
| 7 | 544067901 | SHAFT Price: $39.99 |
| 8 | 92-2379 | CLAMP-HOSE Price: $0.34 |
| 9 | 110-9662 | HOSE-FUEL Price: $31.52 |
| 9 | 738230434 | BEARING Price: $17.99 |
| 10 | 32180-030 | CLIP-TIE Price: $4.19 |
| 10 | 576384102 | BLADE HOUSING ASSY This part replaces 544065901. Price: $79.99 |
| 11 | 110-8237 | HYD RESERVOIR ASM Price: $1,078.14 |
| 11 | 576384201 | BEARING HOUSING This part replaces 544067801. Price: $29.99 |
| 12 | 2412-98 | CLAMP-HOSE Price: $1.39 |
| 12 | 535428702 | AXLE Price: $49.99 |
| 13 | 120-0017 | STRIP-FOAM Price: $4.07 |
| 13 | 535428801 | SPACER Price: $7.99 |
| 14 | 2412-34 | CLAMP-HOSE Price: $2.14 |
| 14 | 738230434 | BEARING Price: $17.99 |
| 15 | 110-5526 | HOSE-SUCTION Price: $69.79 |
| 15 | 535423801 | BOLT Price: $4.99 |
| 16 | 32144-14 | SCREW-HWHTF Price: $4.29 |
| 16 | 734116401 | WASHER BRB 8.4X17 Price: $5.99 |
| 17 | 110-5529-03 | SUPPORT-RESERVOIR Price: $22.51 |
| 17 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 18 | 109-0299 | HOSE-FUEL Price: $12.99 |
| 18 | 506922101 | PULLEY Price: $29.99 |
| 19 | 112-6365 | DIPSTICK Price: $73.81 |
| 19 | 506533501 | KEY Price: $3.99 |
| 20 | 544068002 | SPACER Price: $9.99 |
| 20 | 94-8166 | O-RING Price: $3.76 |
| 21 | 734117441 | WASHER Price: $3.99 |
| 21 | 93-7498 | PLUG-PLASTIC Price: $25.26 |
| 22 | 544114101 | SCREW Price: $3.99 |
| 22 | 94-5625 | HOSE Price: $13.26 |
| 23 | 353-979 | FITTING-STR Price: $12.62 |
| 23 | 535504202 | ADAPTER Price: $19.99 |
| 24 | 2412-108 | CLAMP-WORM Price: $1.29 |
| 24 | 504188110 | BLADE Price: $32.99 |
| 25 | 340-4 | FITTING-STRAIGHT Price: $11.58 |
| 25 | 588145601 | WASHER This part replaces 506792301. Price: $6.99 |
| 26 | 110-5532 | TUBE Price: $206.66 |
| 26 | 544114101 | SCREW Price: $3.99 |
| 27 | 340-7 | FITTING-STRAIGHT Price: $14.00 |
| 27 | 586966601 | BELT TENSIONER ASSY KIT This part replaces 506540701. Price: $59.99 |
| 28 | 586966601 | BELT TENSIONER ASSY KIT This part replaces 506519501. Price: $59.99 |
| 29 | 506532701 | PULLEY Price: $39.99 |
| 30 | 734116441 | SPACER Price: $3.99 |
| 31 | 506558302 | BOLT Price: $3.99 |
| 32 | 584288604 | Washers This part replaces 506918702. Price: $3.99 |
| 33 | 725245171 | SCREW Price: $2.08 |
| 34 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 35 | 506533101 | SPRING Price: $9.99 |
| 36 | 594978001 | BELT This part replaces 535411901. Price: $59.99 |
| 37 | 544096203 | BELT COVER C112 HUSQVARNA-GREY This part replaces 544096201. Price: $44.99 |
| 38 | 544400501 | SCREW Price: $3.99 |
| 72 | 506789701 | Decal Price: $21.55 |
| 73 | 574210303 | Price: Call Us |
| 74 | 506929001 | DECAL Price: $3.99 |
| 76 | 574510001 | DECAL Price: $2.99 |
