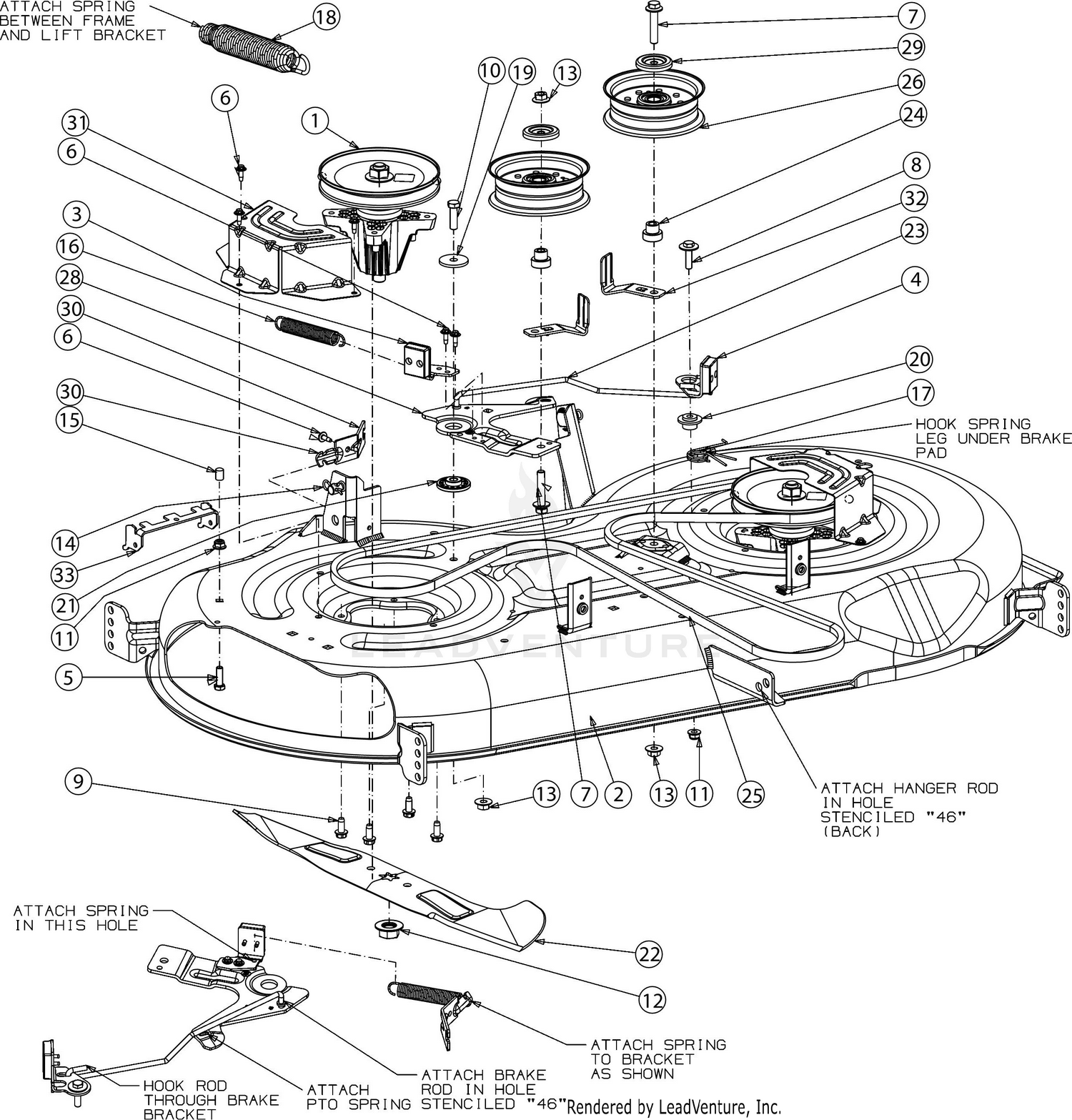

| Ref | Part Number | Description |
|---|
| 1 |
918-06977A |
PULLEY & SPINDLE ASSEMBLY Price: $137.52 |
| 3 |
728-0175 |
RIVOT Price: $4.04 |
| 3 |
761-05007 |
DECK BRAKE PAD Price: $9.20 |
| 3 |
983-05182B |
DECK BRAKE ASSEMBLY (RH) This part replaces 983-05182. Price: $87.42 |
| 4 |
728-0175 |
RIVOT Price: $4.04 |
| 4 |
753-09904A |
DECK BRAKE ASSEMBLY KIT This part replaces 983-05183. Price: $93.12 |
| 4 |
761-05007 |
DECK BRAKE PAD Price: $9.20 |
| 5 |
710-0376 |
SCREW 5/16-18 X 1.0 GR5 Price: $3.66 |
| 6 |
710-06133 |
SCREW M6-1 X .625 Price: $3.08 |
| 7 |
710-06178 |
SCREW 3/8-16 X 2.0 Price: $5.52 |
| 8 |
710-06213 |
SCREW 5/16-18X1.25 GR 5 Price: $5.52 |
| 9 |
710-1260A |
SCREW 5/16-18 X .750 Price: $3.34 |
| 10 |
710-3005 |
SCREW 3/8-16 X 1.25 GR5 Price: $3.61 |
| 11 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 12 |
712-0417A |
HEX NUT Price: $6.50 |
| 13 |
712-04217 |
FLANGE LOCK NUT Price: $3.75 |
| 14 |
714-05005 |
BOW TIE COTTER PIN Price: $4.24 |
| 15 |
720-05010 |
VINYL CAP Price: $3.70 |
| 16 |
732-04629 |
EXTENSION SPRING Price: $25.15 |
| 17 |
732-05151A |
TORSION SPRING Price: $3.70 |
| 18 |
732-05241A |
LIFT ASSIST SPRING (SMALL) This part replaces 732-05241. Price: $18.42 |
| 19 |
736-0227 |
WASHER:FLAT: .390 x 1.50 x .134 This part replaces 936-0227. Price: $5.78 |
| 20 |
738-05088 |
SHOULDER SPACER .750 X .145 Price: $3.86 |
| 21 |
738-05099 |
SHOULDER SPACER Price: $6.47 |
| 23 |
747-06452 |
DECK BRAKE ROD Price: $12.90 |
| 24 |
748-05029A |
SHOULDER SPACER Price: $4.19 |
| 25 |
954-05022A |
V-BELT A SEC X 108.3 Price: $59.35 |
| 26 |
756-05034A |
IDLER PULLEY 4.50" DIA This part replaces 756-05034. Price: $40.14 |
| 29 |
783-08389 |
IDLER PULLEY CAP Price: $5.23 |
| 30 |
783-08406-0637 |
ENGAGEMENT CABLE BRACKET Price: $8.29 |
| 31 |
783-08547-0637 |
DECK BELT COVER 46" Price: $13.03 |
| 32 |
783-08690A-0637 |
BELT KEEPER (POWDER BLACK) This part replaces 783-08690-0637. Price: $11.37 |
