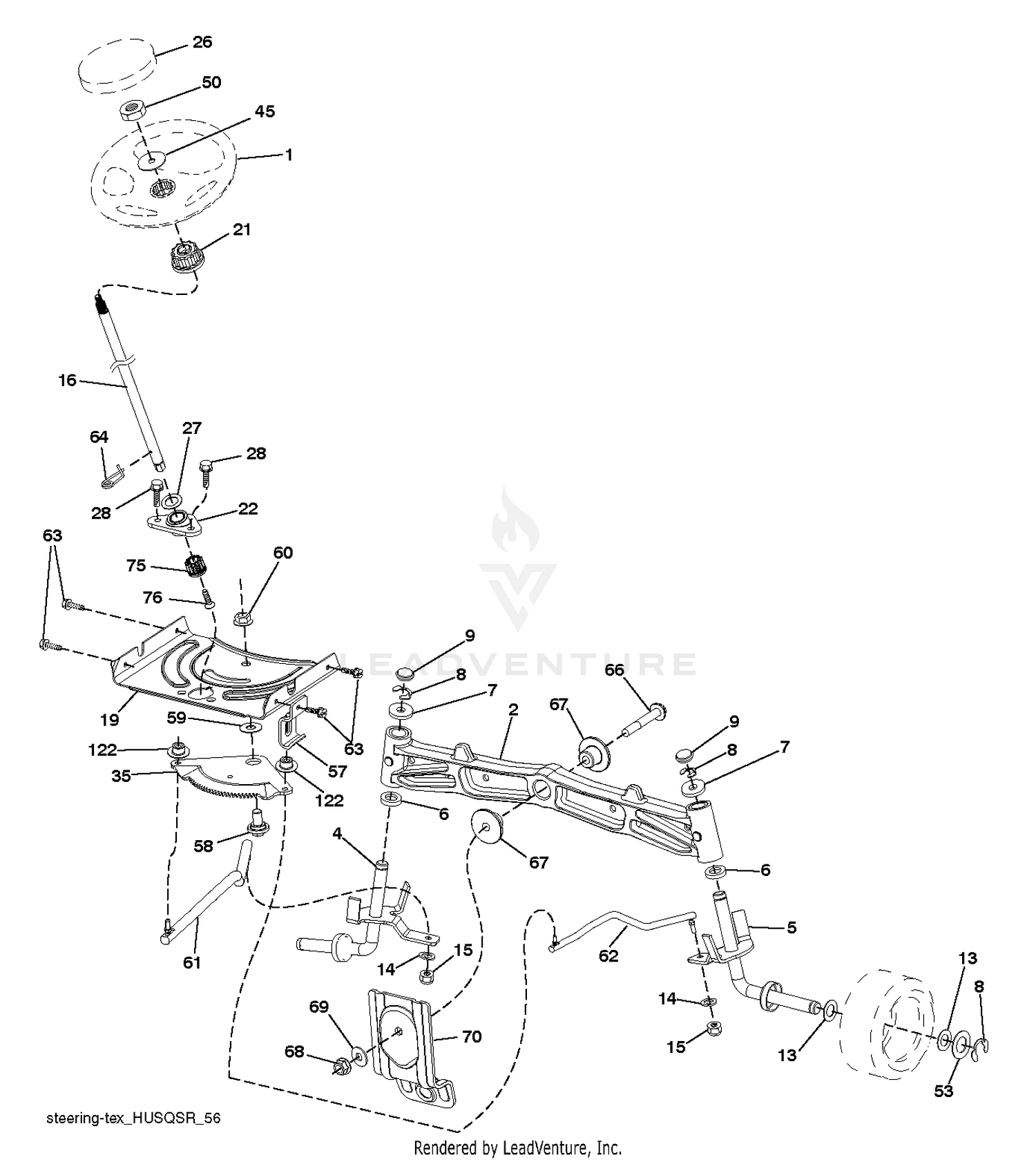

| Ref | Part Number | Description |
|---|
| 1 |
33104-040 |
SCREW-HHF Price: $1.36 |
| 1 |
532439740 |
WHEEL.STEER.HUSQ.SR.498.OVMLD Price: $69.99 |
| 2 |
532413591 |
AXLE.SVC.ASM CAST IRON.TEX This part replaces 532195968. Price: $119.99 |
| 2 |
93-5547 |
BUSHING-NYLON Price: $6.15 |
| 3 |
93-5961 |
BOOT-LEVER Price: $56.35 |
| 4 |
233-37 |
KNOB Price: $31.99 |
| 5 |
33103-016 |
SCREW-HHF Price: $5.18 |
| 5 |
538691201 |
SPINDLE.WLDMT.RH.15INTIRE.X431 This part replaces 532403088. Price: $19.99 |
| 6 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 6 |
93-5270 |
SWITCH-PTO Price: $201.01 |
| 7 |
27-2360 |
SWITCH Price: $46.56 |
| 7 |
532121748 |
WASHER Price: $3.99 |
| 8 |
218-447 |
WASHER-LOCK Price: $3.79 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 9 |
218-446 |
NUT-HEX Price: $6.09 |
| 9 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 10 |
62-7770 |
KEY-IGNITION Price: $4.39 |
| 13 |
532121749 |
WASHER Price: $2.99 |
| 14 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 14 |
93-5481 |
CLUSTER-LIGHT, WARNING Price: $112.98 |
| 15 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 15 |
93-5478 |
CLUSTER-WARNING LIGHT Price: $162.98 |
| 16 |
587738904 |
KIT.SRVC.STEERINGSHAFT.2HISHFT This part replaces 587016002. Price: $34.99 |
| 16 |
76-9060 |
GAUGE-TEMPERATURE Price: $110.89 |
| 17 |
93-5425 |
DECAL-CONTROL, DL Price: $47.04 |
| 18 |
43-6280 |
DISCONTINUED Price: Call Us |
| 19 |
43-6420 |
BEZEL Price: $57.54 |
| 19 |
531169101 |
SERVICE KIT PLATE PLATE.STEER. This part replaces 532194729. Price: $19.99 |
| 20 |
95-2649 |
DISCONTINUED Price: Call Us |
| 21 |
587738905 |
KIT.SRVC.STEERINGSHAFT.ADAPTER This part replaces 586840201. Price: $7.99 |
| 21 |
93-5376-03 |
PLATE-CONTROL, DSL Price: $18.07 |
| 22 |
120-2244 |
HOURMETER This part replaces 66-2950. Price: $48.06 |
| 22 |
587738901 |
KIT.SRVC.STEERINGSHAFT.LWRBSHG This part replaces 585029802. Price: $14.99 |
| 23 |
218-498 |
NUT-LOCK Price: $0.68 |
| 24 |
72-9760 |
SWITCH Price: $179.11 |
| 25 |
66-2940 |
GAUGE-FUEL Price: $178.34 |
| 26 |
233-39 |
KNOB-CONTROL Price: $16.12 |
| 26 |
532439743 |
INSERT.CAP.WHL.STRG.HUSQ.PREM Price: $8.99 |
| 27 |
3255-20 |
WASHER-LOCK Price: $0.25 |
| 27 |
596933401 |
Washers This part replaces 819211616. Price: $2.99 |
| 28 |
3217-25 |
NUT-HEX Price: $0.25 |
| 28 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 30 |
3256-14 |
WASHER-FLAT Price: $0.39 |
| 31 |
3219-14 |
NUT-HEX Price: $0.25 |
| 32 |
3253-2 |
WASHER-LOCK Price: $0.25 |
| 33 |
93-5350 |
CABLE-THROTTLE Price: $45.20 |
| 34 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 35 |
532194732 |
GEAR.SECTOR.PLATE.DDL. Price: $27.99 |
| 35 |
95-1579 |
NUT-LOCK Price: $1.05 |
| 36 |
93-5476 |
SWITCH-CARLING Price: $85.47 |
| 37 |
93-5373 |
LEVER-THROTTLE Price: $43.26 |
| 38 |
66-2920 |
WASHER-FRICTION Price: $2.58 |
| 39 |
29-9550 |
CLAMP-CABLE Price: $16.44 |
| 40 |
33003-00 |
NUT-HF Price: $0.25 |
| 41 |
33103-016 |
SCREW-HHF Price: $5.18 |
| 42 |
33024-00 |
NUT-LOCK, NI Price: $0.75 |
| 43 |
3290-329 |
SCREW-PPH Price: $0.22 |
| 44 |
111332 |
SWITCH Price: $10.99 |
| 45 |
115-5357-03 |
BRACKET-JOYSTICK This part replaces 93-5991-03. Price: $35.61 |
| 45 |
587016401 |
WASHER.3/8ID.2-3/8OD.12GA.PLTD Price: $2.99 |
| 46 |
3290-354 |
NUT-SPEED Price: $9.99 |
| 47 |
33023-00 |
NUT-LOCK Price: $0.25 |
| 48 |
93-5512 |
SPACER Price: $3.80 |
| 49 |
105-8289 |
SPRING-TORSION This part replaces 93-5509. Price: $15.05 |
| 50 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 50 |
93-5515-03 |
LEVER ASM Price: $177.00 |
| 51 |
61-2990 |
SPACER Price: $33.75 |
| 53 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 57 |
532197246 |
BRKT.UPSTOP.GT/LT.TEX Price: $5.99 |
| 58 |
532194747 |
BOLT.SHOULDER.SECTOR.P Price: $7.99 |
| 59 |
532194748 |
WASHER.THURST.SECTOR.S Price: $4.99 |
| 60 |
583612801 |
NUT.FLANGE.LOCK.5/8-11 This part replaces 873971000. Price: $3.99 |
| 61 |
597047802 |
Links This part replaces 532194740. Price: $11.99 |
| 62 |
597047902 |
Links This part replaces 532194741. Price: $11.99 |
| 63 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 64 |
532199849 |
RETAINER.CLIP.SPRING.S Price: $4.99 |
| 66 |
871020748 |
BOLT HEX FGHD 7/16-14 X 3 SERR Price: $4.99 |
| 67 |
529496302 |
BUSHING, AXLE This part replaces 532194737. Price: $2.99 |
| 68 |
873900700 |
NUT.LOCK.FLANGE.7/16 Price: $3.99 |
| 69 |
532199162 |
WASHER.1.5X.505X.118 Price: $4.99 |
| 70 |
585338802 |
BRACKET FRONT DECK SUSPENSION This part replaces 532196197. Price: $14.99 |
| 75 |
587738906 |
KIT.SRVC.STEERINGSHAFT.PINION This part replaces 580683701. Price: $4.99 |
| 76 |
580683601 |
SCREW HEAD SOCKET LRVB Price: $2.99 |
| 122 |
583576601 |
CAP.GEAR.SECTOR.TEX This part replaces 532444962. Price: $4.99 |
