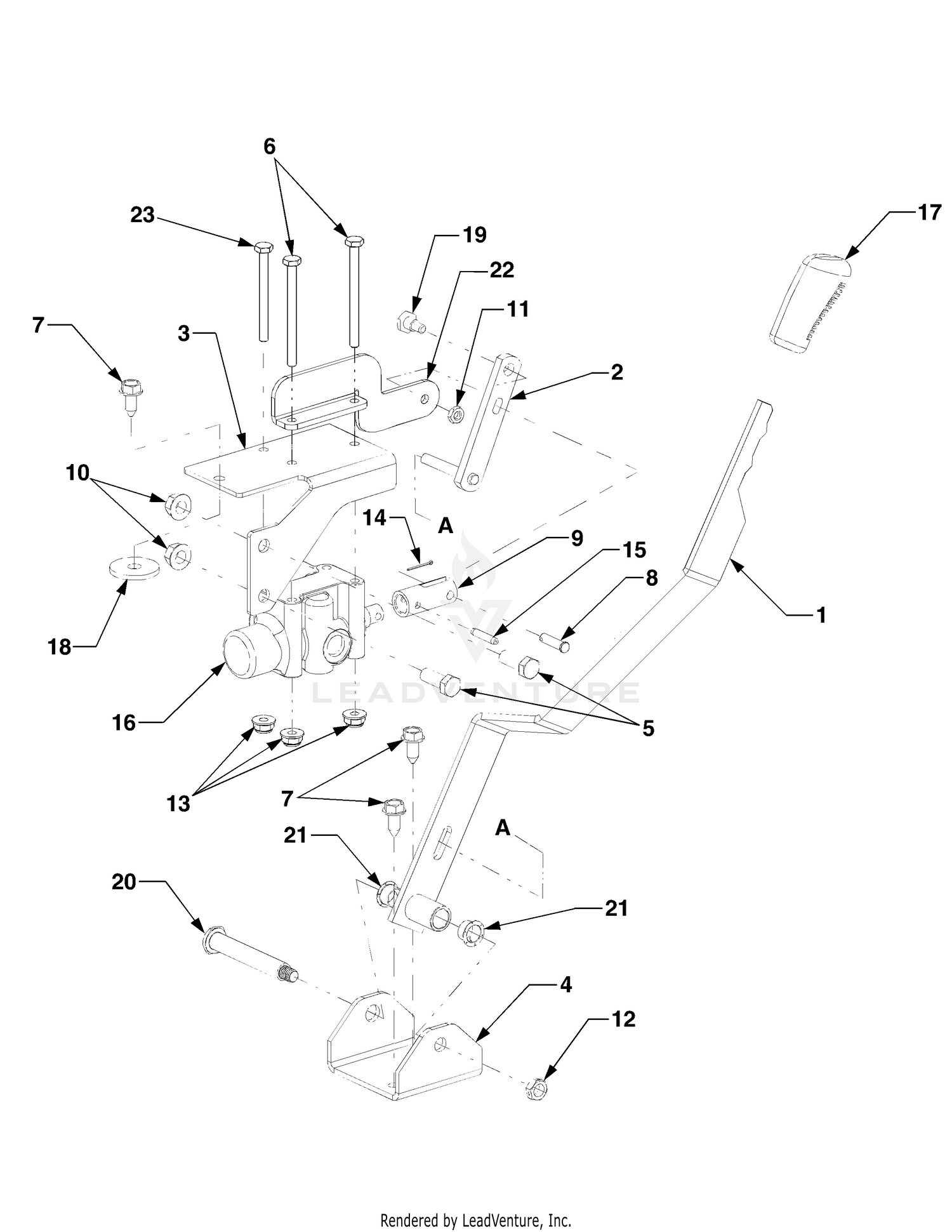

| Ref | Part Number | Description |
|---|
| 1 |
532186093 |
WHEEL.STEERING.LEGND2.GRY This part replaces 532193943. Price: $89.99 |
| 1 |
903-04032 |
LIFT HANDLE CONTROL Not Available This part replaces 603-04032. Price: |
| 2 |
532193542 |
AXLE.ASM.LT.CAST.LGHTWGHT This part replaces 532184706. Price: $119.99 |
| 2 |
903-04033 |
VALVE LINK PLATE Not Available This part replaces 603-04033. Price: |
| 3 |
596873901 |
KIT SPINDLE ASM.PNT.LH.15 This part replaces 532169840. Price: $14.99 |
| 3 |
703-05090-0637 |
VALVE MOUNTING BRACKET Not Available Price: |
| 4 |
596873801 |
KIT SPINDLE ASM.PNT.RH.15" This part replaces 532169839. Price: $27.99 |
| 4 |
703-05038 |
BRACKET, HANDLE PIVOT Not Available Price: |
| 5 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 5 |
710-0514 |
Screw, Hex Cap, 3/8-16 x 1.0 GR5 Price: $3.78 |
| 6 |
532121748 |
WASHER Price: $3.99 |
| 6 |
710-04370 |
Screw, Hex Cap 1/4-20 x 3.0 GR5 Price: $3.66 |
| 7 |
710-1260A |
Screw, Hex Wash, Hd Tapp 5/16-18 x .75 Price: $3.34 |
| 8 |
711-04214 |
Pin, Clevis, .25 x .9375 Price: $5.44 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 9 |
711-1614 |
VALVE CONNECT LINK Not Available Price: |
| 10 |
532175121 |
DRAGLINK.15".TIRES.2001 Price: $59.99 |
| 10 |
712-04065 |
Nut, Hex Flange Nylon Lock, 3/8-16 GRF Price: $3.68 |
| 11 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 11 |
912-0298 |
Jam Nut, 1/4-20 This part replaces 712-0298. Price: $5.38 |
| 12 |
712-0266A |
Nut, Jam Lock, 3/8-16 This part replaces 712-0266. Price: $3.43 |
| 12 |
873940800 |
NUT.HEX.1/2-20 Price: $3.99 |
| 13 |
532136518 |
TUBE, PIVOT AXLE Price: $7.99 |
| 13 |
712-04064 |
Nut, Hex Flange Nylon Lock 14-20 GRF Price: $3.64 |
| 14 |
714-0127 |
COTTER PIN-1/16 DIA x .75 Not Available Price: |
| 15 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
| 15 |
715-0120 |
Pin, Spirol, 3/16 x 1.0 Price: $9.14 |
| 16 |
718-3130 |
HYDRAULIC LIFT VALVE Not Available Price: |
| 17 |
532177883 |
SHAFT ASM STRG Price: $104.99 |
| 17 |
731-3321 |
Grip, Handle Price: $18.83 |
| 18 |
736-0258 |
Washer, Flat, .385 x 1.0 x .135 Price: $3.93 |
| 19 |
738-0137A |
Screw, Shoulder, .34 x .285 Price: $9.83 |
| 20 |
738-0215A |
Screw, Shoulder, .498 x 2.99 Not Available Price: |
| 21 |
741-0491 |
Bearing, Nylon Flange .5 ID Price: $4.39 |
| 22 |
703-05545-0637 |
VALVE LINK MOUNTING BRACKET (POWDER BLACK) Not Available Price: |
| 26 |
532126847 |
BUSHING.DRAGLINK (2 2) Price: $4.99 |
| 28 |
819131414 |
WASHER This part replaces 819131416. Price: $3.99 |
| 29 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 30 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 32 |
532192757 |
ROD.TIE.WIRE.FORM Price: $29.99 |
| 36 |
532155108 |
KIT.BUSHING.STEERING. This part replaces 532155105. Price: $6.99 |
| 37 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 38 |
532193652 |
INSERT.CAP.STRG.WH.GRAY Price: $11.99 |
| 39 |
819183812 |
WASHER 9/16"ID, 2 3/8"OD Price: $7.99 |
| 40 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 41 |
587738905 |
KIT.SRVC.STEERINGSHAFT.ADAPTER This part replaces 532186737. Price: $7.99 |
| 43 |
532121749 |
WASHER Price: $2.99 |
| 46 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 65 |
532414736 |
SPACER.BRACE.AXLE This part replaces 532160367. Price: $5.99 |
| 67 |
872110618 |
BOLT CARRIAGE Price: $4.99 |
| 68 |
531167401 |
SERVICE KIT BRACE.AXLE.1 This part replaces 532169827. Price: $19.99 |
| 71 |
531167801 |
SERVICE KIT STEERING ASM This part replaces 532175146. Price: $139.99 |
| 82 |
531170201 |
SERVICE.KIT BRACKET This part replaces 532169835. Price: $19.99 |
| 87 |
532173966 |
WASHER, FLAT .781 X 1 1/2" Price: $4.99 |
| 88 |
532175118 |
BOLT, SHOULDER 7/16-20 Price: $4.99 |
| 91 |
532175553 |
CLIP.STEERING Price: $9.99 |
