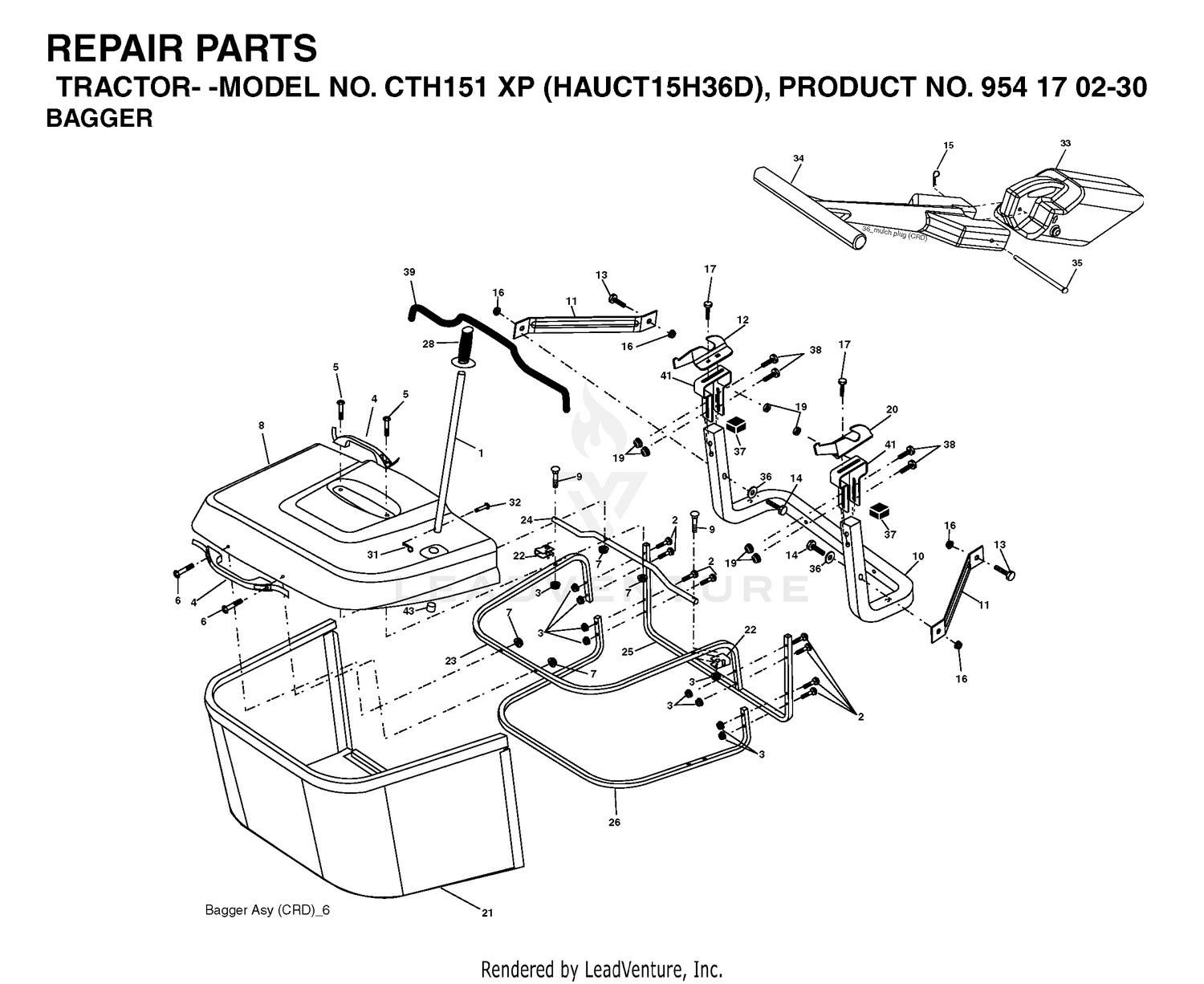

| Ref | Part Number | Description |
|---|
| 1 |
217-111 |
CAP-HUB This part replaces 242-55. Price: $22.31 |
| 2 |
3272-17 |
PIN-COTTER Price: $1.79 |
| 2 |
872140416 |
Bolt Carriage 1/4-20 x 2.0 Gr.5 Price: $4.99 |
| 3 |
32136-1 |
NUT-SLOTTED Price: $3.46 |
| 3 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 4 |
3256-29 |
WASHER-FLAT Price: $2.59 |
| 4 |
532169916 |
HANDLE.BAGGER.W/LVRS.BLK.CRD Price: $9.99 |
| 5 |
254-62 |
BEARING-ROLLER, CONE Price: $12.61 |
| 5 |
874981024 |
SCREW.PAN.HEAD Price: $4.99 |
| 6 |
115-9471 |
BEARING-CUP This part replaces 254-61. Price: $6.46 |
| 6 |
532750029 |
SCREW This part replaces 874981032. Price: $4.99 |
| 7 |
217-103 |
BOLT-WHEEL Price: $2.51 |
| 7 |
873401000 |
NUT Price: $6.99 |
| 8 |
231-118 |
DISCONTINUED This part replaces 231-76. Price: Call Us |
| 8 |
532441543 |
COVER.PNT.BGR.CRD.WSLOTS.MS668 This part replaces 532181095. Price: $199.99 |
| 9 |
232-34 |
DISCONTINUED Price: Call Us |
| 9 |
872140418 |
Bolt Carriage 1/4-20 x 2.25d x Gr.5 Price: $7.99 |
| 10 |
583110201 |
TUBE.SUPPORT.BAGGER.CRD This part replaces 532181282. Price: $59.99 |
| 10 |
62-3220 |
DISCONTINUED This part replaces 241-117. Price: Call Us |
| 11 |
242-54 |
HUB Price: $168.31 |
| 11 |
532165719 |
BRACKET.SUPPORT.UPPER.BAG.CRD Price: $9.99 |
| 12 |
254-66 |
CUP-BEARING, ROLLER Price: $17.92 |
| 12 |
583173701 |
BRKT.PIVOT.LH.CRD This part replaces 532188848. Price: $7.99 |
| 13 |
254-65 |
BEARING-ROLLER, CONE Price: $62.13 |
| 13 |
596136001 |
Bolts This part replaces 872110606. Price: $3.99 |
| 14 |
253-127 |
SEAL Price: $74.45 |
| 14 |
596564404 |
Bolts This part replaces 874520636. Price: $2.99 |
| 15 |
325-3 |
SCREW-HH Price: $1.49 |
| 15 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 16 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 16 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 17 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 17 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 18 |
13-6120 |
DISCONTINUED Price: Call Us |
| 19 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 19 |
67-5360 |
DECAL-DANGER This part replaces 13-6470. Price: $14.99 |
| 20 |
13-6240 |
ADJUSTMENT ROD WA Price: $65.88 |
| 20 |
532188847 |
BRKT.PIVOT.RH.CRD Price: $7.99 |
| 21 |
3218-6 |
NUT-JAM Price: $0.61 |
| 21 |
532180880 |
GRASS BAG Price: $130.99 |
| 22 |
325-5 |
SCREW-HH Price: $1.20 |
| 22 |
532165781 |
BRKT.SIDE.BAG.CRD Price: $2.99 |
| 23 |
13-6000-01 |
GEAR BOX BASE WA This part replaces 13-6000. Price: $968.55 |
| 23 |
532165782 |
TUBE.UPPER.BAG.CRD Price: $279.99 |
| 24 |
2410-13 |
DISCONTINUED Price: Call Us |
| 24 |
532165783 |
TUBE.PIVOT.BAG.CRD.BLACK Price: $22.99 |
| 25 |
323-8 |
SCREW-HH Price: $1.20 |
| 25 |
532180124 |
NEEDS DESCRIPTION Price: Call Us |
| 26 |
3218-3 |
NUT-JAM Price: $0.25 |
| 26 |
532165785 |
TUBE.LOWER.BAG.CRD Price: $32.99 |
| 27 |
3256-28 |
WASHER-FLAT Price: $0.48 |
| 28 |
235-15 |
GRIP-HANDLE Price: $11.84 |
| 28 |
532165787 |
GRIP.HANDLE.BLACK Price: $5.99 |
| 29 |
32104-95 |
SCREW-HWH Price: $0.41 |
| 30 |
32104-96 |
SCREW-HH Price: $5.59 |
| 31 |
20-9580 |
ROPE-LATCH Price: $47.65 |
| 31 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 32 |
13-6910-01 |
SPACER-GUIDE, ROPE This part replaces 13-6910. Price: $18.39 |
| 32 |
532126875 |
RIVET,DRILLED Price: $2.99 |
| 33 |
13-6890-01 |
GUIDE-ROPE This part replaces 13-6890. Price: $119.16 |
| 33 |
583448501 |
MULCHING.PLUG.92.CRD.NON-TEX This part replaces 532165571. Price: $19.99 |
| 34 |
2412-40 |
CLAMP-CONDUIT Price: $6.72 |
| 34 |
532165570 |
HANDLE.MULCHER.92.CRD (2 2) Price: $44.99 |
| 35 |
3217-9 |
NUT-HH Price: $0.37 |
| 35 |
532165572 |
PIN Price: $12.99 |
| 36 |
328-23 |
SCREW-HH Price: $13.03 |
| 36 |
596134901 |
GSPH This part replaces 819132016. Price: $2.99 |
| 37 |
3253-9 |
WASHER-LOCK Price: $1.02 |
| 37 |
532175401 |
Plug Support Bagger CRD Price: Call Us |
| 38 |
3217-12 |
NUT-HEX Price: $3.12 |
| 38 |
872010520 |
BOLT.5/16-18X2.5 Price: $4.99 |
| 39 |
323-5 |
SCREW-HH Price: $0.41 |
| 39 |
532416257 |
SEAL.BAGGER.CRD This part replaces 532180985. Price: $29.99 |
| 40 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 41 |
323-2 |
SCREW-HH Price: $0.68 |
| 41 |
532169683 |
BRKT.VERT.ADJ.BAGGER.CRD Price: $4.99 |
| 42 |
603773 |
LOCKNUT This part replaces 32146-2. Price: $2.09 |
| 43 |
13-7460 |
PLATE-HITCH, CAUTION Price: $30.27 |
| 43 |
532174083 |
PLUG, TUBING END Price: $5.99 |
| 44 |
3259-15 |
DRIVE SCREW Price: $0.25 |
| 45 |
13-4310-01 |
TONGUE WA This part replaces 13-4310. Price: $4,199.75 |
| 46 |
13-6200 |
PIN-HITCH, POINTED Price: $40.83 |
| 47 |
3290-343 |
PIN-HAIR Price: $0.76 |
| 48 |
13-5870-01 |
FRONT SHIELD WA This part replaces 13-5870. Price: $376.54 |
| 49 |
13-5880-01 |
DROP SHAFT SHIELD WA This part replaces 13-5880. Price: $394.15 |
| 50 |
13-5790-01 |
SIDE SHAFT SHIELD This part replaces 13-5790. Price: $199.92 |
| 51 |
3256-24 |
WASHER-FLAT Price: $0.28 |
