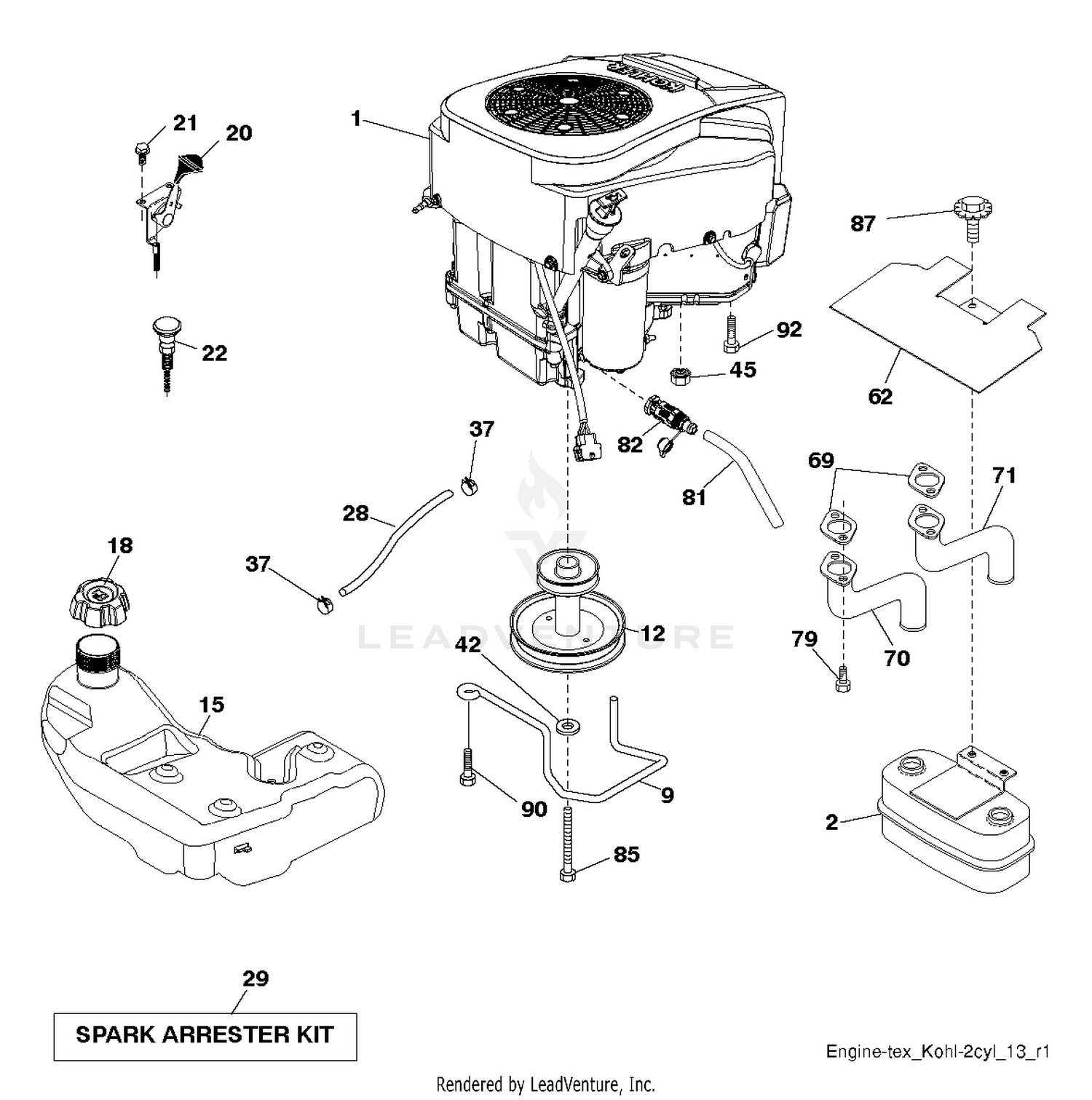

| Ref | Part Number | Description |
|---|
| 1 |
5-7280 |
KEY Price: $4.64 |
| 2 |
3246-4 |
SCREW-SET Price: $0.75 |
| 2 |
589818702 |
MUFFLER.ASM.TWIN.MNTG.BRACKET This part replaces 532445962. Price: $44.99 |
| 3 |
33114-040 |
SCREW-HH Price: $1.22 |
| 4 |
33094-00 |
WASHER-PLAIN Price: $0.25 |
| 5 |
98-5339 |
SHAFT - FRONT Price: $88.51 |
| 6 |
61-0140 |
JACKSHAFT PULLEY Price: $61.35 |
| 7 |
98-5568 |
TIE ROD MOUNT Price: $181.27 |
| 8 |
76-2460 |
BEARING ASM Price: $67.16 |
| 9 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 9 |
596501502 |
Keepers This part replaces 532194320. Price: $9.99 |
| 10 |
61-2350-03 |
BEARING PLATE Price: $18.09 |
| 12 |
532405472 |
RP_PULLEY ENGINE Price: $34.99 |
| 13 |
33024-00 |
NUT-LOCK, NI Price: $0.75 |
| 15 |
3234-32 |
SCREW-HHF Price: $8.48 |
| 15 |
599306004 |
FUEL TANK, 3GAL, 2.25"NECK, 20 This part replaces 532438080. Price: $199.99 |
| 17 |
33124-035 |
DISCONTINUED Price: Call Us |
| 18 |
532439208 |
CAP.ASM.FL.RITCH.3"E10.SYM.498 Price: $37.99 |
| 18 |
98-5567 |
KEY - SQUARE Price: Call Us |
| 19 |
98-5831 |
SCR-SET,M8X25MM,CONE PT Price: $10.39 |
| 20 |
532177328 |
CONTROL.THROTTLE.LH.COBRA.KNOB This part replaces 532182937. Price: $24.99 |
| 20 |
98-5592 |
Coupler Assembly (Incl. Ref. #3-8) This part replaces 98-5566. Price: $642.44 |
| 21 |
32120-14 |
Snap Ring Price: Call Us |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 22 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 22 |
532191596 |
CONTROL.CHOKE.ERGO.PUSH-IN.BLA Price: $32.99 |
| 23 |
94-3405 |
BEARING-BALL Price: $22.27 |
| 24 |
251-77 |
COLLAR-LOCK, BEARING Price: $10.22 |
| 25 |
3245-35 |
SCREW-SET, HSH Price: $0.41 |
| 26 |
76-2440 |
DISCONTINUED Price: Call Us |
| 27 |
76-2430 |
BRACKET - DEBRIS Price: $10.18 |
| 28 |
3229-11 |
SCREW-CARR Price: $0.99 |
| 28 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532434017. Price: $11.99 |
| 69 |
532186054 |
GASKET.EXHAUST.KOHL.CV18-CV26 Price: $5.99 |
| 70 |
583954501 |
PIPE.EXHAUST.LH.CV18/20 This part replaces 532146699. Price: $19.99 |
| 71 |
583954801 |
PIPE.EXHAUST.RH.CV18/20 This part replaces 532146700. Price: $17.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN Price: $14.99 |
| 85 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99 |
| 87 |
537171877 |
BOLT 5/1618UNC X 3/4 W/ SEMS Price: $1.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 92 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
