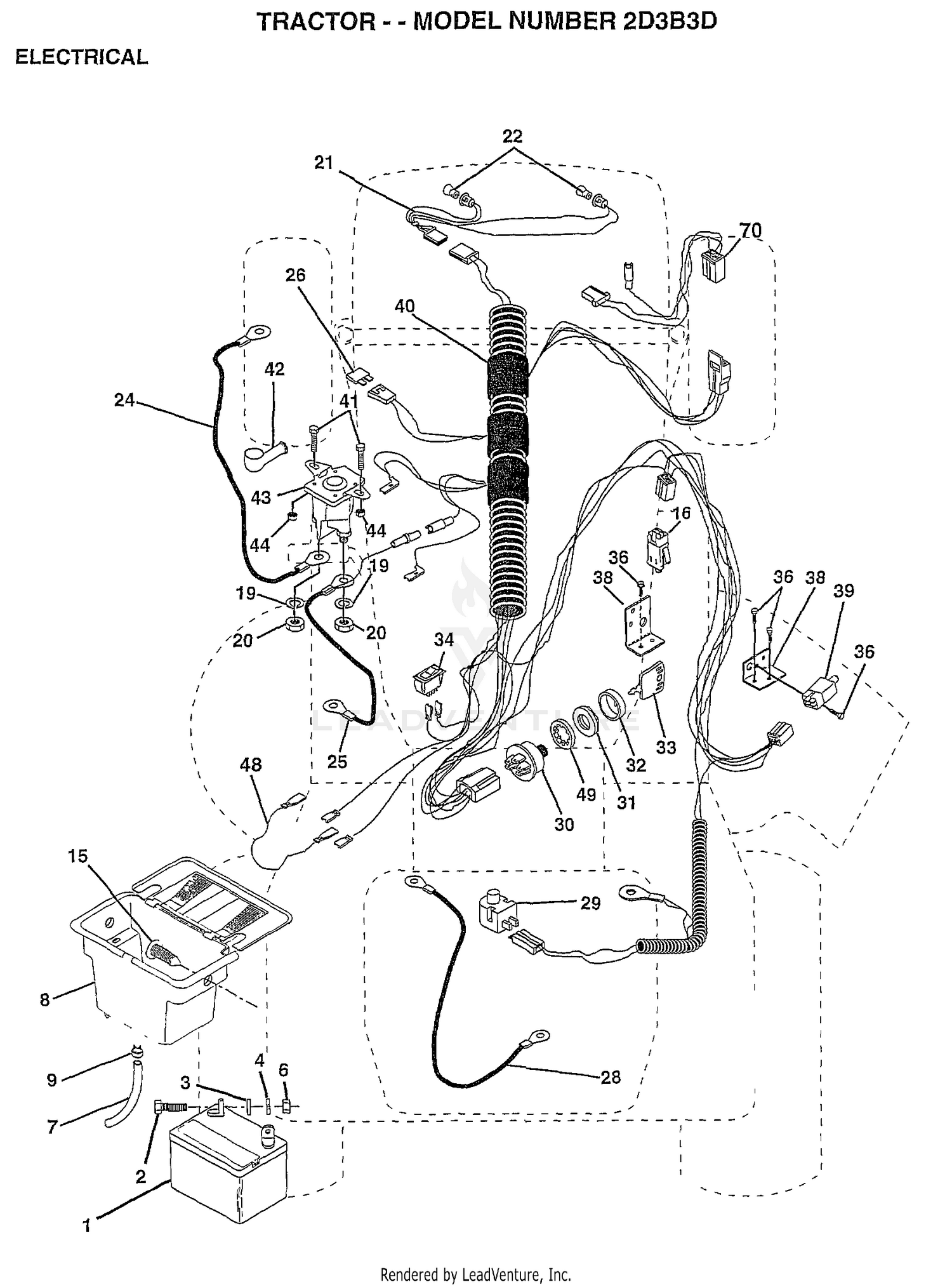

| Ref | Part Number | Description |
|---|
| 1 |
146139 |
SUB= 123899X Price: Call Us |
| 1 |
323-12 |
SCREW-HH Price: $1.14 |
| 2 |
83-1040 |
WASHER-FLAT Price: $2.31 |
| 3 |
19091016 |
WASHER Price: Call Us |
| 3 |
83-1050 |
SPACER Price: $3.26 |
| 4 |
10040400 |
LOCKWASHER Price: Call Us |
| 4 |
108-6539 |
MANIFOLD-EXHAUST This part replaces 83-1080. Price: $249.13 |
| 5 |
83-2310 |
SHIELD-REGULATOR Price: $14.57 |
| 6 |
2112-11 |
CLAMP-MUFFLER Price: $7.37 |
| 6 |
73220400 |
SUB= 50675 Price: Call Us |
| 7 |
109238X |
TUBE T Price: Call Us |
| 7 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 8 |
139-6524 |
ENGINE-BRIGGS STRATTON,VANGUARD This part replaces 106-4618. Price: $2,957.43 |
| 8 |
144940 |
SUB= 156417 Price: Call Us |
| 9 |
109596X |
HOSE CLAMP T Price: Call Us |
| 9 |
98-0616 |
MUFFLER Price: $136.88 |
| 10 |
112-0220 |
GRILLE-MUFFLER This part replaces 83-1400-03. Price: $18.94 |
| 12 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 13 |
83-1630-03 |
BRACKET-SUPPORT, MUFFLER Price: $129.03 |
| 14 |
322-8 |
SCREW-HH Price: $1.26 |
| 15 |
147688 |
FASTNER.SNAP-IN Price: Call Us |
| 15 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 16 |
153664 |
SWITCH INTERLOCK Price: Call Us |
| 16 |
32128-20 |
NUT-HF Price: $0.99 |
| 17 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 18 |
49-2040 |
SCREW-HWHTF Price: $1.99 |
| 19 |
10090400 |
SUB= 10040400 Price: Call Us |
| 19 |
83-1060-0P |
PUMP MOUNT - MACH. *B This part replaces 83-1060-03. Price: $249.55 |
| 20 |
3274-7 |
SCREW-HSH Price: $0.91 |
| 20 |
73350400 |
NUT Price: Call Us |
| 21 |
85-8120-0P |
ENGINE MOUNT PLATE *B This part replaces 85-8120-03. Price: $114.20 |
| 22 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 22 |
4152J |
HEADLAMP BULB Price: Call Us |
| 23 |
324-7 |
SCREW-HH Price: $1.79 |
| 24 |
121-9076 |
MOUNT-ENGINE This part replaces 83-1030. Price: $37.76 |
| 25 |
146147 |
CABLE.BTRY.6GA.RD Price: Call Us |
| 25 |
322-3 |
SCREW-HH Price: $0.79 |
| 26 |
108824X |
FUSE HYT Price: Call Us |
| 26 |
93-8069 |
DECAL-SURFACE, HOT Price: $10.04 |
| 27 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 28 |
4207J |
CABLE T Price: Call Us |
| 29 |
121305X |
SWITCH SEAT Price: Call Us |
| 30 |
144921 |
SUB= 163088 Price: $10.69 |
| 30 |
43-2830 |
NUT-HEX Price: $0.39 |
| 31 |
140400 |
SUB= 145774 Price: Call Us |
| 31 |
43-5930 |
WASHER-LOCK, SPRING Price: $0.75 |
| 32 |
141226 |
COVER KEY SWITCH Price: Call Us |
| 32 |
33113-016 |
SCREW-HH Price: $0.34 |
| 33 |
140401 |
KEY MLD GEN DELTA Price: Call Us |
| 34 |
110712X |
SWITCH LT Price: Call Us |
| 36 |
17021008 |
SCREW Price: Call Us |
| 38 |
140336 |
BRACKET SWITCH IN Price: Call Us |
| 39 |
109553X |
SWITCH INTERLOCKT Price: Call Us |
| 40 |
146057 |
HARNESS.IGN.DASH. Price: Call Us |
| 41 |
71110408 |
BOLT HXHD FIN Price: Call Us |
| 42 |
131563 |
SUB= 154336 Price: Call Us |
| 43 |
145673 |
SUB= 146154 Price: Call Us |
| 44 |
73640400 |
NUT HXKEP 1/4X20 Price: Call Us |
| 48 |
140844 |
ADAPTER AMMETER Price: Call Us |
| 49 |
153249 |
WASHER PINNED Price: Call Us |
