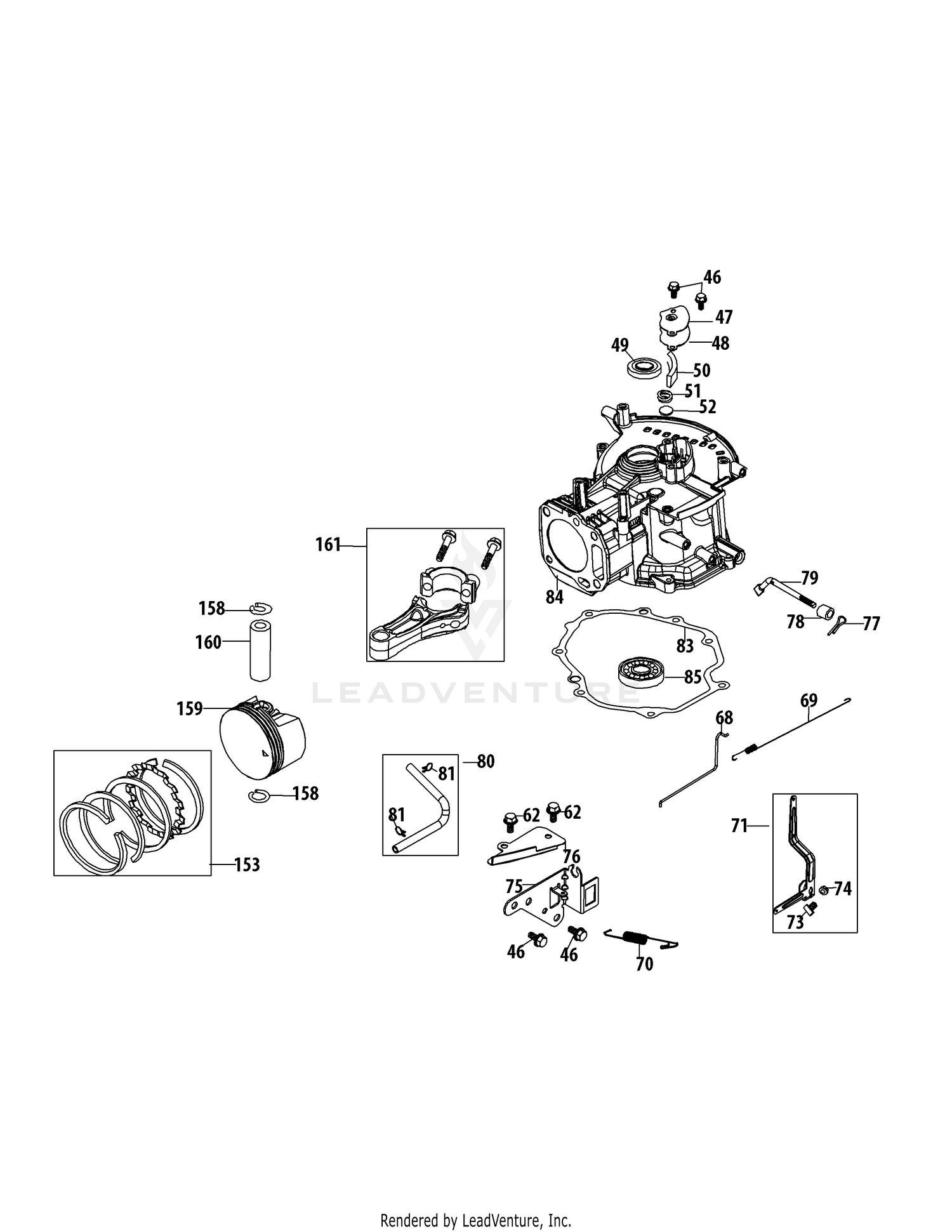

| Ref | Part Number | Description |
|---|
| 46 |
710-04916 |
Bolt M6X14 Multi-Purpose Price: $3.86 |
| 47 |
951-14404 |
Breather Cover Plate Price: $12.64 |
| 48 |
951-14405 |
Breather Gasket Price: $8.96 |
| 49 |
951-11596A |
UPPER CRANKSHAFT SEAL This part replaces 951-11596. Price: $5.44 |
| 50 |
951-11730 |
Breather Screen Price: $4.75 |
| 51 |
732-04718 |
Breather Valve Spring Price: $3.78 |
| 52 |
951-11614 |
Breather Valve Price: $3.53 |
| 62 |
710-04915 |
Bolt M6X12 Multi-Purpose Price: $3.82 |
| 68 |
951-14410 |
Throttle Linkage Price: $7.21 |
| 69 |
951-14409 |
Throttle Linkage Spring Price: $7.61 |
| 70 |
951-14411 |
Governor Spring Price: $8.34 |
| 71 |
951-14412 |
Governor Arm Assembly Price: $7.54 |
| 73 |
710-04908 |
Governor Arm Bolt Price: $5.65 |
| 74 |
712-05015 |
Governor Arm Nut M6 Price: $5.78 |
| 75 |
951-14413 |
Component Bracket Price: $12.85 |
| 76 |
951-14605 |
Air Vane Cover Plate Price: $5.43 |
| 77 |
714-04078 |
Governor Arm Shaft Cotter Pin Price: $3.66 |
| 78 |
951-11902A |
OIL SEAL This part replaces 951-11574. Price: $3.36 |
| 79 |
951-14416 |
Governor Arm Shaft Price: $11.24 |
| 80 |
951-11520 |
Breather Hose Assembly Price: $5.48 |
| 81 |
726-04101 |
Breather Hose Clamp Not Available Price: |
| 83 |
951-14415 |
Crankcase Cover Gasket Price: $12.77 |
| 84 |
951-05150A |
SHORTBLOCK KIT Not Available This part replaces 651-05150A. Price: |
| 84 |
951-14635 |
CRANKCASE This part replaces 751-14635. Price: $168.31 |
| 85 |
951-11369 |
Main Bearing Price: $30.42 |
| 153 |
951-14433A |
PISTON RING SET This part replaces 951-14433. Price: $34.45 |
| 158 |
951-11603 |
Piston Pin Snap Ring Price: $3.53 |
| 159 |
951-14434A |
PISTION This part replaces 951-14434. Price: $56.68 |
| 160 |
951-14435 |
Piston Pin Price: $11.17 |
