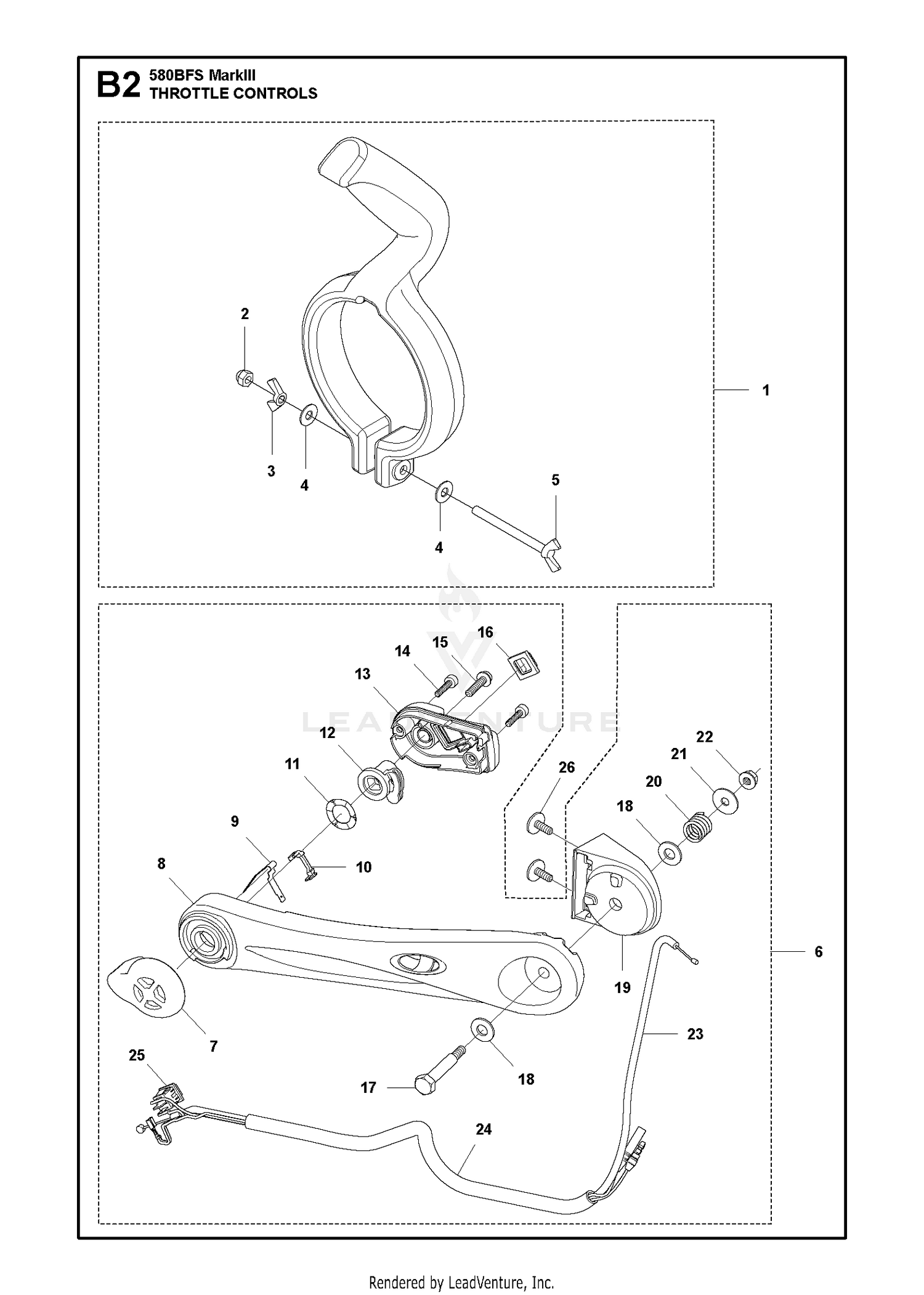

THROTTLE CONTROLS
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 597638502 | GRIP Price: $19.99 |
| 2 | 513671401 | NUT Price: $3.99 |
| 3 | 514338501 | WING NUT Price: $2.99 |
| 4 | 514154401 | WASHER Price: $2.99 |
| 6 | 576562401 | LEVER,SET Price: $49.99 |
| 7 | 576562901 | LEVER,THROTTLE Price: $29.99 |
| 8 | 576562601 | ARM Price: $22.99 |
| 9 | 576563201 | PLATE, CONTACT Price: $11.99 |
| 10 | 576562801 | STOPPER Price: $6.99 |
| 11 | 576563301 | WASHER WAVE Price: $6.99 |
| 12 | 576563101 | PLATE Price: $11.99 |
| 13 | 576562701 | COVER Price: $9.99 |
| 14 | 576563501 | SCREW Price: $3.99 |
| 15 | 506745201 | BOLT Price: $4.99 |
| 16 | 513351901 | CAP SWITCH Price: $2.99 |
| 17 | 514336201 | BOLT Price: $3.99 |
| 18 | 514336701 | WASHER Price: $2.99 |
| 19 | 576563601 | BRACKET Price: $14.99 |
| 20 | 514336301 | SPRING Price: $2.99 |
| 21 | 514336501 | WASHER Z349525440 Price: $2.99 |
| 22 | 521519601 | NUT 8488646000 Price: $2.99 |
| 23 | 576563401 | CABLE Price: $24.99 |
| 24 | 544277601 | TUBE Price: $22.99 |
| 25 | 576562401 | LEVER,SET This part replaces 576563001. Price: $49.99 |
| 26 | 544270801 | SCREW Price: $4.99 |
