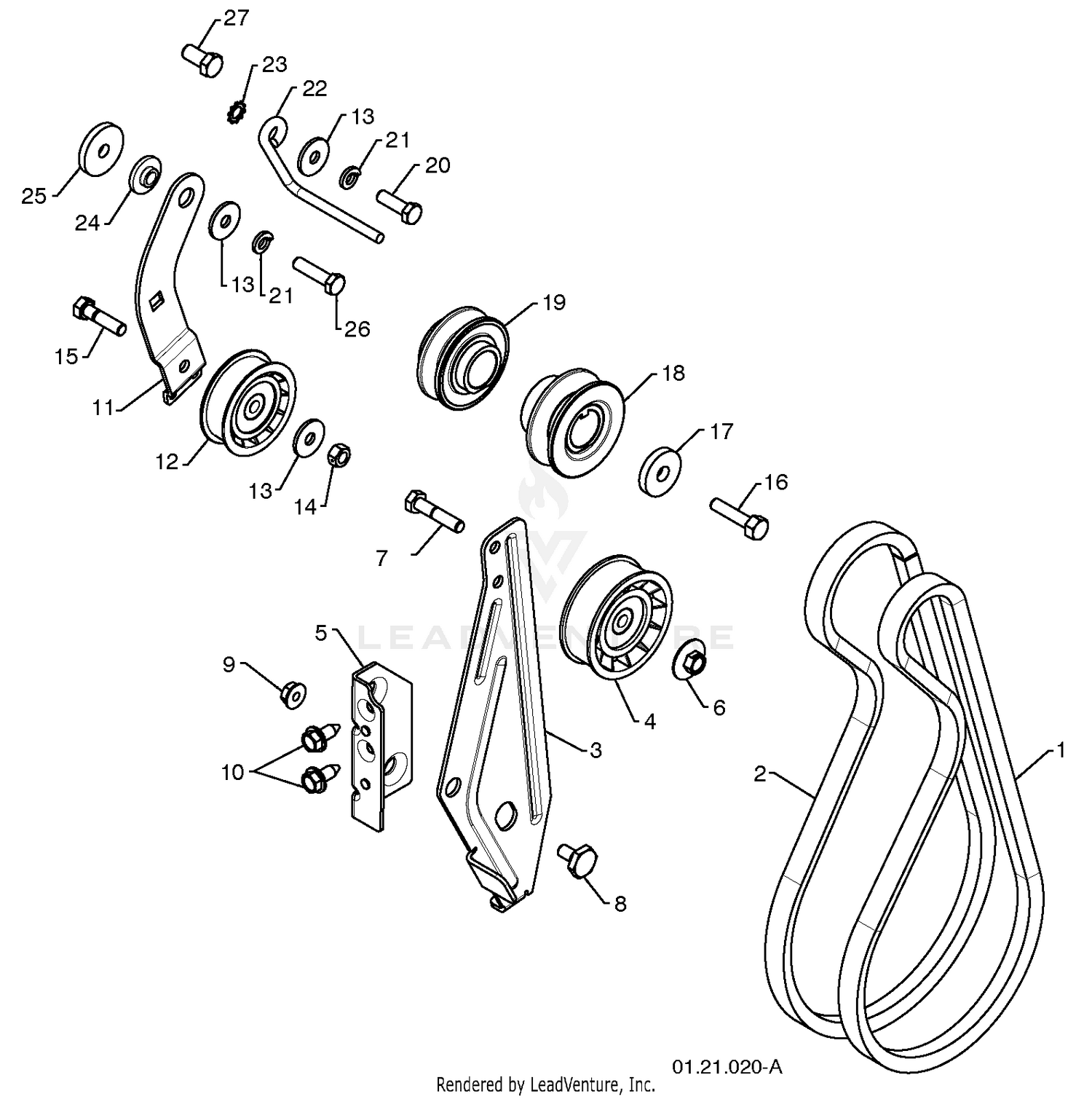

| Ref | Part Number | Description |
|---|
| 1 |
419888 |
IMPELLER BELT Price: Call Us |
| 1 |
98-9339 |
GAUGE-FUEL Price: $115.28 |
| 2 |
3258-166 |
SCREW-PRH Price: $0.28 |
| 2 |
427304 |
TRACTION BELT Price: Call Us |
| 3 |
233-42 |
KNOB Price: $12.88 |
| 3 |
423723X479 |
IDLER ARM BRACKET Price: Call Us |
| 4 |
180523 |
IDLER PULLEY Price: Call Us |
| 4 |
94-5626 |
FLEXIBLE DRAW LATCH ASM Price: $42.59 |
| 5 |
112-6561 |
WARNING LIGHT ASM This part replaces 98-9306. Price: $121.84 |
| 5 |
423990X479 |
IDLER BRACKET Price: Call Us |
| 6 |
426589 |
NUT 5/16-18 Price: Call Us |
| 6 |
98-9308 |
GAUGE-TEMPERATURE Price: $112.90 |
| 7 |
74780524 |
SCREW 5/16-18 X 1.50 Price: Call Us |
| 7 |
93-5961 |
BOOT-LEVER Price: $56.35 |
| 8 |
32144-1 |
SCREW-TAPTITE Price: $3.19 |
| 8 |
424297 |
SHOULDER BOLT 5/16-18 X .50 Price: Call Us |
| 9 |
105-7508 |
LEVER-JOYSTICK Price: $53.02 |
| 9 |
751153 |
NUT 5/16-18 LOCK Price: Call Us |
| 10 |
104-9296 |
DECAL-CONTROL Price: $27.94 |
| 10 |
428867 |
SCREW 5/16-18 X .625 Price: Call Us |
| 11 |
104-9251-03 |
PLATE-INSTRUMENT Price: $95.17 |
| 11 |
427576 |
TRACTION IDLER BRACKET Price: Call Us |
| 12 |
180522 |
TRACTION PULLEY Price: Call Us |
| 12 |
99-8352 |
SWITCH-BACKLAP, MASTER Price: $91.81 |
| 13 |
106-4167 |
JOYSTICK BRACKET ASM Price: $202.74 |
| 13 |
59289 |
WASHER Price: Call Us |
| 14 |
32105-13 |
SCREW-HWH Price: $1.59 |
| 14 |
73800500 |
NUT 5/16-18 Price: Call Us |
| 15 |
74780520 |
SCREW 5/16-18 X 1.25 Price: Call Us |
| 16 |
104-1499-03 |
BRACKET-BLOCK, FUSE Price: $43.35 |
| 16 |
851084 |
SCREW 3/8-24 X 1 .375 Price: Call Us |
| 17 |
19132005 |
WASHER Price: Call Us |
| 17 |
32144-18 |
SCREW-HWH Price: $1.80 |
| 18 |
120-2244 |
HOURMETER This part replaces 75-6820. Price: $48.06 |
| 18 |
425934 |
PULLEY ENG IMPELLER Price: Call Us |
| 19 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 19 |
425933 |
PULLEY ENG TRACTION Price: Call Us |
| 20 |
104-0027 |
BOX-CONTROL Price: $196.04 |
| 20 |
74610516 |
SCREW 5/16-24 X 1.00 Price: Call Us |
| 21 |
10040500 |
LOCKWASHER 5/16 Price: Call Us |
| 22 |
155452 |
BELT GUIDE Price: Call Us |
| 22 |
94-6767 |
DECAL-FUSES Price: $11.45 |
| 23 |
104-9298 |
DECAL-CONTROLLER Price: $6.16 |
| 23 |
11050500 |
LOCKWASHER 5/16 Price: Call Us |
| 24 |
104-1496 |
HINGE-PIN Price: $13.22 |
| 24 |
175331 |
IDLER BUSHING Price: Call Us |
| 25 |
104-1497 |
HINGE-RECEIVER Price: $13.90 |
| 25 |
19112206 |
WASHER Price: Call Us |
| 26 |
139-5984 |
CONTROLLER-ELECTRONIC This part replaces 92-5720. Price: $2,183.63 |
| 26 |
74610520 |
SCREW 5/16-24 X 1.25 Price: Call Us |
| 27 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 28 |
321-14 |
SCREW-HH Price: $0.55 |
| 29 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 30 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 32 |
106-5970 |
HARNESS-WIRE Price: $1,013.00 |
| 33 |
94-6343 |
DECAL-IDENTIFICATION, WIRE Price: $6.86 |
| 34 |
3218-3 |
NUT-JAM Price: $0.25 |
| 41 |
32128-33 |
NUT-HF Price: $0.25 |
| 99 |
104-9270 |
DECAL-DIAGNOSTICS Price: $24.08 |
