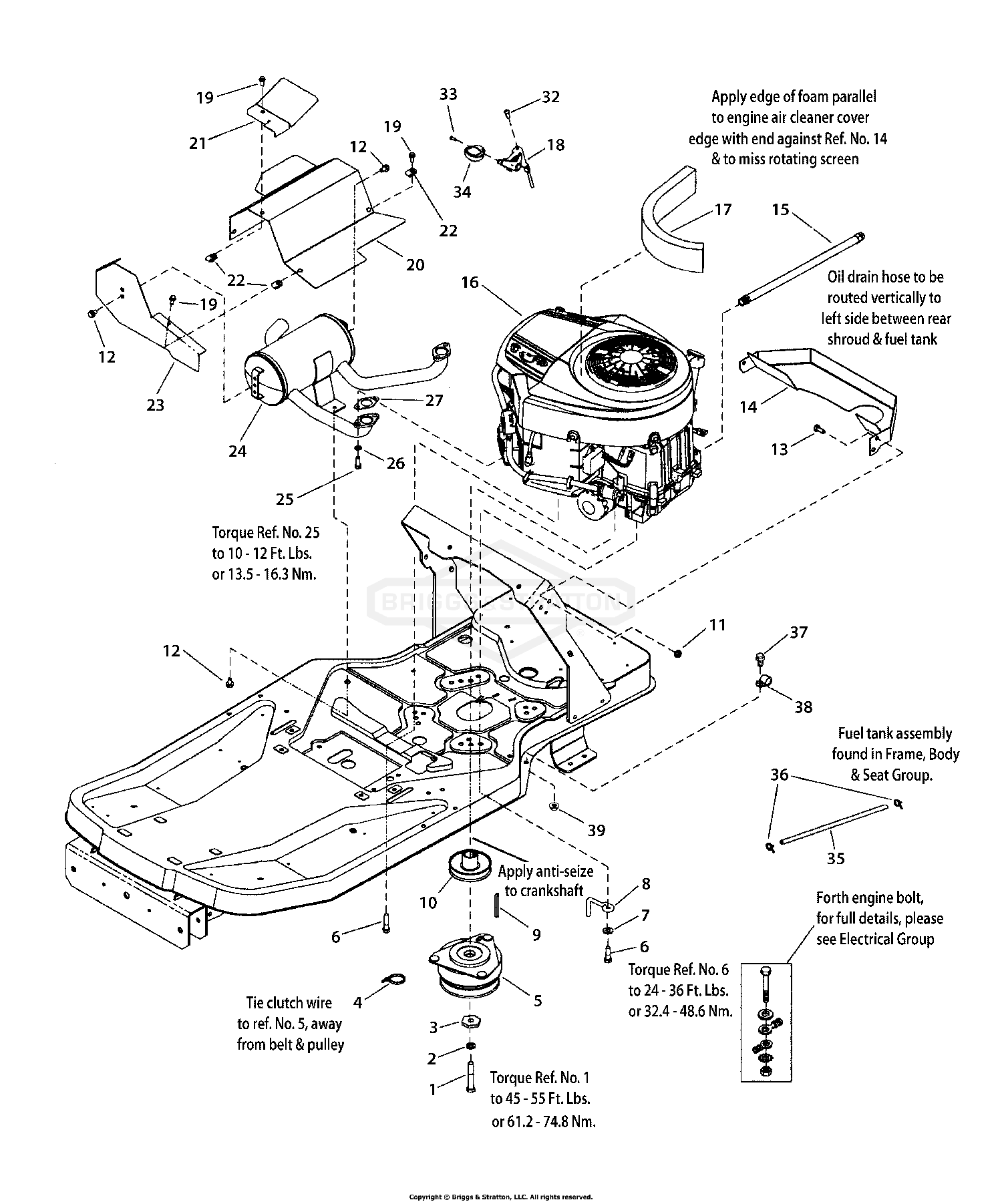

| Ref | Part Number | Description |
|---|
| 1 |
7027266SM |
CAPSCREW, Hex Head, 7/16-20 x 2-3/4, G5 This part replaces 7027266. Price: $6.20 |
| 2 |
704007 |
LCKWSHR,7/16,SPLIT RE This part replaces 1918199. Price: $3.94 |
| 3 |
1708264SM |
WASHER, HEX, 0.453ID This part replaces 1708264. Price: $7.67 |
| 4 |
2832747SM |
TIE, Self-Locking 3-5/8 Long This part replaces 2832747. Price: $3.37 |
| 5 |
1687746YP |
KIT, ELECTRIC CLUTCH This part replaces 1717664. Price: $349.79 |
| 6 |
2828635SM |
SCREW-HEX WSHR HD TAP This part replaces 2828635. Price: $4.26 |
| 7 |
703878 |
WASHER, FLAT This part replaces 1924940. Price: $3.40 |
| 8 |
7101717SM |
RETAINER, Clutch This part replaces 7101717. Price: Call Us |
| 9 |
2154096SM |
KEY This part replaces 2154096. Price: $6.34 |
| 10 |
7101716SM |
PULLEY ASSEMBLY, Engine This part replaces 7101716. Price: $47.05 |
| 11 |
703409 |
NUT, 5/16-18, GR5 This part replaces 1931277. Price: $4.92 |
| 12 |
703985 |
SCREW, 5/16-18X.5 This part replaces 1924856. Price: $3.61 |
| 13 |
5025011X6SM |
BOLT, 5/16-18 X 3/4" This part replaces 1921332. Price: $3.19 |
| 14 |
1733414ASM |
AIR DUCT, Inlet This part replaces 1733414A. Price: $62.05 |
| 15 |
1726498SM |
HOSE-OIL DRAIN .375ID This part replaces 1726498. Price: $24.79 |
| 17 |
1734169SM |
SEAL, Foam Air Inlet This part replaces 1734169. Price: $28.34 |
| 18 |
7103123YP |
CONTROL, Throttle This part replaces 7103123. Price: $40.25 |
| 19 |
1960295SM |
CAPSCREW, Hex Head Flange Lock, 1/4-20 x 5/8 This part replaces 1960295. Price: $3.82 |
| 20 |
1734246ASM |
HEAT SHIELD, Muffler Top This part replaces 1734246A. Price: $49.75 |
| 21 |
1728017SM |
HEAT SHIELD, Throttle This part replaces 1728017. Price: $6.99 |
| 22 |
705876 |
NUT This part replaces 1960368. Price: $3.82 |
| 23 |
1727939ASM |
HEAT SHIELD, Muffler Side This part replaces 1727939A. Price: $25.99 |
| 24 |
1734061SM |
MUFFLER, 24HP V-Twin ELS This part replaces 1734061. Price: $345.47 |
| 25 |
1936228SM |
CAPSCREW, 5/16-18 x 3/4, G8 This part replaces 1936228. Price: $3.73 |
| 26 |
5025170SM |
WASHER, 5/16" LOCK This part replaces 1917356. Price: $3.51 |
| 27 |
690970 |
GASKET, Exhaust This part replaces 1731214. Price: $4.13 |
| 32 |
7090999FS |
SCREW This part replaces 7090999. Price: $3.62 |
| 33 |
7091195SM |
SCREW, Taptite Pan Head Combo, #10-16 x 3/4 This part replaces 7091195. Price: $3.84 |
| 34 |
1725337SM |
KNOB, Throttle (Red) This part replaces 7100529. Price: $11.89 |
| 35 |
1734995SM |
HOSE, Fuel, 19.5" This part replaces 1734995. Price: $10.09 |
| 36 |
791850 |
CLAMP, Hose This part replaces 7012222. Price: $2.52 |
| 37 |
703354 |
SCREW, 5/16-18 This part replaces 1930591. Price: $4.70 |
| 38 |
7900020SM |
CLIP, Harness This part replaces 7900020. Price: $3.68 |
