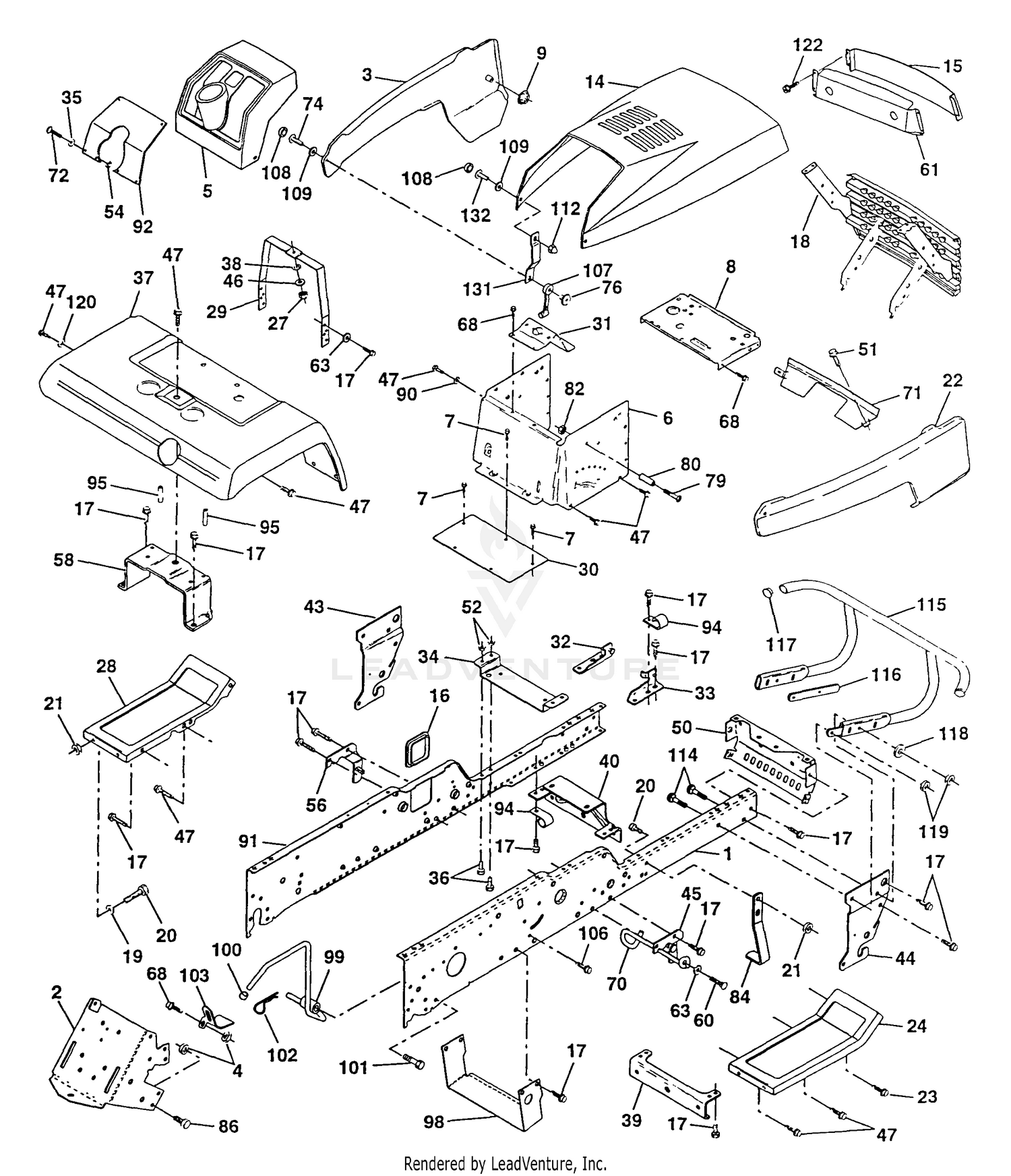

| Ref | Part Number | Description |
|---|
| 1 |
150253 |
Rail, Frame RH (AYP part number) Price: Call Us |
| 1 |
242-72 |
DUST CAP(DICO 6296) This part replaces 217-51. Price: $15.29 |
| 2 |
140506 |
Drawbar, Gt (AYP part number) Price: Call Us |
| 2 |
32136-5 |
NUT-HEX, SLOTTED Price: $2.71 |
| 3 |
150302X428 |
Panel Asm., Side LH Price: Call Us |
| 3 |
3272-17 |
PIN-COTTER Price: $1.79 |
| 4 |
217-50 |
DISCONTINUED Price: Call Us |
| 4 |
73800700 |
Nut, Lock Hex 7/16 Unc Price: Call Us |
| 5 |
140398 |
Dash, Plastic Black Price: Call Us |
| 5 |
302-41 |
DISCONTINUED Price: Call Us |
| 6 |
157882 |
Dash, 1PCS, Lower Price: Call Us |
| 6 |
25479 |
Bearing Cup Price: Call Us |
| 7 |
17720408 |
Screw, Thd Cut 1/4-20 x 1/2 Price: Call Us |
| 7 |
254-78 |
BEARING-CONE Price: $12.22 |
| 8 |
145166 |
Support, Battery (AYP part number) Price: Call Us |
| 8 |
253-111 |
SEAL-OIL Price: $6.87 |
| 9 |
108067X |
Nut, Pal Price: Call Us |
| 9 |
3-5557 |
DISCONTINUED Price: Call Us |
| 10 |
214230 |
Spacer Price: Call Us |
| 11 |
3-4676 |
DISCONTINUED Price: Call Us |
| 12 |
3219-2 |
NUT-HEX Price: $0.37 |
| 13 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 14 |
150301X428 |
Hood Asm., Pnt Price: Call Us |
| 14 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
| 15 |
146459 |
Lens, Headlight Bar Price: Call Us |
| 15 |
5-1800 |
DISCONTINUED Price: Call Us |
| 16 |
121794X |
Cover, Access Price: Call Us |
| 16 |
3229-4 |
SCREW-CARR Price: $0.34 |
| 17 |
17490612 |
Screw, Thdrol 3/8-16 x 3/4 Price: Call Us |
| 17 |
3210-9 |
SCREW-HH Price: $0.61 |
| 18 |
150198 |
Grille Price: Call Us |
| 18 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 19 |
19131312 |
Washer 13/32 x 13/16 x 12 Ga. Price: Call Us |
| 19 |
3219-3 |
NUT-HEX Price: $0.34 |
| 20 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 20 |
74760616 |
Bolt, Fin Hex 3/8-16 x 1 Price: Call Us |
| 21 |
241-69 |
Wheel Disc Less Valve Hole Price: Call Us |
| 21 |
73680600 |
Nut, Crownlock 3/8-16 Price: Call Us |
| 22 |
150303X428 |
Panel Asm., Side RH (AYP part number) Price: Call Us |
| 22 |
232-8 |
DISCONTINUED Price: Call Us |
| 23 |
17490616 |
Screw Thdrol 3/8-16 x 1 Price: Call Us |
| 23 |
231-17 |
DISCONTINUED Price: Call Us |
| 24 |
145243X421 |
Footrest, RH (AYP part number) Price: Call Us |
| 24 |
3211-2 |
SCREW-HH Price: $2.17 |
| 25 |
241-70 |
DISCONTINUED Price: Call Us |
| 27 |
73220400 |
Nut, Fin Hex 1/4-20 Price: Call Us |
| 28 |
145244X421 |
Footrest, LH Price: Call Us |
| 29 |
145205 |
Bracket, Support Dash Price: Call Us |
| 30 |
145052 |
Saddle Price: Call Us |
| 31 |
145183 |
Bracket, Support Steering Price: Call Us |
| 32 |
141315 |
Bracket Asm., Frame Pivot Lh Price: Call Us |
| 33 |
141314 |
Bracket Asm., Frame Pivot Rh Price: Call Us |
| 34 |
142131 |
Bracket, Engine Support Rear Price: Call Us |
| 35 |
19111116 |
Washer 11/32 x 11/16 x 16 Ga. Price: Call Us |
| 36 |
74780512 |
Bolt, Fin Hex 5/16-18 x 3/4 Price: Call Us |
| 37 |
140002X421 |
Fender, Pnt. Price: Call Us |
| 38 |
10040400 |
Washer, Lock 1/4 Price: Call Us |
| 39 |
136961 |
Bracket, Axle Front (AYP part number) Price: Call Us |
| 40 |
156111 |
Bracket, Support Axle/Engine Price: Call Us |
| 43 |
136939 |
Bracket, Spnsn Front Lh Price: Call Us |
| 44 |
136940 |
Bracket, Spnsn Front Rh Price: Call Us |
| 45 |
154913 |
Bracket Asm., Susp Chassis Rh Price: Call Us |
| 46 |
19091216 |
Washer 9/32 x 3/4 x 16 Ga. Price: Call Us |
| 47 |
17490608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 50 |
152728 |
Bracket, Chassis Front Price: Call Us |
| 51 |
17580408 |
Screw Tap Tite 1/4-20 x 1/2 Price: Call Us |
| 52 |
73680500 |
Nut, Crownlock 5/16-18 Price: Call Us |
| 54 |
73510500 |
Nut 5/16-18 Price: Call Us |
| 56 |
154914 |
Bracket Asm., Susp Chassis Lh Price: Call Us |
| 58 |
137113 |
Bracket Asm., Fender Price: Call Us |
| 60 |
17490620 |
Screw Thdrol 3/8-16 x 1-1/4 Price: Call Us |
| 61 |
147717 |
Beze. Asem. (AYP part number) Price: Call Us |
| 63 |
19131614 |
Washer 13/32 x 1 x 14 Ga. (AYP part number) Price: Call Us |
| 68 |
17490508 |
Screw, Thdrol 5/16-18 x 1/2 Price: Call Us |
| 70 |
137159 |
Guide, Belt Mid Span (AYP part number) Price: Call Us |
| 71 |
144916X428 |
Strap, Grille Price: Call Us |
| 72 |
74180512 |
Screw, Mach Trhd 5/16-18 x 3/4 Price: Call Us |
| 74 |
74191008 |
Screw, Machine #10-24 Price: Call Us |
| 76 |
2029J |
Nut, Weld #10-24 Price: Call Us |
| 79 |
74981020 |
Screw, Machine #10-24 x 1/4 Price: Call Us |
| 80 |
7206J |
Spacer, Split Price: Call Us |
| 82 |
73731000 |
Nut #10-24 Price: Call Us |
| 84 |
142992 |
Stop, Over Center Mower Price: Call Us |
| 86 |
74760716 |
Bolt, Fin Hex 7/16-14 Unc x 1 (AYP part number) Price: Call Us |
| 90 |
11050600 |
Washer, Lock External Tooth 3/8 Price: Call Us |
| 91 |
156586 |
Rail, Frame Lh (AYP part number) Price: Call Us |
| 92 |
156283X011 |
Plate, Silkscreen Dash (AYP part number) Price: Call Us |
| 94 |
100207K |
Clip, Fuel Line Price: Call Us |
| 95 |
105531X |
Push Nut, Nylon Price: Call Us |
| 98 |
140503 |
Bracket Chassis Skid (AYP part number) Price: Call Us |
| 99 |
140871 |
Rod Asm. Bypass Price: Call Us |
| 100 |
124236X |
Cap Brake Parking Red Price: Call Us |
| 101 |
17490628 |
Screw Thdrol. 3/8-16 x 1-3/4 Price: Call Us |
| 102 |
4497H |
Retainer Spring 1" Price: Call Us |
| 103 |
142273 |
Bracket Lock Bypass Price: Call Us |
| 106 |
138776 |
Screw Thdrol Hex Head Zinc (AYP part number) Price: Call Us |
| 107 |
109808X |
Latch, Chute Blk Price: Call Us |
| 108 |
110356X |
Cap, Snap Black Price: Call Us |
| 109 |
110357X |
Cap, Washer Snap Nat Price: Call Us |
| 112 |
60867 |
Nut, Acorn, Hex #10-24 Price: Call Us |
| 114 |
72140610 |
Bolt, Carriage 3/8-16 x 1-1/4 Price: Call Us |
| 115 |
150300 |
Bumper Asm. Price: Call Us |
| 116 |
141461 |
Bracket Extension Bumper (AYP part number) Price: Call Us |
| 117 |
143679 |
Plug, Plastic Price: Call Us |
| 118 |
19131316 |
Washer 13/32 x 13/16 x 16 Ga. Price: Call Us |
| 119 |
73680600 |
Nut, Crownlock 3/8-16 UNC Price: Call Us |
| 120 |
19131616 |
Washer 13/32 x 1 x 16 Ga. Price: Call Us |
| 122 |
17030814 |
Screw Spiderlock #8 x 7/8 Price: Call Us |
| 131 |
150195 |
Bracket Support Hood/Panel YP Price: Call Us |
| 132 |
74291006 |
Screw Truss Hd #10-24 x 3/8 Price: Call Us |
