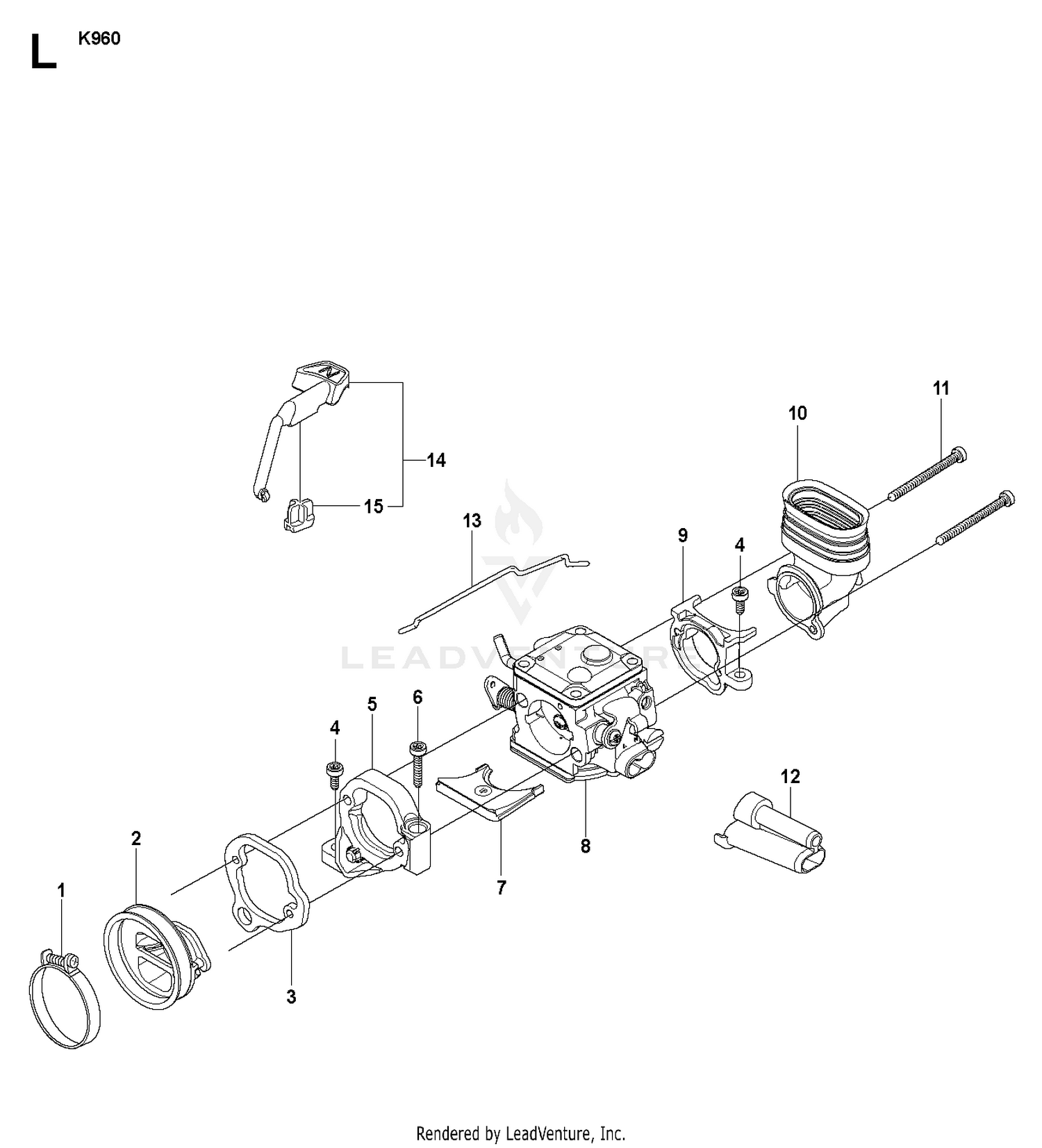

CARBURETOR DETAILS
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 506414101 | INLET PIPE Price: $44.99 |
| 3 | 544150101 | FLANGE Price: $9.99 |
| 4 | 503215316 | SCREW Price: $3.99 |
| 5 | 544113901 | CONSOLE Price: $11.99 |
| 6 | 503215330 | SCREW Price: $4.99 |
| 7 | 506414201 | PLATE Price: $9.99 |
| 9 | 544111701 | FLANGE Price: $4.99 |
| 10 | 544331901 | INLET BEND Price: $22.99 |
| 11 | 501971802 | SCREW This part replaces 501971801. Price: $3.99 |
| 12 | 586062101 | CHISEL GUIDE CARBURETOR K970 I This part replaces 544232601. Price: $4.99 |
| 13 | 505443101 | THROTTLE ROD Price: $6.99 |
| 15 | 506272501 | PROTECTOR Price: $3.99 |
