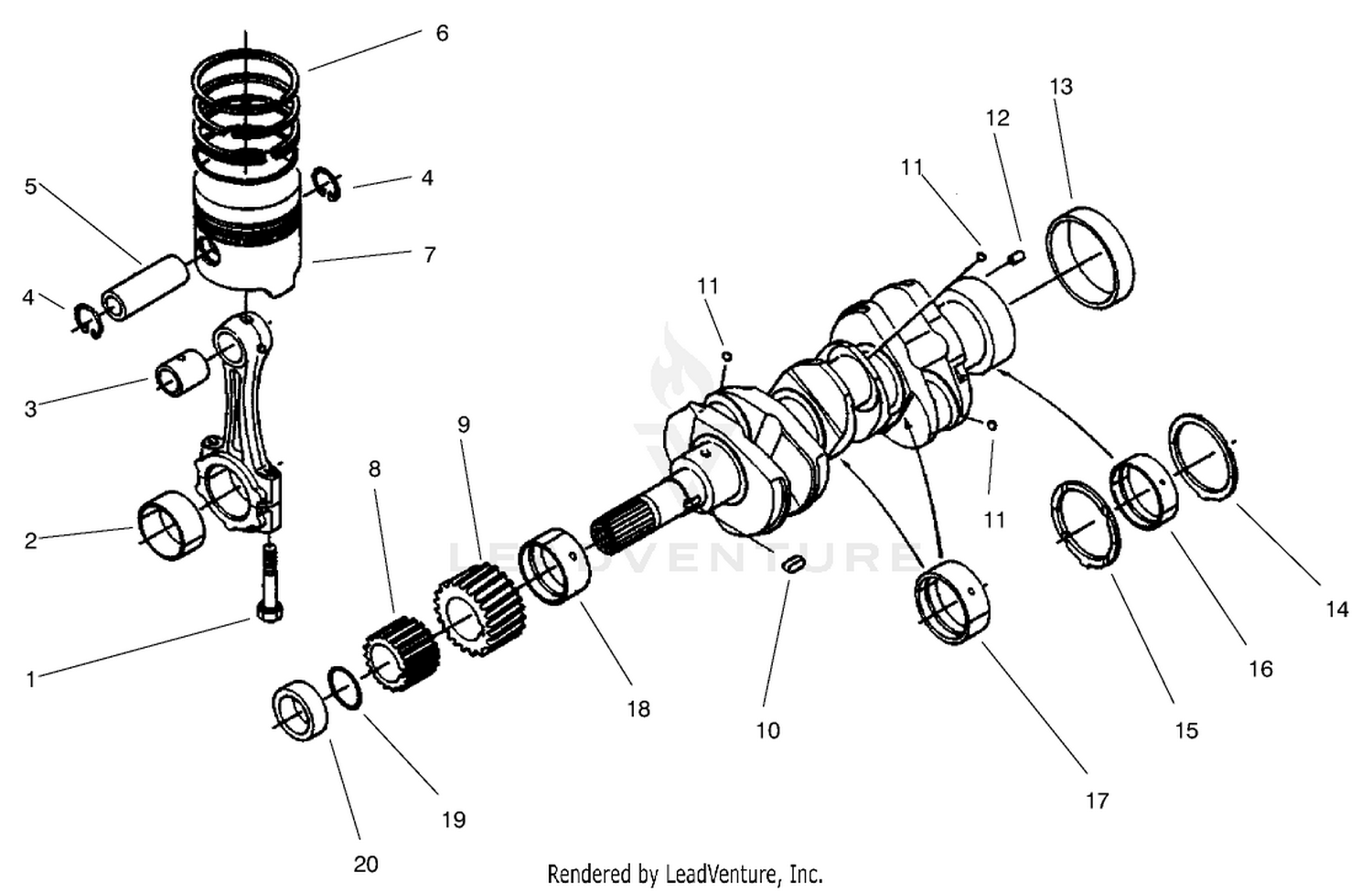

| Ref | Part Number | Description |
|---|
| 1 |
98-9517 |
BOLT-ROD, CONNECTING Price: $10.31 |
| 2 |
117-7588 |
METAL-CRANKPIN (-0.4MM) This part replaces 98-9520. Price: $49.06 |
| 2 |
98-9519 |
BEARING-ROD (-0.2MM) Price: $43.73 |
| 2 |
98-9553 |
BEARING-ROD (STD) Price: $52.92 |
| 3 |
115-3014 |
BUSHING-PIN, PISTON This part replaces 98-9515. Price: $19.81 |
| 4 |
98-9514 |
CIRCLIP-PIN, PISTON Price: $2.79 |
| 5 |
98-9513 |
PIN-PISTON Price: $13.17 |
| 6 |
98-9618 |
PISTON RING ASM (STD) Price: $102.14 |
| 6 |
98-9619 |
PISTON RING ASM (0.5MM) Price: $96.35 |
| 7 |
112-8415 |
PISTON ASM This part replaces 98-9470. Price: $456.30 |
| 7 |
98-9550 |
PISTON (STD) Price: $274.67 |
| 8 |
98-9542 |
GEAR-DRIVE, OIL PUMP Price: $89.04 |
| 9 |
98-9532 |
GEAR-CRANKSHAFT Price: $169.43 |
| 10 |
98-9666 |
KEY Price: $3.58 |
| 11 |
110-3729 |
BALL This part replaces 98-7473. Price: $0.69 |
| 12 |
98-9375 |
PIN-STRAIGHT Price: $0.41 |
| 13 |
98-9522 |
SLEEVE-CRANKSHAFT Price: $116.47 |
| 14 |
127-0416 |
METAL-SIDE (+0.2MM) This part replaces 98-9414. Price: $21.04 |
| 14 |
98-9413 |
BEARING-THRUST (STD) Price: $16.90 |
| 14 |
98-9415 |
BEARING-THRUST (0.4MM) Price: $9.77 |
| 15 |
127-0437 |
METAL-SIDE (+0.2MM) This part replaces 98-9689. Price: $18.42 |
| 15 |
127-0438 |
METAL-SIDE (+0.40MM) This part replaces 98-9690. Price: $12.65 |
| 15 |
98-9688 |
BEARING-THRUST (STD) Price: $16.90 |
| 16 |
115-4121 |
METAL-CRANKSHAFT (STD) This part replaces 98-9556. Price: $86.06 |
| 16 |
98-9526 |
BEARING-MAIN (0.2MM) Price: $64.36 |
| 16 |
98-9527 |
BEARING-MAIN (0.4MM) Price: $63.74 |
| 17 |
127-0433 |
METAL-CRANKSHAFT (-0.2MM) This part replaces 98-9530. Price: $60.46 |
| 17 |
98-9524 |
METAL-CRANKSHAFT (STD SET) This part replaces 98-9555. Price: $62.26 |
| 17 |
98-9531 |
BEARING-MAIN (0.4MM) Price: $39.97 |
| 18 |
112-7005 |
BEARING-MAIN (STD) This part replaces 98-9554. Price: $66.99 |
| 18 |
98-9528 |
BEARING-MAIN (-0.2MM) Price: $15.04 |
| 18 |
98-9529 |
BEARING-MAIN (0.4MM) Price: $40.04 |
| 19 |
98-9373 |
O-RING Price: $3.11 |
| 20 |
98-9521 |
COLLAR-CRANKSHAFT Price: $84.21 |
