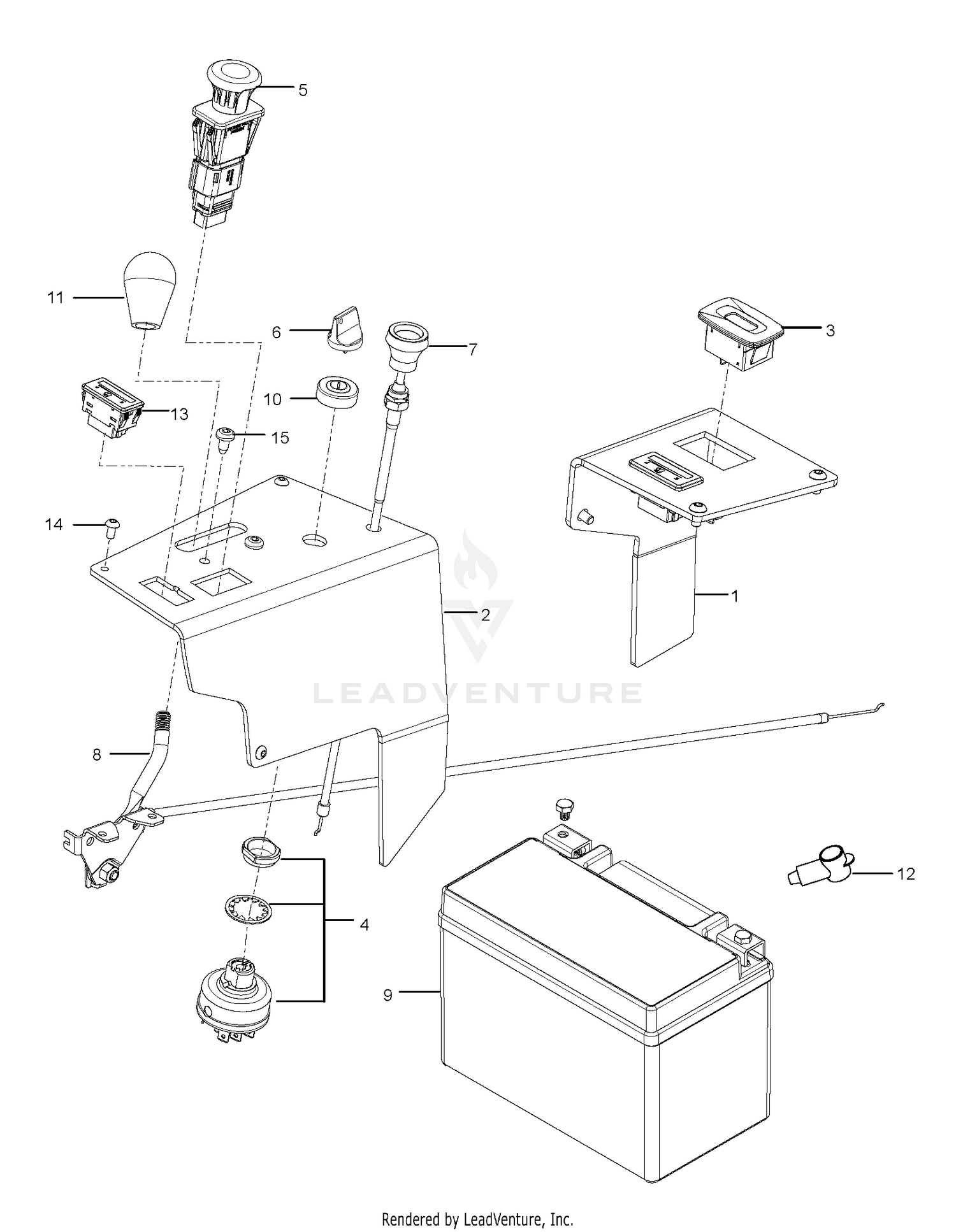

| Ref | Part Number | Description |
|---|
| 1 |
3290-467 |
PIN-HAIR Price: $0.27 |
| 1 |
582483902 |
PANEL.LH.CONTROL.PNT.X498 Price: $17.99 |
| 2 |
237-141 |
GROMMET-RUBBER Price: $2.39 |
| 2 |
582483602 |
PANEL.RH.CONTROL.PNT.X498 Price: $24.99 |
| 3 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 3 |
594919101 |
GUAGE.SRVCMNDR.HRMTR. This part replaces 586161801. Price: $19.99 |
| 4 |
106-1057 |
KIT-CLUTCH BRACKETS This part replaces 86-2590. Price: $221.30 |
| 4 |
574455401 |
SWITCH, IGNITION, INDAK Price: $29.99 |
| 5 |
32128-19 |
NUT-HF Price: $0.99 |
| 5 |
589887201 |
SWITCH.PTO.10AMP.SEALED.6P.SPS Price: $49.99 |
| 6 |
574455501 |
KEY, IGNITION Price: $5.99 |
| 6 |
92-0625 |
FLAT PULLEY ASM Price: $75.60 |
| 7 |
531077202 |
CHOKE CABLE 48IN This part replaces 574206901. Price: $27.99 |
| 7 |
92-9722 |
V-PULLEY ASM Price: $211.52 |
| 8 |
119-4162 |
SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 8 |
597523904 |
THROTTLE This part replaces 582120301. Price: $49.99 |
| 9 |
589819501 |
BATTERY.STARTER.AGM.LEOCH.8AH Price: $109.99 |
| 9 |
86-1820-01 |
BRACKET-PULLEY Price: $18.96 |
| 10 |
32144-70 |
SCREW-HWHTF Price: $1.99 |
| 10 |
539103178 |
CAP IGNITION NUT Price: $3.99 |
| 11 |
3296-25 |
NUT-LOCK, NI Price: $1.34 |
| 11 |
539132624 |
KNOB - SHIFT Price: $6.99 |
| 12 |
32121-11 |
PIN-ROLL Price: $0.47 |
| 12 |
539102759 |
INSULATOR Price: $3.99 |
| 13 |
48-7081 |
GRIP-PLASTIC Price: $7.54 |
| 13 |
592872701 |
FUEL.GAUGE.LED.LEVEL.Z500 This part replaces 501628801. Price: $27.99 |
| 14 |
539114341 |
SCR #10-24 X 3/8 SKT HD BLK OX Price: $3.99 |
| 14 |
86-2400-01 |
LATCH-ARM Price: $109.47 |
| 15 |
325-5 |
SCREW-HH Price: $1.20 |
| 15 |
583254901 |
SCREW.1/4-20X.50-0T30 This part replaces 532199855. Price: $2.99 |
| 16 |
3290-483 |
WASHER-CONICAL Price: $7.61 |
| 17 |
86-1560 |
SPACER-CYLINDER, LIFT Price: $23.34 |
| 18 |
86-2600-01 |
WASHER-GUIDE, BELT This part replaces 86-2600. Price: $5.77 |
| 19 |
86-1490 |
END-ROD, LH THREAD Price: $84.31 |
| 20 |
3220-12 |
NUT-HEX JAM LH Price: $1.83 |
| 21 |
86-1570 |
ROD-THREADED Price: $55.04 |
| 22 |
3220-5 |
NUT-JAM This part replaces 3220-5-01. Price: $0.65 |
| 23 |
86-1550 |
END-ROD, RH THREAD Price: $79.70 |
| 24 |
325-7 |
SCREW-HH Price: $1.53 |
| 25 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 26 |
92-4033-01 |
TRAP-DOOR Price: $141.84 |
| 27 |
256-243 |
BEARING-FLANGE Price: $9.99 |
| 28 |
3296-25 |
NUT-LOCK, NI Price: $1.34 |
| 574514001 |
TIMER, |
SEAT Price: $79.99 574514001 |
| 589838501 |
HARNESS.ADAPTER.KAWASAKI.FX.PZ |
Price: $19.99 589838501 |
| 593777801 |
HARNESS.MAIN.Z500X.Z500.CARB |
This part replaces 581345101. Price: $219.99 593777801 |
