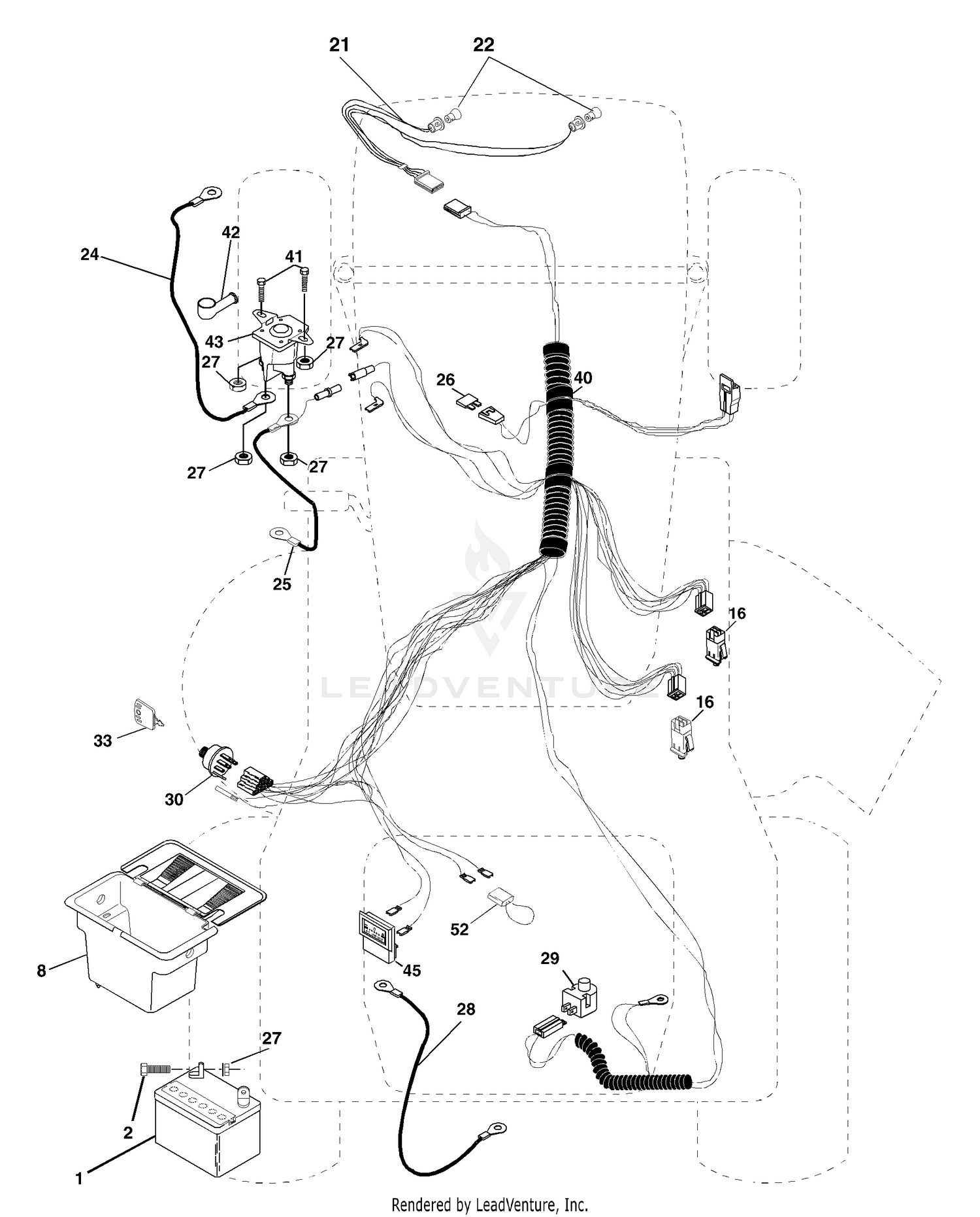

| Ref | Part Number | Description |
|---|
| 1 |
144925 |
Battery 12 Volt 25 Amp Price: Call Us |
| 1 |
93-8742 |
FOOTPAD-BRAKE Price: $27.95 |
| 2 |
27-8550-01 |
PARKING BRAKE PEDAL ASM Price: $324.09 |
| 2 |
74760412 |
Bolt Hex Hd 1/4-20unc X 3/4 Price: Call Us |
| 3 |
27-7510 |
RH BRAKE PEDAL ASM Price: $321.91 |
| 4 |
27-7490 |
LH BRAKE PEDAL ASM Price: $347.33 |
| 5 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 6 |
3256-51 |
WASHER-FLAT Price: $0.19 |
| 7 |
256-156 |
BUSHING-FLANGE Price: $12.99 |
| 8 |
156417 |
Case Battery Price: Call Us |
| 8 |
27-9270-01 |
PIVOT SHAFT MOUNT ASM Price: $81.41 |
| 9 |
3272-5 |
PIN-COTTER Price: $1.39 |
| 10 |
105-0065 |
PARKING BRAKE SHAFT ASM Price: $78.53 |
| 11 |
32149-2 |
NUT-KEPS Price: $2.39 |
| 12 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 13 |
105-0064 |
SPACER-SWITCH Price: $10.72 |
| 14 |
100-1270 |
SWITCH-PROXIMITY Price: $96.57 |
| 15 |
3290-360 |
SCREW-HH Price: $4.34 |
| 16 |
153664 |
Switch Interlock Push-In Price: Call Us |
| 16 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 17 |
119-4162 |
SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 18 |
323-14 |
SCREW-HH Price: $1.34 |
| 19 |
3274-47 |
SCREW-HSFH Price: $0.53 |
| 20 |
3231-21 |
SCREW-CARR Price: $0.76 |
| 21 |
166181 |
Harness Asm Light W/4152J Price: Call Us |
| 21 |
603773 |
LOCKNUT This part replaces 32153-2. Price: $2.09 |
| 22 |
3217-7 |
NUT-HEX Price: $0.28 |
| 22 |
4152J |
Bulb Light #1156 Price: Call Us |
| 23 |
93-8743 |
FOOTPAD-TURN Price: $27.95 |
| 24 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 24 |
4799J |
Cable Battery 6 Ga 11"red Price: Call Us |
| 25 |
146147 |
Cable Battery 6 Ga w/16 wire,red Price: Call Us |
| 26 |
175158 |
Fuse 20 AMP Price: Call Us |
| 27 |
73510400 |
Nut Keps Hex 1/4-20 unc Price: Call Us |
| 28 |
4207J |
Cable Ground 6 Ga 12" black Price: Call Us |
| 29 |
121305X |
Switch Plunger Nc Gray Price: Call Us |
| 30 |
175566 |
Switch Ign Price: Call Us |
| 33 |
140401 |
Key Ign Price: Call Us |
| 40 |
178437 |
Harness Ign Price: Call Us |
| 41 |
71110408 |
Bolt Blk Fin Hex 1/4-20 X 1/2 Price: Call Us |
| 42 |
131563 |
Cover Terminal Red Price: Call Us |
| 43 |
178861 |
Solenoid Price: Call Us |
| 45 |
121433X |
Ammeter Price: Call Us |
