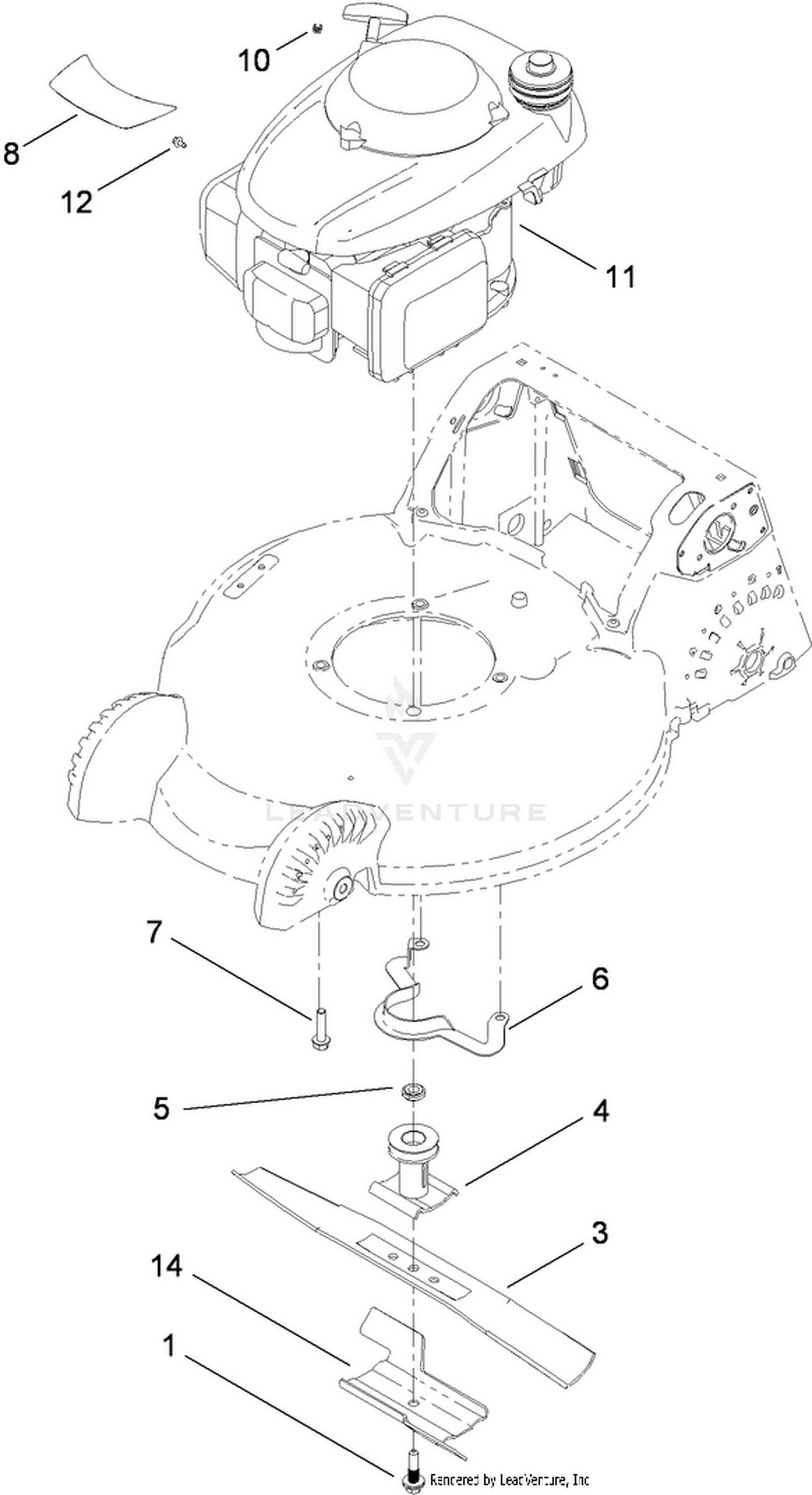

Engine and Blade Assembly
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 117-5270 | BOLT-BLADE Price: $2.30 |
| 3 | 133-8182-03 | BLADE-21IN This part replaces 108-0954-03. Price: $19.68 |
| 4 | 114-2774 | DRIVER-BLADE Price: $22.37 |
| 5 | 106-3999 | SPACER-DRIVER Price: $2.22 |
| 6 | 108-8110-03 | GUIDE-BELT Price: $10.46 |
| 7 | 32144-102 | SCREW-HWH Price: $3.19 |
| 8 | 120-1949 | DECAL-ENGINE Price: $10.03 |
| 10 | 2210-316 | STOP-ROPE This part replaces 92-1701. Price: $4.41 |
| 12 | 98-1394 | SCREW-HWH Price: $2.45 |
