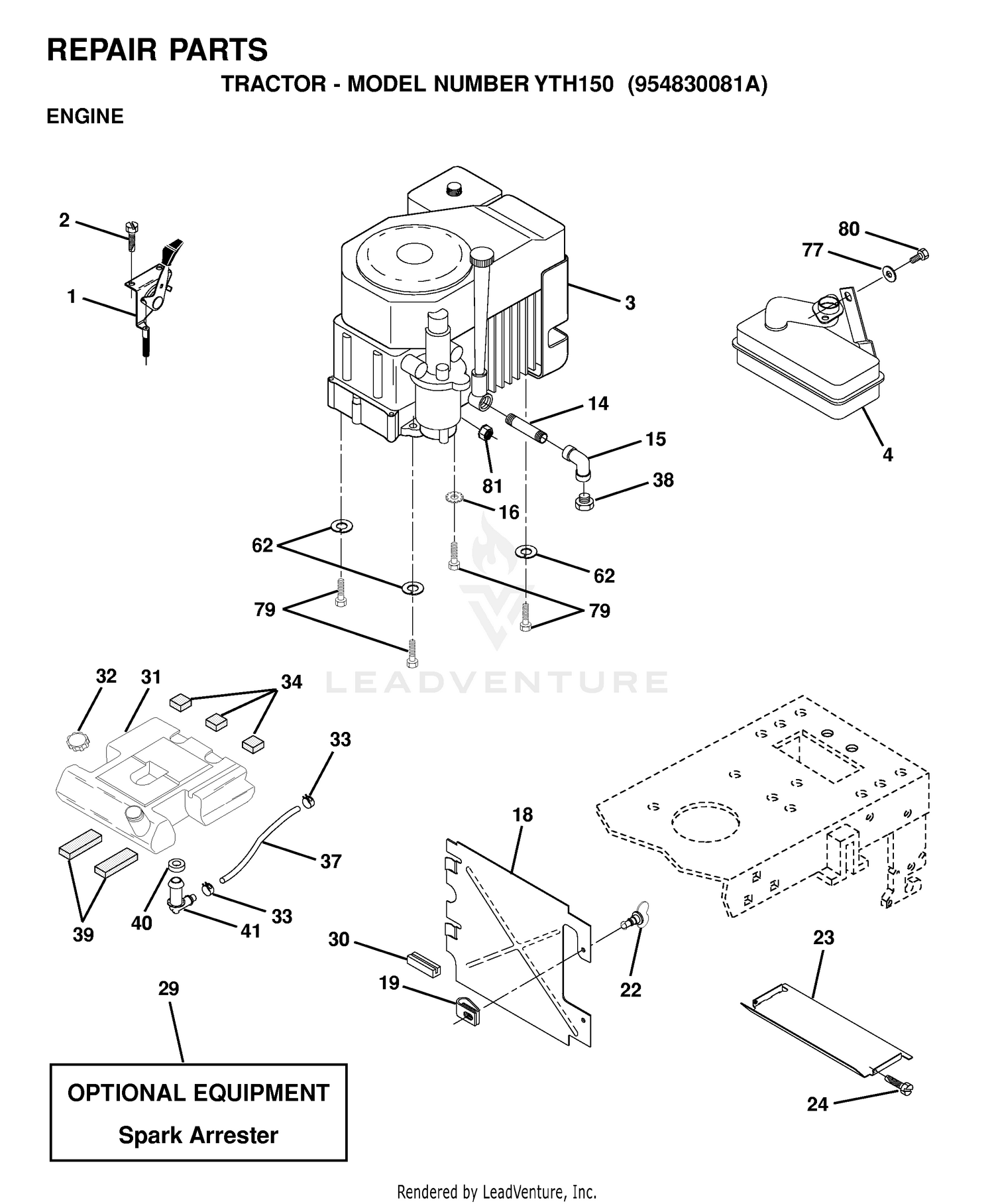

| Ref | Part Number | Description |
|---|
| 1 |
532170805 |
CONTROL.THROTTLE.LT/YT This part replaces 532141296. Price: $27.99 |
| 2 |
596582501 |
Bolts This part replaces 817720410. Price: $2.99 |
| 4 |
532159420 |
MUFFLER.KOHL.CV.SINGLE.W/PORT This part replaces 532137350. Price: $99.99 |
| 14 |
813280328 |
Std. Pipe Nipple 3/8 - 18 NPT x 3 1/2 Price: $4.99 |
| 15 |
532428287 |
VALUE.OIL.DRAIN This part replaces 813200300. Price: $14.99 |
| 16 |
596238701 |
Washers This part replaces 811050600. Price: $3.99 |
| 18 |
532136718 |
HEAT SHIELD Price: $3.79 |
| 19 |
532105839 |
RECEPTACLE LT Price: $3.99 |
| 20 |
532105838 |
RETAINER LT Price: $4.99 |
| 21 |
596582301 |
Washers This part replaces 819091016. Price: $2.99 |
| 22 |
532123650 |
STUD 1/4 TURN Price: $4.99 |
| 23 |
532128953 |
HEAT SHIELD Price: $3.08 |
| 24 |
817021008 |
SCREW Price: $3.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
532127057 |
STRIP Price: $2.38 |
| 32 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532140527. Price: $22.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 34 |
532106082 |
PAD-SPACER LT Price: $3.99 |
| 37 |
587044808 |
HOSE.1/4".LOW.PERM.FUEL.LN.8" This part replaces 532007833. Price: $5.99 |
| 39 |
532109227 |
PAD IDLER TI Price: $3.99 |
| 40 |
532003645 |
BUSHING OUTLET T This part replaces 532124952. Price: $3.99 |
| 41 |
532139277 |
STEM FUEL TANK Price: $6.99 |
| 77 |
734115441 |
WASHER - 26X6.5X1.6 This part replaces 819101216. Price: $0.99 |
| 79 |
874760620 |
BOLT This part replaces 817490620. Price: $4.99 |
| 80 |
874760508 |
Bolt, Hex Head, Fin. 5/16-18 x 1/2 Price: $3.99 |
| 81 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 532128861. Price: $2.99 |
