Engine

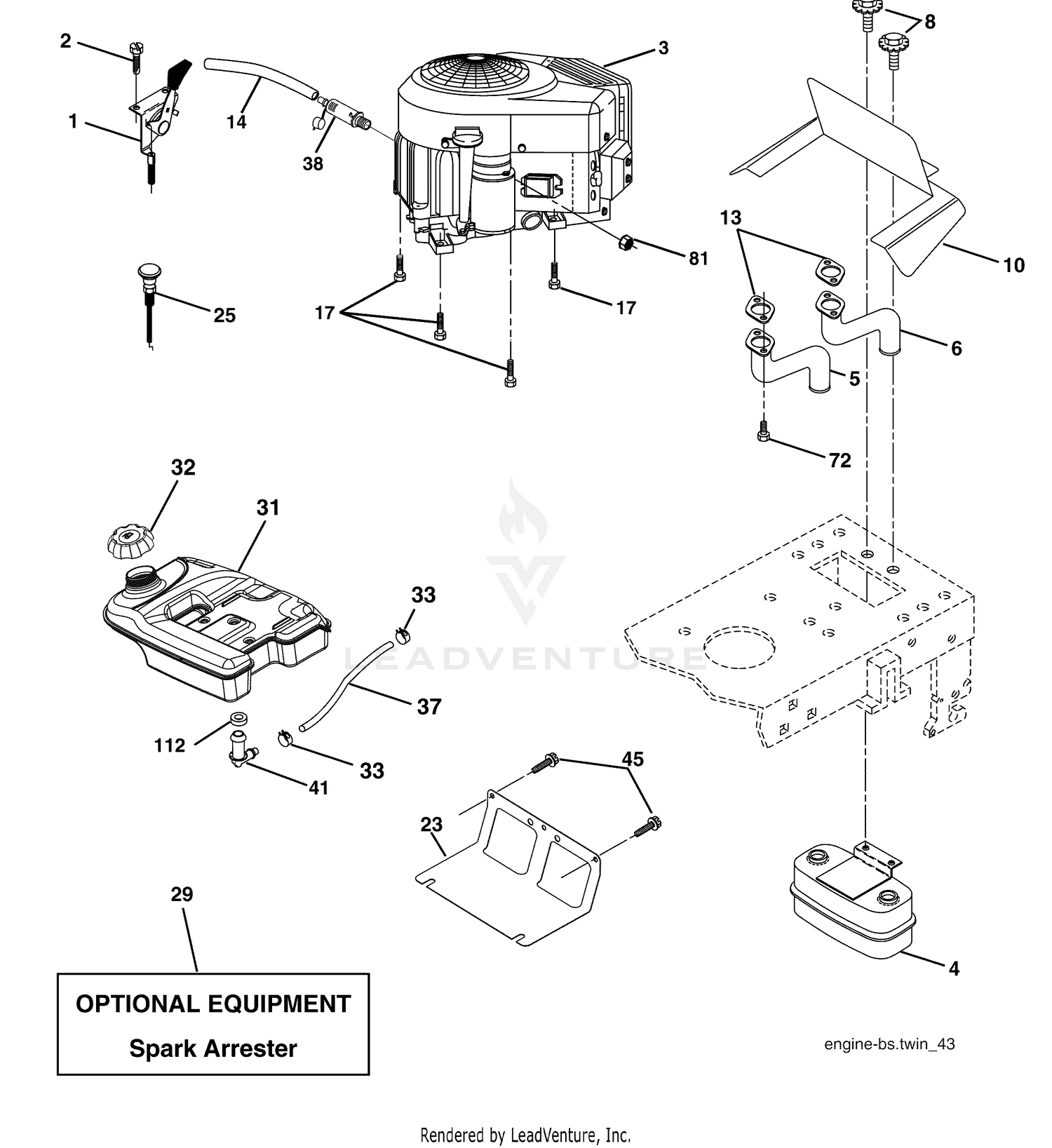

Engine

Parts (34)

RefPart NumberDescription
1 51-7850 NUT SET Price: $1.46
1 532190196 THROTTLE CONTROL This part replaces 532190454. Price: $32.99
2 596437001 Screws This part replaces 817720408. Price: $2.99
2 60-5330 DISCONTINUED Price: Call Us
4 51-7870 SCREW SET Price: $9.86
4 532149723 MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99
5 51-7890 SCREW SET Price: $1.90
5 581881101 EXHAUST.TUBE.LH.BS/TWIN This part replaces 532159955. Price: $27.99
6 581881001 EXHAUST.TUBE.RH.B&S.TWIN.INTEK This part replaces 532160589. Price: $22.99
7 60-5340 BRACKET ASM Price: $321.62
8 532171877 BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99
8 70-3320 BEARING This part replaces 60-5350. Price: $22.73
10 51-7910 ROTOR ASM Price: $389.44
10 531154901 SERVICE KIT HEAT SHIELD This part replaces 532162797. Price: $11.99
11 51-7920 BEARING This part replaces 60-5360. Price: $21.14
12 86-6430 BRACKET ASSY - REAR Price: $1,372.43
13 532165391 GASKET.MUFFLER Price: $9.99
13 86-6440 DISCONTINUED Price: Call Us
14 532148456 TUBE, DRAIN OIL ASM. Price: $5.99
14 70-2810 SPRING This part replaces 51-7980. Price: $1.91
15 51-7970 BRUSH Price: $13.13
16 51-7960 REGULATOR ASM Price: $607.91
17 51-7950 DISCONTINUED Price: Call Us
17 817060624 SCREW 3/8-16 X 1-1/2 Price: $4.99
23 531150701 SERVICE KIT SHIELD SHIELD.BROW This part replaces 532169837. Price: $19.99
25 532132781 CHOKE CONTROL This part replaces 532132782. Price: $22.99
32 532179124 FUEL CAP This part replaces 532181803. Price: $29.99
33 532123487 HOSE CLAMP Price: $3.99
37 587044854 HOSE.1/4".LOW.PERM.FUEL.LN.54" This part replaces 532142158. Price: $14.99
38 532428287 VALUE.OIL.DRAIN This part replaces 532181654. Price: $14.99
41 532139277 STEM FUEL TANK Price: $6.99
45 817000612 SCREW, 3/8-16X3/4 Price: $3.99
72 596134202 Screws This part replaces 532183906. Price: $2.99
81 586668901 NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99
