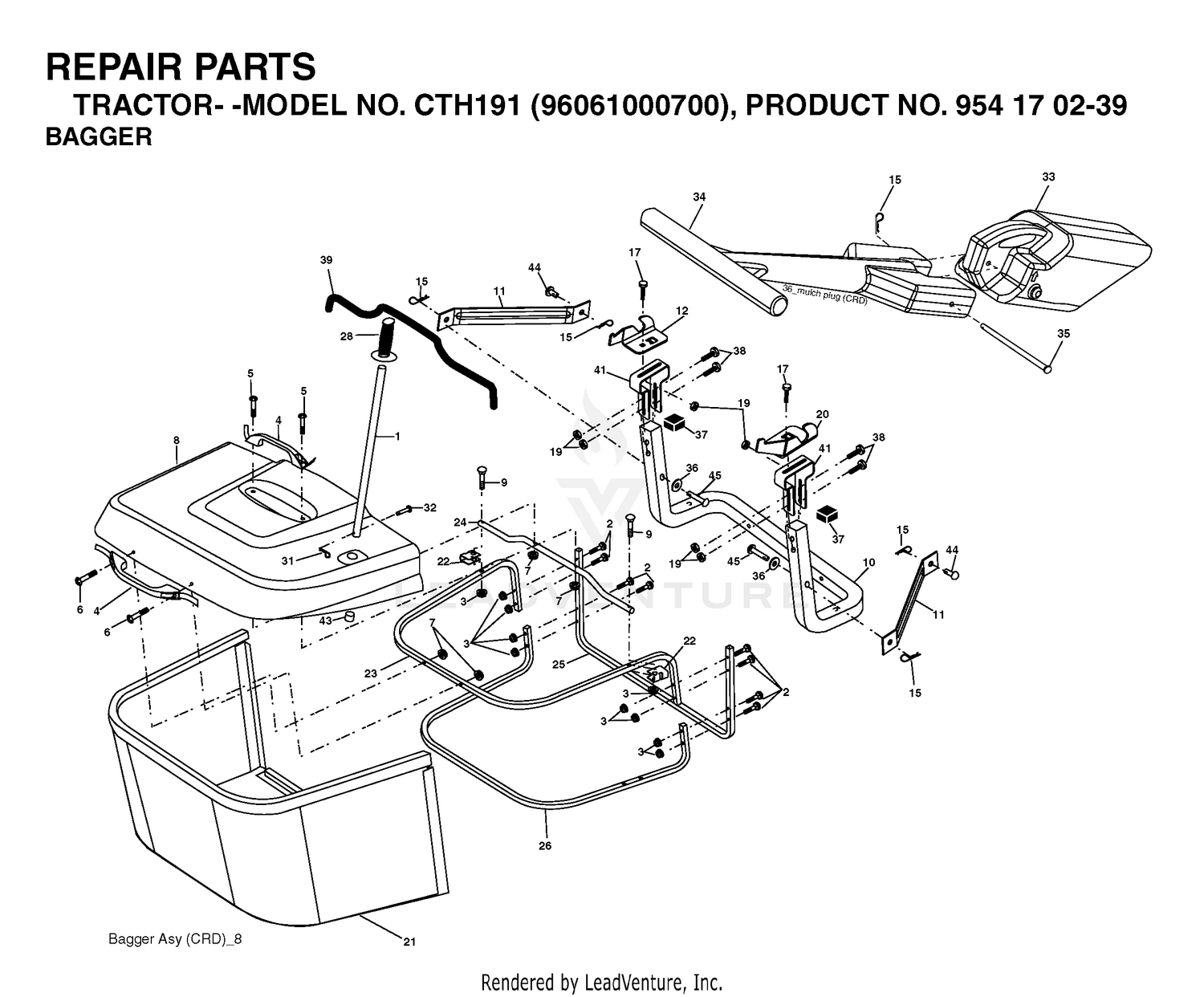

| Ref | Part Number | Description |
|---|
| 1 |
532170690 |
TUBE HANDLE BAGGER This part replaces 532165249. Price: $7.14 |
| 2 |
233-70 |
KNOB-STAR, THREE Price: $22.14 |
| 2 |
872140416 |
Bolt Carriage 1/4-20 x 2.0 Gr.5 Price: $4.99 |
| 3 |
32128-43 |
NUT-FLANGE Price: $0.94 |
| 3 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 4 |
3230-6 |
BOLT-CARR Price: $0.59 |
| 4 |
532169916 |
HANDLE.BAGGER.W/LVRS.BLK.CRD Price: $9.99 |
| 5 |
3234-1 |
SCREW-HHF Price: $1.62 |
| 5 |
874981024 |
SCREW.PAN.HEAD Price: $4.99 |
| 6 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 6 |
532750029 |
SCREW This part replaces 874981032. Price: $4.99 |
| 7 |
873401000 |
NUT Price: $6.99 |
| 8 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 9 |
138-6335 |
RETAINER-BATTERY This part replaces 66-2490. Price: $10.49 |
| 9 |
872140418 |
Bolt Carriage 1/4-20 x 2.25d x Gr.5 Price: $7.99 |
| 10 |
583110201 |
TUBE.SUPPORT.BAGGER.CRD This part replaces 532181282. Price: $59.99 |
| 11 |
32144-15 |
SCREW-HHFTF Price: $7.99 |
| 11 |
532165719 |
BRACKET.SUPPORT.UPPER.BAG.CRD Price: $9.99 |
| 12 |
583173701 |
BRKT.PIVOT.LH.CRD This part replaces 532188848. Price: $7.99 |
| 13 |
95-8796-03 |
SUPPORT-BATTERY Price: $144.00 |
| 14 |
99-3602 |
BATTERY COVER ASM Price: $36.64 |
| 15 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 16 |
95-8853 |
CABLE-BATTERY, POSITIVE Price: $95.21 |
| 17 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 17 |
95-8854 |
CABLE-BATTERY, NEGATIVE Price: $112.18 |
| 19 |
32148-6 |
NUT-CLINCH Price: $1.24 |
| 19 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 20 |
532188847 |
BRKT.PIVOT.RH.CRD Price: $7.99 |
| 21 |
532180880 |
GRASS BAG Price: $130.99 |
| 22 |
532165781 |
BRKT.SIDE.BAG.CRD Price: $2.99 |
| 23 |
532165782 |
TUBE.UPPER.BAG.CRD Price: $279.99 |
| 24 |
532165783 |
TUBE.PIVOT.BAG.CRD.BLACK Price: $22.99 |
| 25 |
532180124 |
NEEDS DESCRIPTION Price: Call Us |
| 26 |
532165785 |
TUBE.LOWER.BAG.CRD Price: $32.99 |
| 28 |
532165787 |
GRIP.HANDLE.BLACK Price: $5.99 |
| 31 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 32 |
532126875 |
RIVET,DRILLED Price: $2.99 |
| 33 |
532428683 |
MULCHING.PLUG.107.CRD.(2 2) This part replaces 532169380. Price: $37.99 |
| 34 |
532165570 |
HANDLE.MULCHER.92.CRD (2 2) Price: $44.99 |
| 35 |
532165572 |
PIN Price: $12.99 |
| 36 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 37 |
532175401 |
Plug Support Bagger CRD Price: Call Us |
| 38 |
872010520 |
BOLT.5/16-18X2.5 Price: $4.99 |
| 39 |
532416257 |
SEAL.BAGGER.CRD This part replaces 532180985. Price: $29.99 |
| 41 |
532169683 |
BRKT.VERT.ADJ.BAGGER.CRD Price: $4.99 |
| 43 |
532174083 |
PLUG, TUBING END Price: $5.99 |
| 44 |
532193312 |
NEEDS DESCRIPTION Price: Call Us |
| 45 |
532193313 |
NEEDS DESCRIPTION Price: Call Us |
