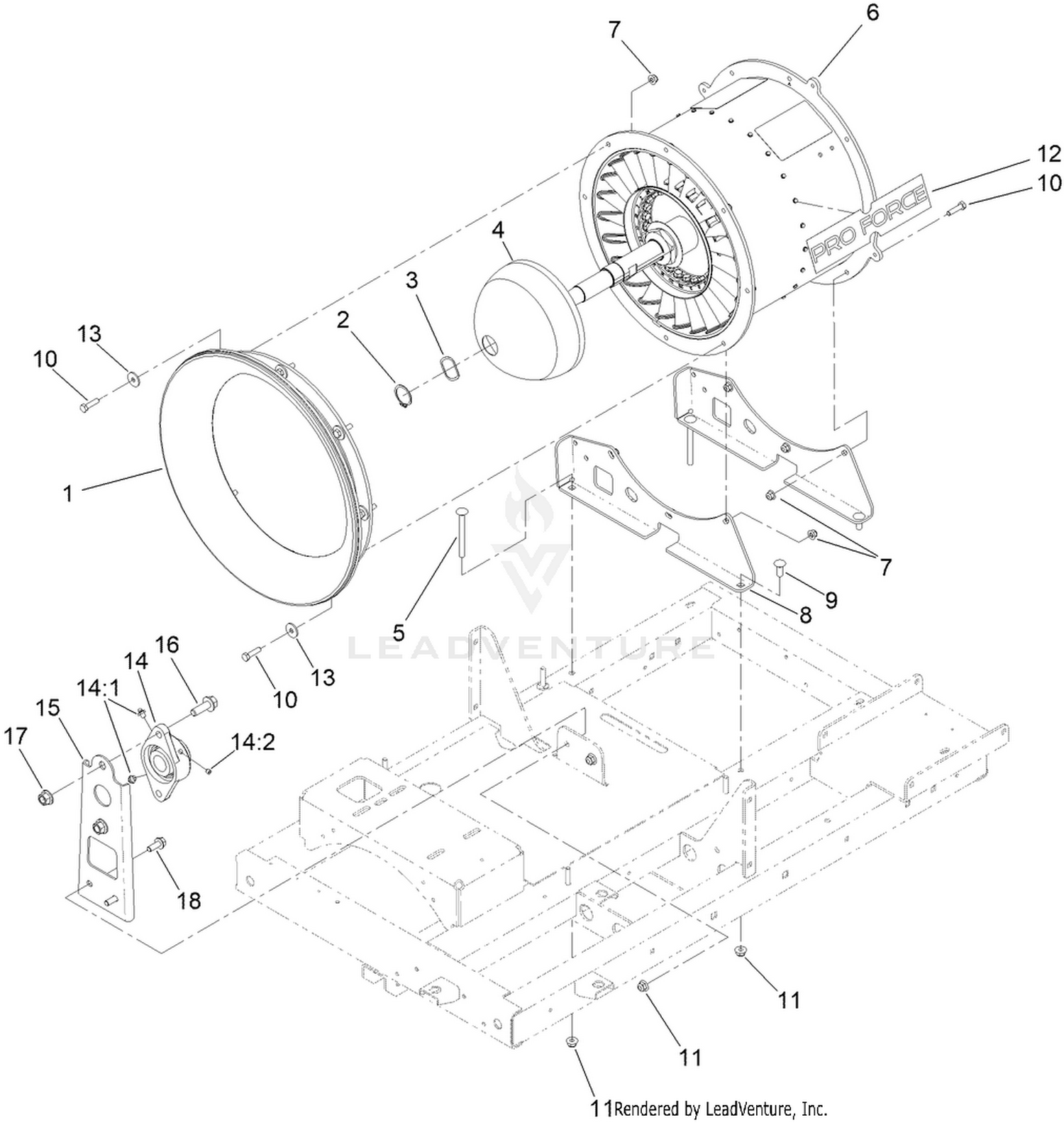

Turbine Mounting Assembly
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 117-8329 | BELL-INLET Price: $181.12 |
| 2 | 112-1952 | RING-SNAP, EXT Price: $1.02 |
| 3 | 93-4632 | WASHER-WAVEY Price: $4.05 |
| 4 | 131-9440 | CAP-FRONT Price: $60.15 |
| 5 | 3231-24 | SCREW-CARR Price: $1.36 |
| 6 | 145-7489 | SERVICE-TURBINE, KIT Price: $3,366.65 |
| 7 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 8 | 140-6983-01 | MOUNT-HOUSING Price: $79.43 |
| 9 | 3231-22 | SCREW-CARR Price: $0.72 |
| 10 | 322-6 | SCREW-HH Price: $0.45 |
| 11 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 12 | 115-5102 | DECAL Price: $27.37 |
| 13 | 115-7109 | WASHER-FLAT Price: $0.88 |
| 14 | 94-7484 | BEARING Price: $152.51 |
| 15 | 144-3316-01 | MOUNT-BEARING Price: $41.95 |
| 16 | 100-6116 | SCREW-HHF Price: $6.41 |
| 17 | 99-5107 | NUT-LOCK Price: $1.77 |
