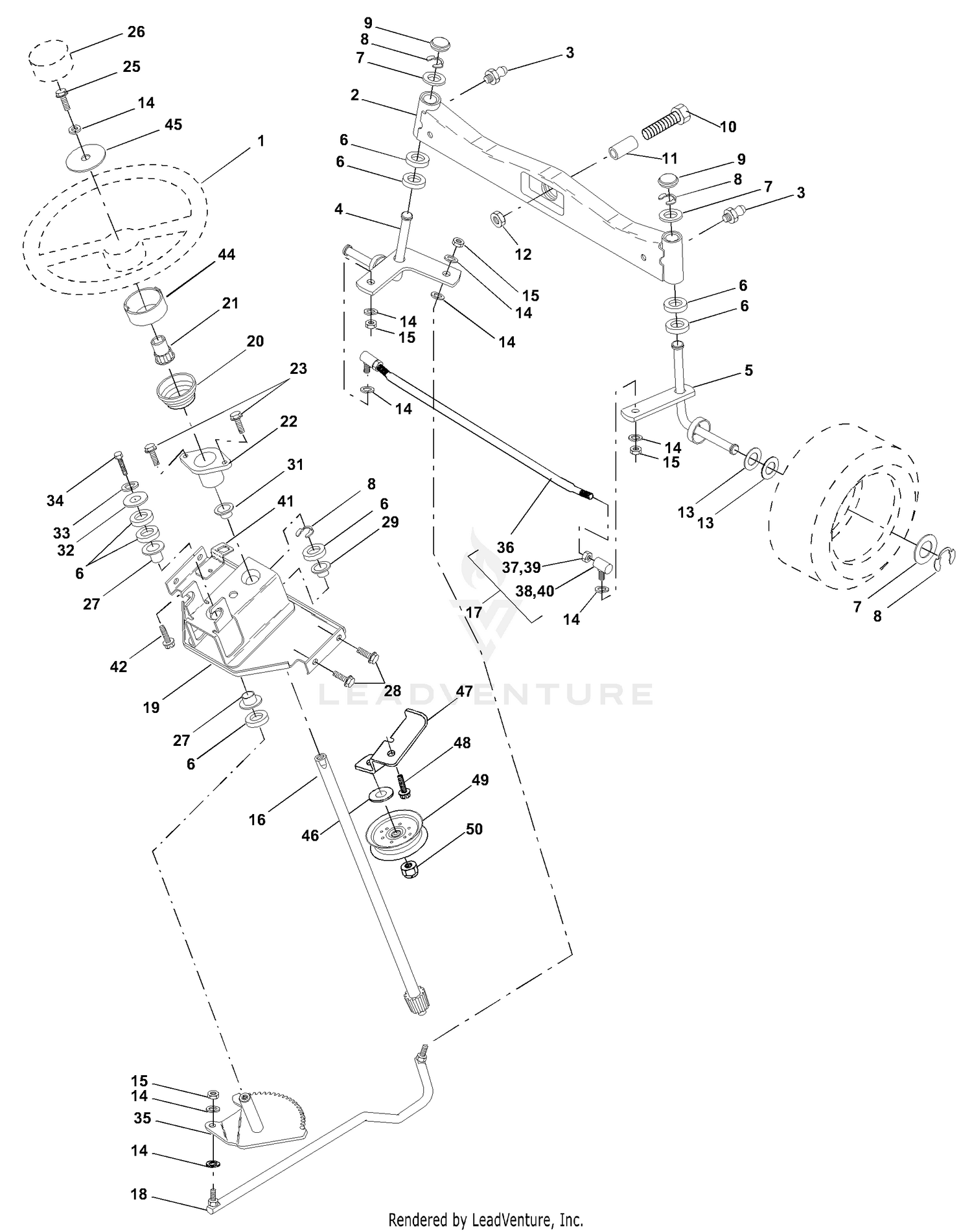

| Ref | Part Number | Description |
|---|
| 1 |
532166627 |
STEERING WHEEL Price: $64.99 |
| 1 |
75-3480 |
FRAME-UPPER Price: $323.32 |
| 2 |
108-6703 |
ADJUSTER-SEAT This part replaces 66-8530. Price: $183.47 |
| 2 |
532178557 |
AXLE.FRONT.CAST.MACHINE.W/ZERK This part replaces 532137094. Price: $179.99 |
| 3 |
532183226 |
FITTING.GREASE.TAPERED This part replaces 532124836. Price: $4.99 |
| 3 |
66-8520 |
BUMPER-DOWNSTOP Price: $37.56 |
| 4 |
532161849 |
SPINDLE ASSY LH Price: $27.99 |
| 4 |
82-9060 |
DISCONTINUED Price: Call Us |
| 5 |
532161848 |
SPINDLE ASM RH Price: $24.99 |
| 5 |
76-1960 |
KNOB KIT This part replaces 77-2870. Price: $357.33 |
| 6 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 6 |
76-1910 |
DISCONTINUED Price: Call Us |
| 7 |
532121748 |
WASHER Price: $3.99 |
| 7 |
66-8560 |
NUT-PUSH Price: $5.97 |
| 8 |
76-1940 |
SPRING-EXTENSION Price: $66.03 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 9 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 9 |
76-1920 |
SLEEVE-BEARING Price: $22.50 |
| 10 |
106-1031 |
TENSION ADJUSTER KNOB ASM This part replaces 76-1930. Price: $68.93 |
| 10 |
874781044 |
Bolt, Fin Hex 5/8-11 x 2-3/4 Price: $3.99 |
| 11 |
532136518 |
TUBE, PIVOT AXLE Price: $7.99 |
| 11 |
66-8610 |
DISCONTINUED Price: Call Us |
| 12 |
583612401 |
LOCKNUT M This part replaces 873901000. Price: $2.99 |
| 12 |
66-9290 |
SPACER-SUSPENSION Price: $3.60 |
| 13 |
532121749 |
WASHER Price: $2.99 |
| 13 |
75-3580 |
PLATE-SEAT Price: $213.06 |
| 14 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 14 |
75-3510 |
BOLT-SHOULDER Price: $14.55 |
| 15 |
80-4860 |
PIN-CLEVIS Price: $6.13 |
| 15 |
873610600 |
NUT This part replaces 532124701. Price: $2.99 |
| 16 |
532145103 |
SHAFT ASM, STEERING Price: $99.99 |
| 16 |
75-3530 |
SPRING-COMPRESSION Price: $31.98 |
| 17 |
3285-19 |
PIN-GROOVE This part replaces 75-3540. Price: $1.79 |
| 18 |
532175572 |
DRAGLINK, BALL JOINT (3SPG1401 This part replaces 532137155. Price: $64.99 |
| 18 |
75-3550 |
BUMPER-SEAT Price: $18.48 |
| 19 |
532156011 |
SUPPORT ASM., STEERING VGT Price: $22.99 |
| 19 |
76-2940 |
BUMPER Price: $9.73 |
| 20 |
532163887 |
BOOT.STEERING.BLACK.STEALTH This part replaces 532177592. Price: $5.99 |
| 20 |
75-3570 |
TIP-VINYL Price: $2.48 |
| 21 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 21 |
532159945 |
STEERING WHEEL ADAPTOR Price: $6.99 |
| 22 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 22 |
532155108 |
KIT.BUSHING.STEERING. This part replaces 532155105. Price: $6.99 |
| 23 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 23 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 24 |
3296-44 |
NUT-LOCK, NI Price: $2.46 |
| 25 |
32128-26 |
NUT-FLANGE Price: $5.89 |
| 25 |
596564401 |
Bolts This part replaces 874780616. Price: $3.99 |
| 26 |
3256-46 |
WASHER-FLAT Price: $5.77 |
| 26 |
532172092 |
INSERT.CAP.STRG.WH (3 2) (L B) This part replaces 532166626. Price: $12.99 |
| 27 |
3256-5 |
WASHER-FLAT Price: $0.27 |
| 27 |
532003366 |
BEARING.STEERING.COLUMN This part replaces 532124937. Price: $3.99 |
| 28 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 28 |
93-3164 |
CAP Price: $11.64 |
| 29 |
532104239 |
BEARING-FLANGE GT Price: $9.99 |
| 29 |
93-3163 |
SPRING Price: $26.01 |
| 30 |
93-3165 |
BRACKET Price: $37.47 |
| 31 |
322-6 |
SCREW-HH Price: $0.45 |
| 31 |
532138136 |
BUSHING.NYLINER. Price: $8.99 |
| 32 |
3253-33 |
WASHER-LOCK Price: $1.19 |
| 32 |
819111610 |
WASHER Price: $4.99 |
| 33 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 34 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874780512. Price: $3.99 |
| 35 |
531165701 |
SERVICE KIT GEAR.ASM.SECT This part replaces 532138059. Price: $49.99 |
| 36 |
532186799 |
ROD.TIE.NON-ADJUSTABLE This part replaces 532176585. Price: $59.99 |
| 37 |
873360600 |
NUT Price: $4.99 |
| 38 |
532121160 |
JOINT.RH This part replaces 532109850. Price: $19.99 |
| 39 |
873700600 |
NUT Price: $2.99 |
| 40 |
532109851 |
JOINT.LH Price: $27.99 |
| 41 |
532155246 |
BRACKET INTERLOCK Price: $4.99 |
| 42 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 44 |
532160135 |
EXT.STEERING.PREM.BLACK This part replaces 532177593. Price: $4.99 |
| 45 |
819132411 |
Washer 13/32 x 1-1/20 x 11 Ga. Price: $2.99 |
| 46 |
596134901 |
GSPH This part replaces 819131410. Price: $2.99 |
| 47 |
529846001 |
SERVICE.KIT BRKT.ASM.IDLER.STA This part replaces 532177863. Price: $7.99 |
| 48 |
817000612 |
SCREW, 3/8-16X3/4 This part replaces 817060612. Price: $3.99 |
| 49 |
597025001 |
CLG This part replaces 532131494. Price: $22.99 |
