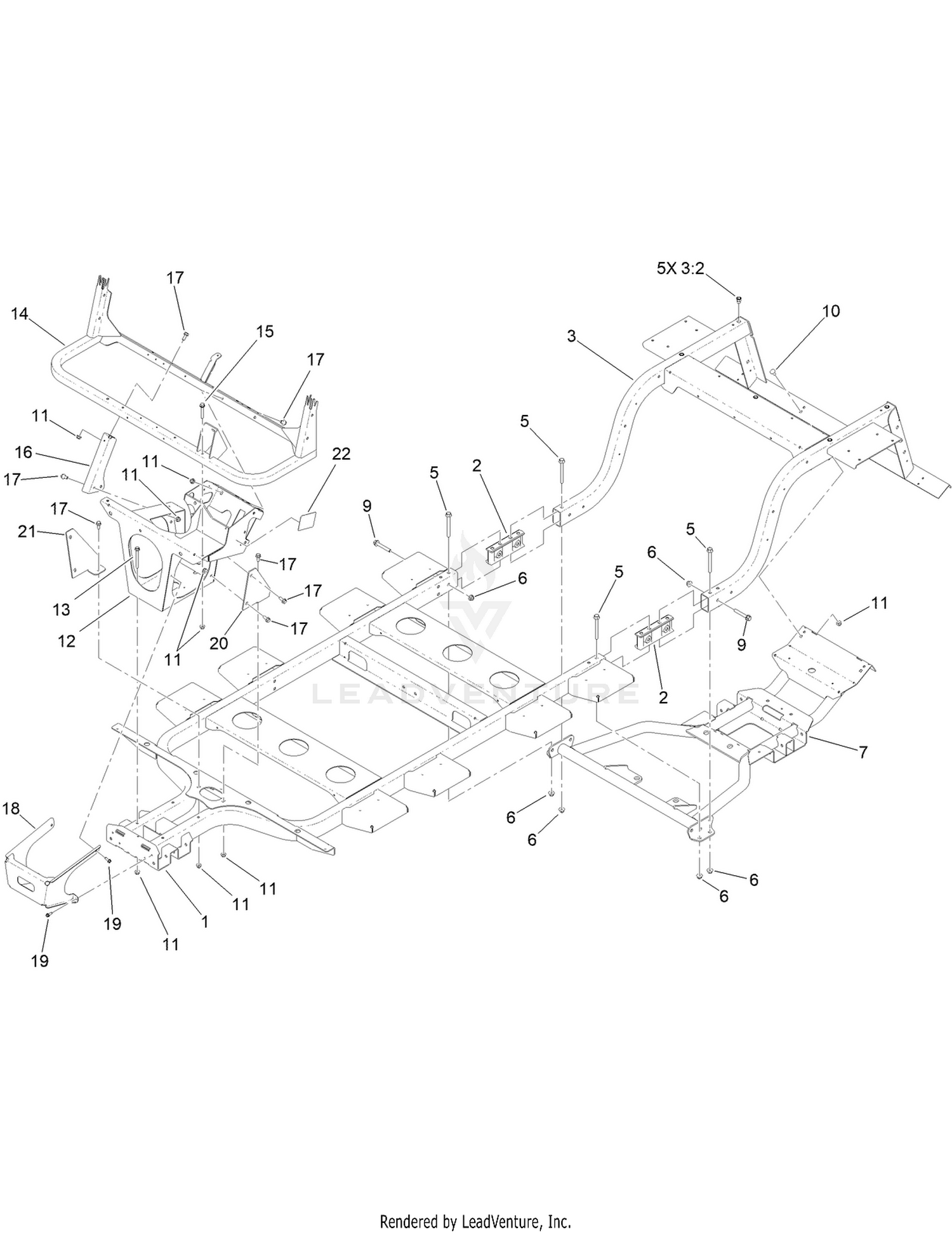

Frame Assembly
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 140-0798 | FRONT FRAME ASM Price: Call Us |
| 2 | 144-5479 | CONNECTOR-FRAME Price: $19.21 |
| 3 | 144-5465 | REAR FRAME ASM Price: Call Us |
| 5 | 139-3370 | SCREW-HF Price: $5.08 |
| 6 | 139-3380 | NUT-HF Price: $0.76 |
| 7 | 140-9775 | SUBFRAME ASM Price: Call Us |
| 9 | 144-5559 | SCREW-HHF Price: $6.79 |
| 10 | 3230-1 | BOLT-CARR Price: $1.49 |
| 11 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 12 | 140-0777-03 | SHOCK TOWER ASM Price: Call Us |
| 13 | 126-4687 | SCREW-HHF Price: $1.02 |
| 14 | 140-9712-03 | CANOPY SUPPORT ASM Price: $179.52 |
| 15 | 140-9909 | SCREW-HHF Price: $2.10 |
| 16 | 161-2017-03 | SUPPORT-CANOPY This part replaces 140-0759-03. Price: $10.54 |
| 17 | 3234-47 | SCREW-HHF Price: $1.79 |
| 18 | 140-0940-03 | BRACKET-SUPPORT, BUMPER Price: $89.75 |
| 19 | 49-2040 | SCREW-HWHTF Price: $1.99 |
