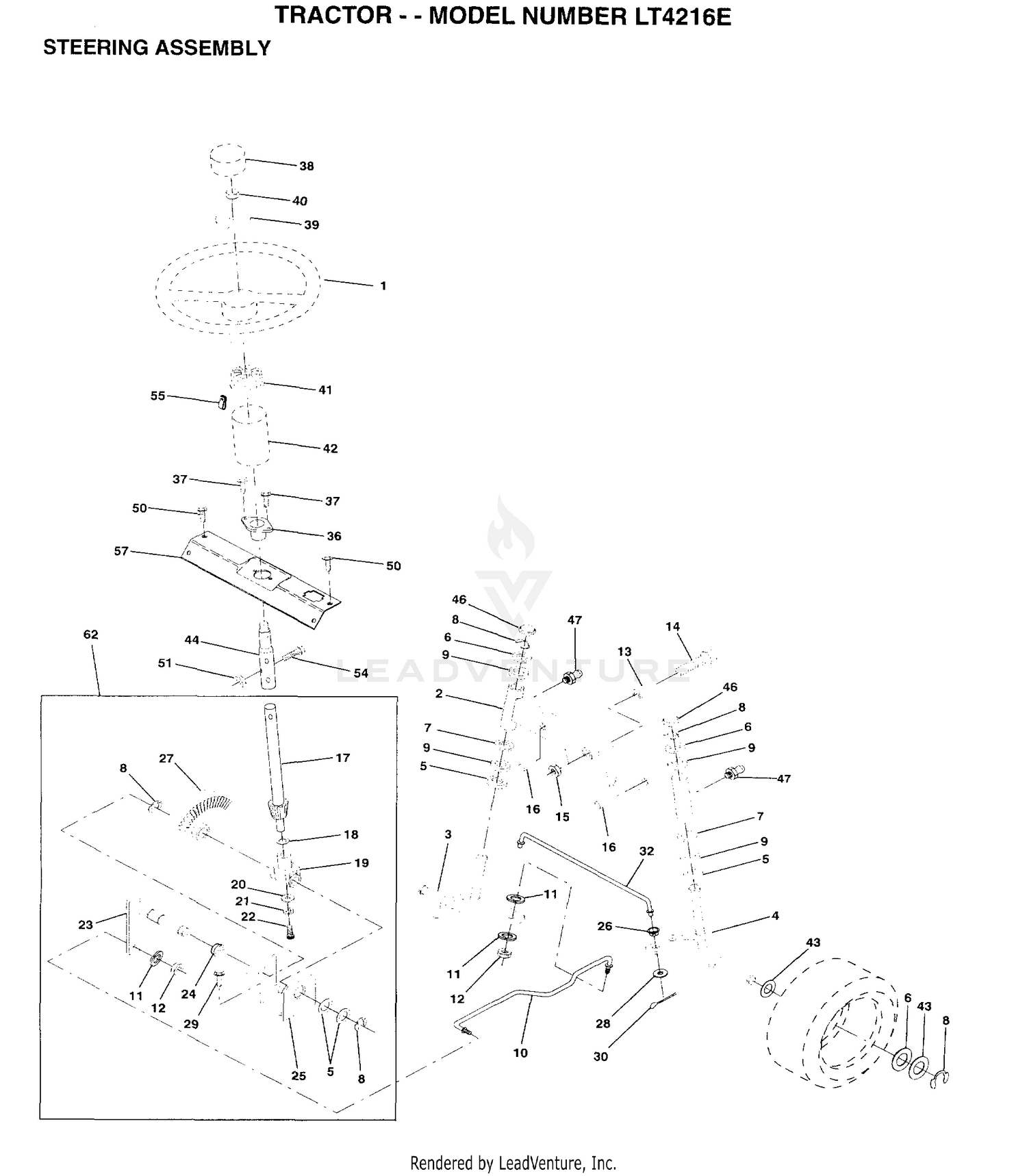

| Ref | Part Number | Description |
|---|
| 1 |
140044 |
WHEEL STR AYP BLK Price: Call Us |
| 1 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 2 |
142033 |
AXLE ASM FRONT Price: Call Us |
| 2 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 3 |
11-0160 |
ROLLER SHAFT SCREW ASM Price: $28.16 |
| 3 |
135227 |
SPINDLE LH Price: Call Us |
| 4 |
135228 |
SPINDLE RH Price: Call Us |
| 4 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 5 |
3220-3 |
NUT-HJ Price: $0.28 |
| 5 |
6266H |
WASHER .T Price: Call Us |
| 6 |
121748X |
WASHER Price: Call Us |
| 6 |
147-3120 |
BALL JOINT RECEIVER ASM This part replaces 99-1460. Price: $16.35 |
| 7 |
19272016 |
WASHER Price: Call Us |
| 8 |
12000029 |
RING Price: Call Us |
| 8 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 9 |
3366R |
COL. SRTG. BEAR. Price: Call Us |
| 9 |
5-1226 |
WASHER Price: $3.90 |
| 10 |
10-8110 |
WASHER-THRUST Price: $1.09 |
| 10 |
130468 |
SUB= 532130468 Price: Call Us |
| 11 |
10040600 |
Washer, Lock Hvy. Hlcl. Spr. 3/8 Price: Call Us |
| 11 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 12 |
73610600 |
SUB= 7810H Price: Call Us |
| 12 |
HY4486 |
NUT UNF 1/2"NYLOC EXT THIN5/16 This part replaces 283-8. Price: $1.36 |
| 13 |
110438X |
BEARING Price: Call Us |
| 13 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 14 |
105-3822 |
HYD CYLINDER ASM Price: $533.45 |
| 14 |
74011056 |
BOLT HEX 5/8-11 Price: Call Us |
| 15 |
322-1 |
SCREW-HH Price: $0.22 |
| 16 |
105-3828 |
SPACER Price: $5.10 |
| 16 |
132624 |
AXLE PIN Price: Call Us |
| 17 |
140-5248 |
PIN-PIVOT RAM, WELDED This part replaces 10-6060. Price: $25.64 |
| 17 |
140176 |
SHAFT ASM STEERIN Price: Call Us |
| 18 |
115-3259 |
KIT-SERVICE, PIN This part replaces 10-6110. Price: $39.21 |
| 18 |
57079 |
THRUST WASHER Price: Call Us |
| 19 |
10-7820 |
PIVOT HINGE ASM Price: $504.57 |
| 19 |
124035X |
SUPPORT.SHAFT Price: Call Us |
| 20 |
126684X |
SUB= 532126684 Price: Call Us |
| 20 |
137-9706 |
DECAL-WARNING This part replaces 93-8064. Price: $4.48 |
| 21 |
10040400 |
LOCKWASHER Price: Call Us |
| 21 |
136-8484 |
FRAME-PULL, LH This part replaces 104-2054. Price: $382.66 |
| 22 |
138-6311 |
ARM-PULL-ASSEMBLY-LH This part replaces 92-0586. Price: $29.91 |
| 22 |
71100410 |
SCREW.SCKTHD.CAP Price: Call Us |
| 23 |
127501 |
SUB= 918127501 Price: Call Us |
| 23 |
133-2337 |
ROLLER ASM This part replaces 99-4277. Price: $176.14 |
| 24 |
109816X |
NYLINER T Price: Call Us |
| 24 |
3290-317 |
WASHER-SPRING Price: $1.40 |
| 25 |
131-4295 |
PIN-PIVOT This part replaces 10-6090. Price: $51.39 |
| 26 |
126847X |
BUSHING.DRAGLINK Price: Call Us |
| 26 |
138-6303 |
ARM-PULL-ASSEMBLY-RH This part replaces 92-0585. Price: $29.91 |
| 27 |
136874 |
GEAR SECTOR Price: Call Us |
| 27 |
21-8470 |
SHAFT-ROLLER Price: $62.10 |
| 28 |
19131416 |
WASHER Price: Call Us |
| 28 |
74-3730 |
SPACER-SPINDLE, REAR Price: $5.06 |
| 29 |
17490612 |
SCREW Price: Call Us |
| 29 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 30 |
76020412 |
COTTER PIN Price: Call Us |
| 30 |
83-1690 |
HOSE-HYD Price: $68.48 |
| 31 |
63-3850 |
HOSE ASM Price: $83.26 |
| 32 |
130465 |
TIE ROD Price: Call Us |
| 36 |
102803X |
SUB= 918102803X Price: Call Us |
| 37 |
17431008 |
SUB= 98000165 Price: Call Us |
| 38 |
140045 |
CAP STEER AYP Price: Call Us |
| 39 |
19133808 |
WASHER T Price: Call Us |
| 40 |
7810H |
GRIPCO NUT Price: Call Us |
| 41 |
104820X |
ADAPTER-WHEEL LT Price: Call Us |
| 42 |
140216 |
BOOT SHAFT STEER Price: Call Us |
| 43 |
121749X |
WASHER Price: Call Us |
| 44 |
146690 |
SUB= 154306 Price: Call Us |
| 46 |
121232X |
CAP Price: Call Us |
| 47 |
6855M |
ZERK M Price: Call Us |
| 50 |
17490412 |
SCREW HEX CRT Price: Call Us |
| 51 |
7380050 |
NUT LK HEX W/INS 5/16-18 UNC P Price: Call Us |
| 54 |
74780520 |
BOLT Price: Call Us |
| 55 |
140285 |
CLIP TINNERMAN Price: Call Us |
