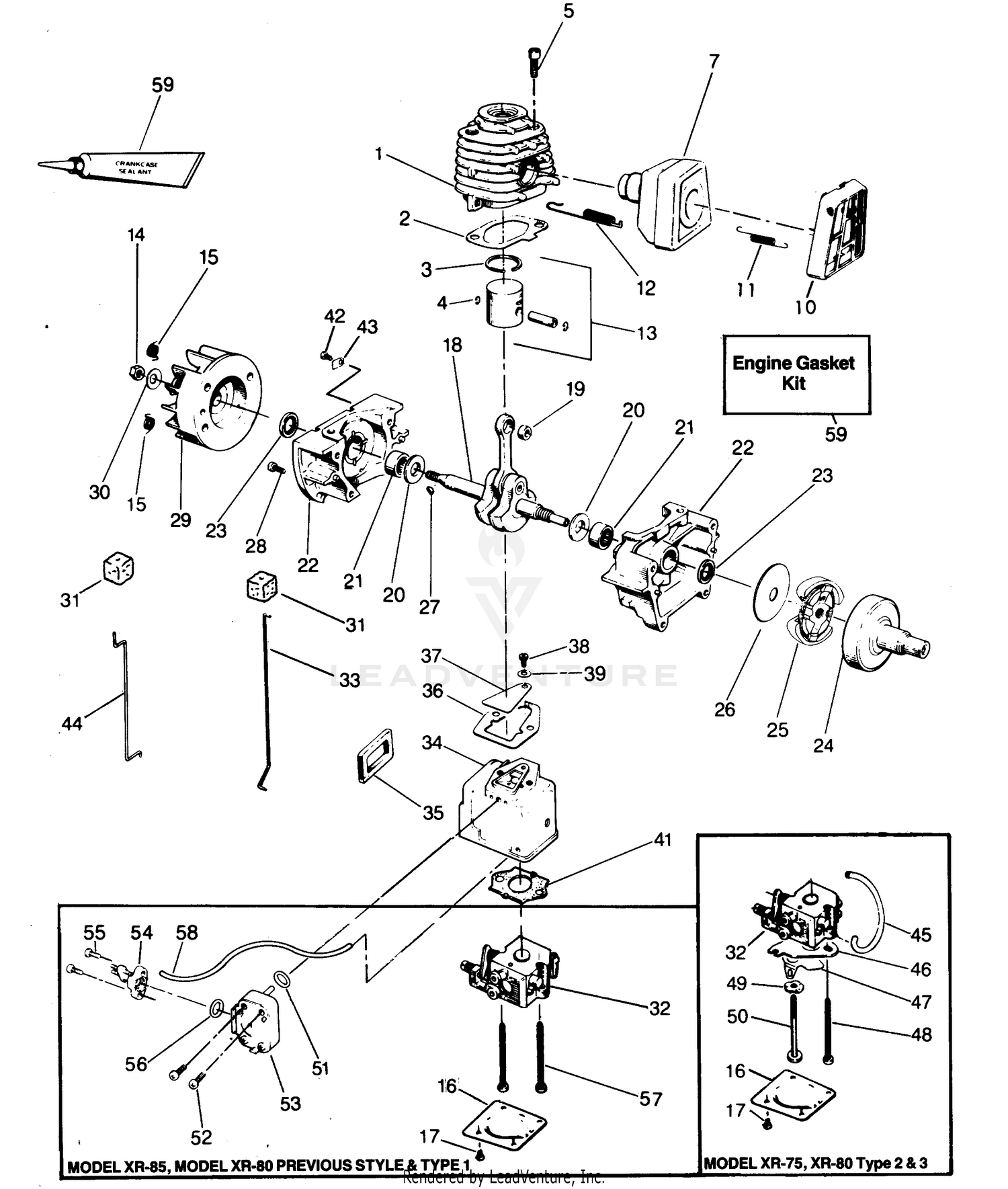

| Ref | Part Number | Description |
|---|
| 1 |
3220-5 |
NUT-JAM Price: $0.65 |
| 1 |
530012070 |
Model XR-75 Price: $3.33 |
| 1 |
530012071 |
Model XR-80,XR-85 Price: $3.33 |
| 2 |
29-3720 |
DISCONTINUED Price: Call Us |
| 3 |
42-2140 |
HOC BAR This part replaces 29-3770. Price: $89.92 |
| 3 |
530024302 |
Model XR-75 Price: $6.99 |
| 3 |
530024929 |
Model XR-85, XR-80 Type 1 & 2 Price: $5.99 |
| 3 |
530026681 |
Model XR-80 - Type 3 Price: Call Us |
| 4 |
530015162 |
Retainer - Wrist Pin Price: $1.99 |
| 4 |
99-5686 |
RH SOCKET ASM This part replaces 21-0140. Price: $99.81 |
| 5 |
32136-4 |
NUT-HEX,SLOTTED Price: $1.56 |
| 5 |
530015239 |
Screw #1/4 - 20 x 3/4" - Hex Soc. Hd. - Cylinder Price: $1.99 |
| 6 |
3290-255 |
PIN-COTTER, HAIR Price: $7.89 |
| 7 |
29-3680-01 |
REEL SIDE PLT WA This part replaces 29-3680. Price: $329.91 |
| 8 |
43-8640 |
HOC PIN WA This part replaces 29-3780. Price: $37.38 |
| 9 |
3253-24 |
WASHER-LOCK/SP Price: $0.37 |
| 10 |
322-6 |
SCREW-HH Price: $0.45 |
| 10 |
530024855 |
Guard - Muffler Price: $5.99 |
| 11 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 11 |
530024932 |
Spring - Muffler Guard Price: $3.33 |
| 12 |
29-3950 |
DISCONTINUED Price: Call Us |
| 12 |
530036409 |
Muffler Spring This part replaces 530024903. Price: $1.99 |
| 13 |
3296-5 |
NUT-HEX Price: $3.09 |
| 13 |
530022198 |
Model XR-75 Price: $3.33 |
| 13 |
530022238 |
Model XR-85,XR-80 Previous Style & Type 1 & 2 Price: $3.33 |
| 13 |
530069241 |
Model XR-80 - Type 3 Price: $44.99 |
| 14 |
29-3960 |
DISCONTINUED Price: Call Us |
| 14 |
530626605 |
Nut - Flywheel Price: $1.99 |
| 15 |
29-3980 |
DISCONTINUED Price: Call Us |
| 15 |
530042049 |
Spring - Starter Dog Price: $3.33 |
| 16 |
29-3990 |
DISCONTINUED Price: Call Us |
| 16 |
530026029 |
Model XR-80,XR-85 Price: $3.99 |
| 17 |
323-7 |
SCREW-HH Price: $0.65 |
| 17 |
530015235 |
Screw - #8 - 18 x 9/16" - Pan Hd Carburetor Case Cover Price: Call Us |
| 18 |
29-3730 |
DISCONTINUED Price: Call Us |
| 18 |
530010844 |
Model XR-80 - Type 3 Only Price: $3.33 |
| 18 |
530022202 |
Model XR-75,XR-85, XR-80 Previous Style & Type 1, 2 Price: $3.33 |
| 19 |
39-0670 |
BED BAR WA Price: $753.30 |
| 19 |
530032057 |
Model XR-75,XR-85, XR-80 Previous Style & Type 1, 2 Price: $3.28 |
| 19 |
530032092 |
Model XR-80 - Type 3 Only Price: $6.99 |
| 20 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 20 |
530015351 |
Washer - Thrust - Crankcase Price: $3.99 |
| 21 |
29-3420 |
DISCONTINUED Price: Call Us |
| 21 |
530032029 |
Bearing - Crankshaft Price: $7.99 |
| 22 |
29-3440 |
DISCONTINUED Price: Call Us |
| 22 |
530010757 |
Crankcase Ass'y. (Inc. #21, 23 & Qty. 1 of #28) Price: Call Us |
| 23 |
254-79 |
BEARING-ROLLER, CUP Price: $6.39 |
| 24 |
254-78 |
BEARING-CONE Price: $12.22 |
| 24 |
530010797 |
Drum & Coupling Assembly Price: $3.33 |
| 25 |
3296-15 |
NUT-LOCK, NI Price: $1.75 |
| 25 |
530069194 |
Kit - Clutch Assembly (Inc. Clutch Washer) - See Service Ref. 1 & 7 Price: $17.99 |
| 26 |
253-117 |
SEAL-OIL Price: $5.72 |
| 26 |
530069196 |
Kit - Clutch Washer Price: $3.33 |
| 27 |
5-4038 |
WEAR SLEEVE Price: $16.36 |
| 27 |
530015126 |
Key - Flywheel Price: $1.99 |
| 28 |
29-3920 |
DISCONTINUED Price: Call Us |
| 28 |
530015369 |
Screw - #10 - 24 x 5/8" Fil. Hd. - Crankcase Price: $0.04 |
| 29 |
3219-3 |
NUT-HEX Price: $0.34 |
| 29 |
530039114 |
Flywheel Assembly (Inc. #15) Price: Call Us |
| 30 |
3220-3 |
NUT-HJ Price: $0.28 |
| 30 |
530015127 |
Washer - Flywheel Price: $1.99 |
| 31 |
3290-414 |
WASHER-BELLEVILLE Price: $1.97 |
| 32 |
29-3910 |
DISCONTINUED Price: Call Us |
| 32 |
530035183 |
Carburetor (See Service Ref. 2 - for Model XR-75 only) Price: $65.89 |
| 33 |
251-273 |
DISCONTINUED Price: Call Us |
| 33 |
530024902 |
Model XR-75, XR-80 Type 2 & 3 Price: $3.33 |
| 33 |
530026177 |
Model XR-85, XR-80 - Previous Style & Type 1 Price: $3.33 |
| 34 |
29-3930 |
DISCONTINUED Price: Call Us |
| 34 |
530024409 |
Model XR-75, Model XR-80 - Type 2 & 3 Price: $9.99 |
| 34 |
530026046 |
Model XR-85, XR-80 Previous Style & Type 1 Price: $3.33 |
| 35 |
39-0730 |
BEDKNIFE, RM Price: $91.01 |
| 36 |
119-4151 |
SCREW-BEDKNIFE This part replaces 3-6462. Price: $0.41 |
| 37 |
33-5040 |
DISCONTINUED This part replaces 36-4080. Price: Call Us |
| 37 |
530024438 |
Reed Valve Price: Call Us |
| 38 |
32120-93 |
RING-RETAINING Price: $2.49 |
| 38 |
530015241 |
Screw - #6 - 19 x 5/16" - Pan. Hd. - Reed Valve Price: $1.99 |
| 39 |
37-0230 |
DISCONTINUED Price: Call Us |
| 39 |
530023367 |
Washer - Reed Valve Screw Price: Call Us |
| 40 |
36-4680 |
DISCONTINUED Price: Call Us |
| 42 |
530015004 |
Screw - #8 - 32 x 5/16" - Choke Wire Clamp Price: $1.99 |
| 43 |
530024651 |
Clamp - Choke Wire Price: $3.33 |
| 44 |
530026236 |
Model XR-80 - Type 2 & 3 Price: $1.99 |
| 45 |
530021043 |
Model XR-75, XR-80 - Type 2 Price: $3.33 |
| 45 |
530069238 |
Model XR-80 - Type 3 Price: $3.33 |
| 46 |
530026237 |
Model XR-80 - Type 2 & 3 Price: $3.33 |
| 47 |
530024558 |
Shutter - Choke Price: $2.99 |
| 48 |
530015379 |
Screw - #10 - 24 x 1-7/8" - Carburetor Price: $2.99 |
| 49 |
530015254 |
Washer - Wave Price: $1.99 |
| 50 |
530015404 |
Screw - #10 - 24 x 2-1/8" - Carburetor Shoulder Price: $2.99 |
| 51 |
530019131 |
O-Ring (Orifice) Price: $1.99 |
| 52 |
530015565 |
Screw - #8 - 18 x 1" - Accumulator Price: $3.33 |
| 53 |
530010651 |
Accumulator Assembly (Inc. #51 & 54) Price: $3.33 |
| 54 |
530010677 |
Cap Assembly - Accumulator (Inc. #56) Price: $3.33 |
| 55 |
530015235 |
Screw - #8 - 16 x 9/16" Price: Call Us |
| 56 |
530019128 |
O-Ring (Accumulator Chamber) Price: $3.33 |
| 57 |
530015566 |
Screw - #10 - 24 x 2-1/4" - Fil. Hd. - Carburetor Price: $0.99 |
| 58 |
530021055 |
Fuel Line - Carburetor Price: $1.99 |
