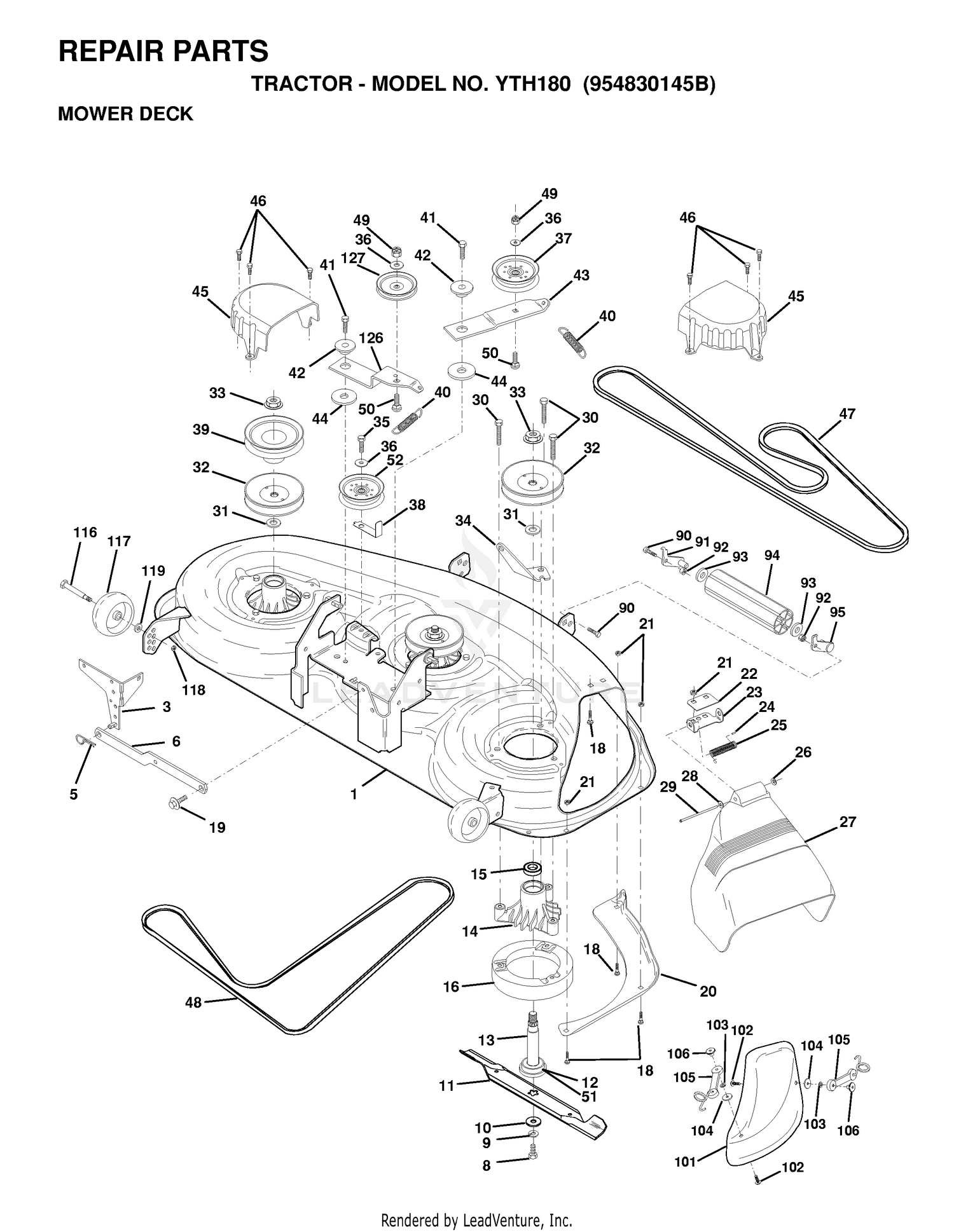

| Ref | Part Number | Description |
|---|
| 1 |
532176026 |
DECK SVC 46"3 BLADE 156948X431 This part replaces 532153125. Price: $249.99 |
| 5 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 6 |
531149301 |
SERVICE KIT BAR BAR SWAY DECK. This part replaces 532130832. Price: $9.99 |
| 8 |
532850857 |
BLADE BOLT Price: $3.99 |
| 9 |
596238701 |
Washers This part replaces 810030600. Price: $3.99 |
| 10 |
532140296 |
WASHER.BLADE Price: $5.99 |
| 11 |
532152443 |
MULCH BLADE 46" Price: $17.99 |
| 12 |
532129895 |
BEARING.BALL.#6204.(MANDREL) Price: $9.99 |
| 13 |
532137553 |
SHAFT.ASM.W/BEARING Price: $32.99 |
| 14 |
532137152 |
HOUSING.MANDREL.44/46" VENT Price: $34.99 |
| 15 |
532110485 |
BEARING Price: $11.99 |
| 18 |
596136401 |
Bolts This part replaces 872140505. Price: $2.99 |
| 19 |
532132827 |
BOLT SHD 5/16-18 Price: $4.99 |
| 20 |
531154201 |
SERVICE KIT BAFFLE BAFFLE This part replaces 532145055. Price: $6.99 |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 22 |
532134753 |
STIFFENER BRACKET Price: $5.99 |
| 23 |
529845901 |
SERVICE KIT BRKT This part replaces 532131267. Price: $4.99 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 25 |
532123713 |
SPRING TORSION Price: $6.99 |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 27 |
532166883 |
DEFLECTOR.CLIPPING.46" This part replaces 532145325. Price: $38.99 |
| 28 |
819111016 |
Washer 11/32 x 5/8 x 16 Ga SD Price: $5.99 |
| 29 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532138776. Price: $3.99 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL This part replaces 532129963. Price: $3.99 |
| 32 |
532173434 |
MANDREL PULLEY This part replaces 532153531. Price: $14.99 |
| 33 |
532139729 |
KIT.NUT.FLANGE This part replaces 532137266. Price: $7.99 |
| 34 |
532144945 |
ANCHOR, SPRING DECK 46" Price: $4.99 |
| 35 |
599972501 |
BOLT This part replaces 817490628. Price: $2.99 |
| 36 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 37 |
597025001 |
CLG This part replaces 532131494. Price: $22.99 |
| 38 |
597024901 |
Keepers This part replaces 532137554. Price: $3.99 |
| 39 |
532144917 |
PULLEY.DRIVEN.DECK.46" Price: $27.99 |
| 40 |
532137273 |
SPRING.SEC.44"VEN Price: $6.99 |
| 41 |
874760620 |
BOLT This part replaces 817490620. Price: $4.99 |
| 42 |
532165723 |
SPACER.RETAINER.MOWER This part replaces 532122052. Price: $5.99 |
| 43 |
532144949 |
ARM IDLER DECK 46" Price: $4.99 |
| 44 |
532178515 |
WASHER This part replaces 532133943. Price: $5.99 |
| 45 |
532145059 |
COVER MANDREL 46 Price: $14.99 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 47 |
532144959 |
BELT V SECONDARY Price: $37.99 |
| 48 |
532148763 |
V-BELT PRIMARY 50" Price: $54.99 |
| 49 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 50 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 51 |
532153390 |
WASHER FELT Price: $3.99 |
| 90 |
596564401 |
Bolts This part replaces 874760616. Price: $3.99 |
| 91 |
532175746 |
BRACKET ASM, ROLLER (L) This part replaces 532132274. Price: $7.99 |
| 92 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 93 |
819171416 |
Washer 1 17/32 X 7/8 X 16 Ga Price: $3.99 |
| 94 |
532132264 |
NOSE ROLLER Price: $29.99 |
| 95 |
531154101 |
SERVICE KIT BRACKET BRACKET AS This part replaces 532132273. Price: $12.99 |
| 101 |
532145579 |
COVER.MULCH.46"3-BLADE.(2 2) Price: $21.99 |
| 102 |
596039001 |
Screws This part replaces 871161010. Price: $2.99 |
| 103 |
810071000 |
LOCKWASHER #10 Price: $3.99 |
| 104 |
819061216 |
WASHER Price: $3.99 |
| 105 |
597000601 |
LATCH.ASM.MULCH/BAGGER This part replaces 532130758. Price: $5.99 |
| 106 |
596987401 |
Nuts This part replaces 532125004. Price: $2.99 |
| 116 |
596434404 |
Bolts This part replaces 532137644. Price: $4.99 |
| 117 |
532133957 |
WHEEL GAGE DONUT Price: $11.99 |
| 118 |
596322601 |
Nuts This part replaces 873930600. Price: $2.99 |
| 119 |
596134901 |
GSPH This part replaces 819121414. Price: $2.99 |
| 126 |
532144948 |
ARM IDLER PRIM 46 Price: $4.99 |
| 127 |
593787801 |
PULLEYS This part replaces 532146763. Price: $27.99 |
| 532143651 |
KIT.MANDREL.ASM.44"/46/50"SRVC |
Price: $89.99 532143651 |
| 532166222 |
DECK |
ASM SVC 46"3 BLADE ELEC This part replaces 532151775. Price: $799.99 532166222 |
