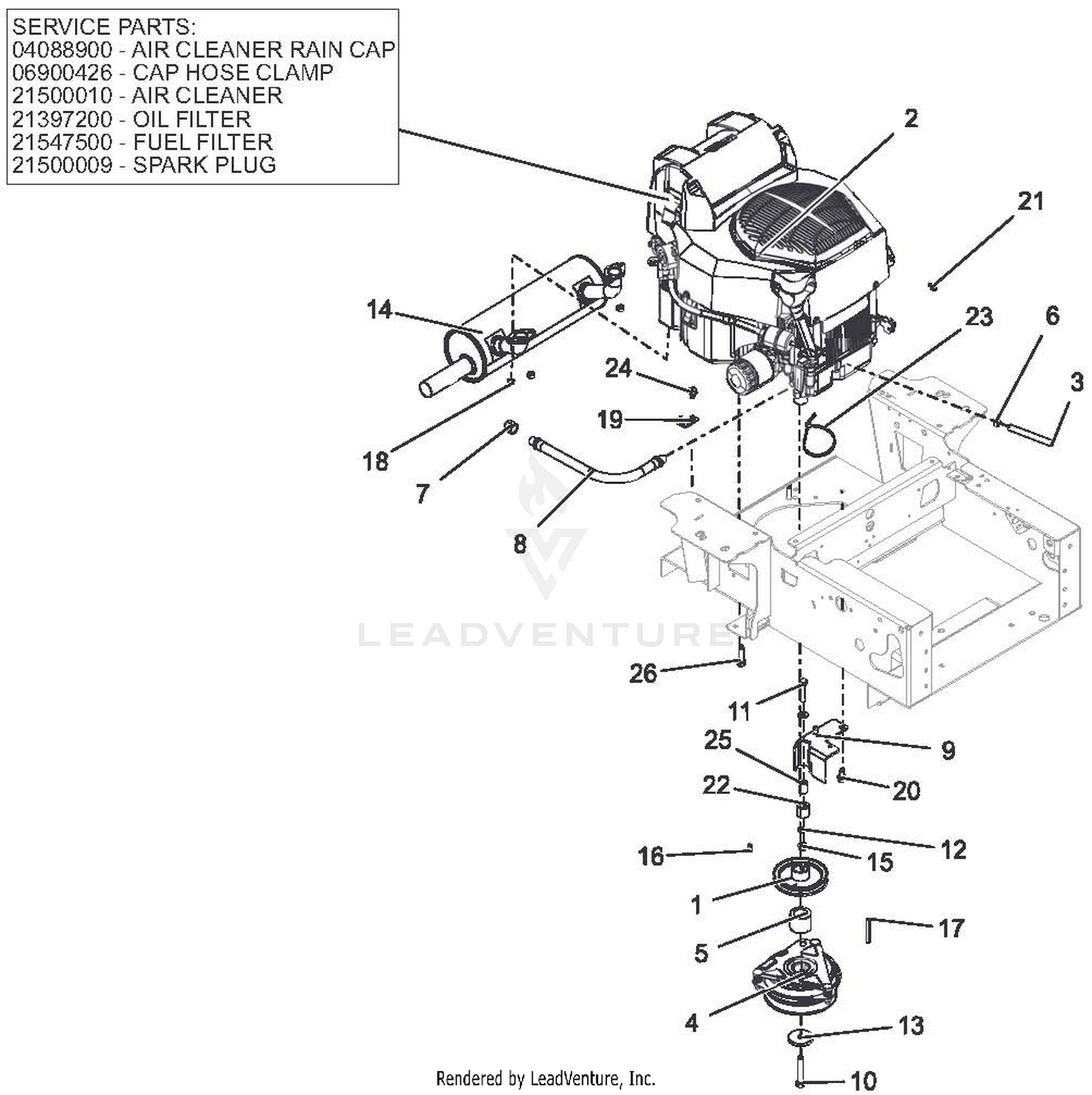

| Ref | Part Number | Description |
|---|
| 1 |
07331667 |
PULLEY, 4.50 OD X 1.127 ENGINE Price: $59.95 |
| 2 |
08201030 |
ENGINE, KOHLER ZT740 CONFIDANT Price: Call Us |
| 4 |
03785000 |
CLUTCH, OGURA GT2.5-FE02 Price: $424.95 |
| 5 |
03829700 |
SPACER, 1.125 X 1.75 X 1.40 Price: $18.95 |
| 6 |
03278800 |
CLAMP, FUEL LINE Price: $0.95 |
| 7 |
03873200 |
PIPE CAP 3/8 NPT FEMALE Price: $12.45 |
| 8 |
05155100 |
HOSE, OIL DRAIN This part replaces 04058500. Price: $18.45 |
| 10 |
05900036 |
BLT-HEX .44-20X2.50 G5 YZ EP80 Price: $12.95 |
| 11 |
05901809 |
BLT, HEX .38-16X1.75 G5 ZCC This part replaces 05958500. Price: $1.45 |
| 12 |
06401013 |
WSHR-FLT .406X.812X.065 ZCC This part replaces 06436200. Price: $0.95 |
| 13 |
06401111 |
WSHR, FLT .469X2.00X.250 ZCC This part replaces 06443600. Price: $6.95 |
| 14 |
04786100 |
MUFFLER, KOHLER CONFIDANT Price: $144.95 |
| 15 |
06500822 |
NUT-LK-TOP-FLG .38-16 ZC120 This part replaces 06542000. Price: $0.95 |
| 16 |
06602700 |
KEY-SQ .25X.625X.25 SAE 8630 Price: $3.45 |
| 17 |
06610300 |
KEY .25X.25X2.25 Price: $2.95 |
| 18 |
06500919 |
NUT-LK-TOP-FLG M8 ZCC This part replaces 06500018. Price: $1.95 |
| 19 |
06916000 |
J-CLAMP Price: $2.45 |
| 20 |
07400129 |
SCR,TAP .375-16X.75 HWH TR ZCC This part replaces 07415400. Price: $1.45 |
| 21 |
07400122 |
SCR-TAP .25-20X.50 HWH ZCC This part replaces 07400034. Price: $0.45 |
| 22 |
07500007 |
BUMPER,RUBBER .62X1.0X.88 LG Price: $5.45 |
| 23 |
07517300 |
CABLE TIE LG 5-1/2 Price: $2.95 |
| 24 |
07400126 |
SCR,TAP .375-16X.50 HWH TR ZCC This part replaces 07412900. Price: $1.45 |
| 25 |
08833400 |
BUSH.,S.391X.622X.950 ST Price: $5.45 |
