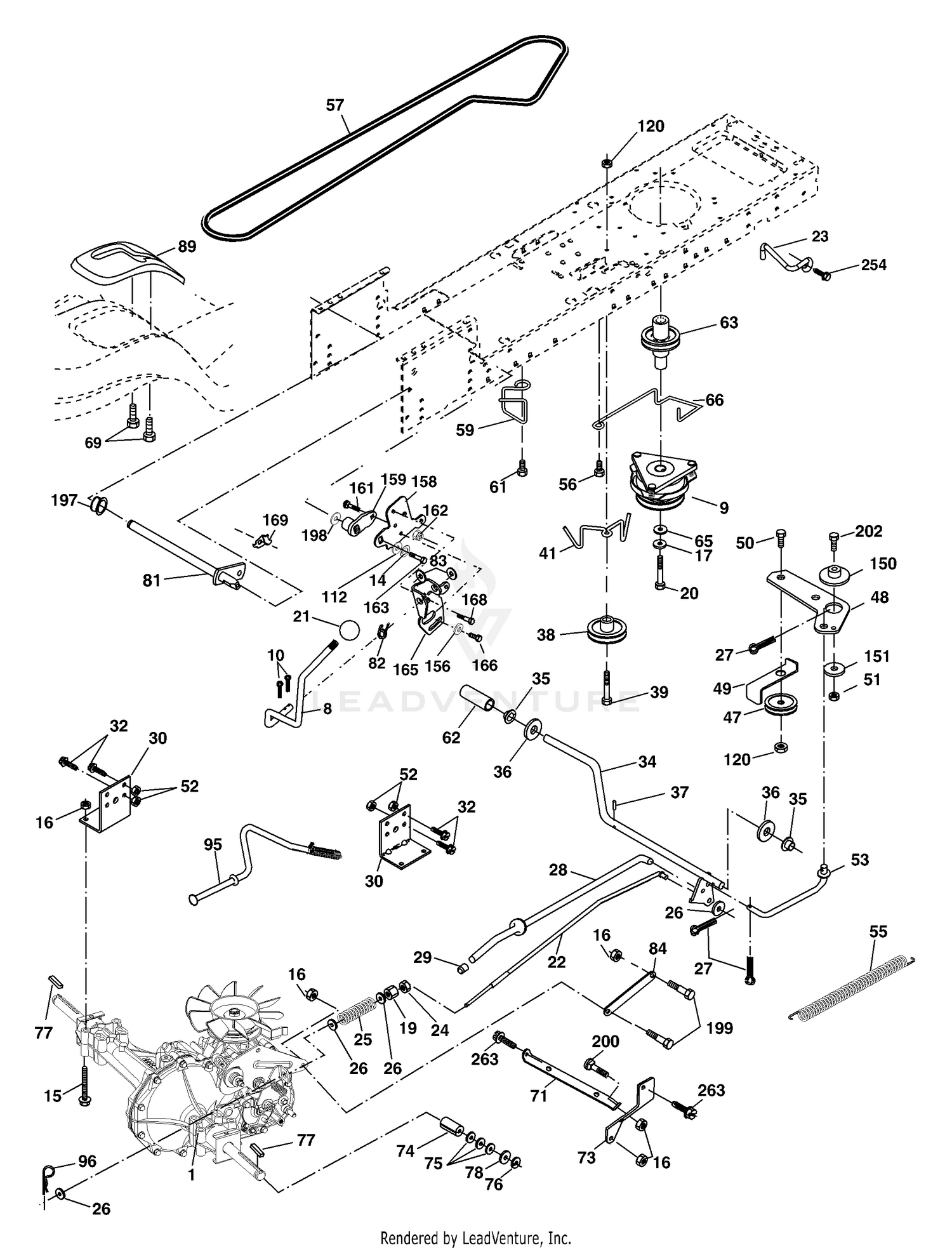

| Ref | Part Number | Description |
|---|
| 1 |
104-0000-03 |
PULLEY Price: $400.11 |
| 2 |
99-6937 |
FAN Price: $304.08 |
| 3 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 7 |
251-318 |
BEARING-BALL Price: $16.40 |
| 8 |
104-0001 |
SPACER Price: $25.45 |
| 8 |
532165866 |
Rod Shift Fender Price: $22.99 |
| 9 |
104-0017 |
HUB This part replaces 104-0017-03. Price: $185.06 |
| 9 |
532414336 |
KIT.SVC.CLUTCH.ELE.LT48 This part replaces 532179334. Price: $265.99 |
| 10 |
323-12 |
SCREW-HH Price: $1.14 |
| 10 |
876020416 |
Pin Cotter 1/8 x 1 CAD Price: $3.99 |
| 11 |
63-8410 |
WASHER Price: $1.76 |
| 12 |
11-0160 |
ROLLER SHAFT SCREW ASM Price: $28.16 |
| 13 |
104-1487 |
BOLT-CARR Price: $3.93 |
| 14 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 14 |
810040400 |
Washer Lock Hvy Helical Price: $3.99 |
| 15 |
104-1440-03 |
SUPPORT-FAN Price: $395.73 |
| 15 |
874490544 |
Bolt Hex Flghd 5/16-18 Gr. 5 Price: $2.99 |
| 16 |
104-0006-03 |
LEVER-FAN, IDLER Price: $61.11 |
| 16 |
873800500 |
Nut Lock Hex W/Ins. 5/16-18 unc Price: $2.69 |
| 17 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 17 |
532126197 |
Washer 1-1/2 OD x 15/32 ID x .250 Price: $4.99 |
| 18 |
98-3921 |
BELT Price: $16.95 |
| 19 |
873680600 |
Nut This part replaces 873800600. Price: $1.99 |
| 19 |
95-3857 |
SCREW-HSBH Price: $4.09 |
| 20 |
532150280 |
SUB= 150280 This part replaces 532173937. Price: $3.99 |
| 20 |
63-8140 |
PULLEY-IDLER Price: $47.94 |
| 21 |
104-1447-03 |
BRACKET-FAN, SUPPORT Price: $39.88 |
| 21 |
532140845 |
Knob Price: $8.99 |
| 22 |
3274-12 |
SCREW-HSH Price: $0.81 |
| 22 |
532169498 |
Rod, Brake Hydro Price: $11.99 |
| 23 |
3253-4 |
WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 23 |
532190736 |
Bracket Asm. Anti-Rot Price: $4.99 |
| 24 |
3234-29 |
SCREW-HHF Price: $1.84 |
| 24 |
873220600 |
Nut, Hex 3/8-16 This part replaces 873350600. Price: $3.99 |
| 25 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 25 |
532151332 |
SPRING, BRAKE ROD This part replaces 532106888. Price: $2.99 |
| 26 |
104-1481-03 |
BRACKET-MOUNT, FAN Price: $58.30 |
| 26 |
819131316 |
Washer Price: $2.99 |
| 27 |
876020412 |
Pin Cotter 1/8 x 3/4 CAD. Price: $3.99 |
| 27 |
98-4561-03 |
SHIELD-ALTERNATOR Price: $56.98 |
| 28 |
532175765 |
Rod, Parking Brake Price: $3.99 |
| 29 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 29 |
532071673 |
Cap, Parking Brake Price: $3.99 |
| 30 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 30 |
532169592 |
Bracket, Transaxle Price: $3.99 |
| 31 |
33114-020 |
SCREW-HH Price: $0.28 |
| 32 |
322-4 |
SCREW-HH Price: $0.35 |
| 32 |
539976934 |
HCS.5/16-18X3/4 This part replaces 874760512. Price: $1.99 |
| 33 |
104-0007 |
SPACER Price: $39.26 |
| 34 |
322-3 |
SCREW-HH Price: $0.79 |
| 34 |
532175578 |
Shaft, Foot Pedal Nibbed Price: $19.99 |
| 35 |
104-1482 |
PLATE-WASHER Price: $15.25 |
| 35 |
532120183 |
Bearing, Nylon Price: $2.99 |
| 36 |
819211616 |
Washer Price: $3.99 |
| 37 |
532002882 |
DRIVE PIN This part replaces 532124963. Price: $2.99 |
| 38 |
532179114 |
Pulley, Idler, Flat Composite Price: $19.99 |
| 39 |
872110622 |
Bolt 3/8-16 x 2-3/4 Gr. 5 Price: $3.99 |
| 41 |
532175556 |
Keeper, Belt Idler Fool-Proof Price: $5.99 |
| 47 |
532139245 |
Pulley, Idler V Groove This part replaces 532127783. Price: $22.99 |
| 48 |
532154407 |
Bellcrank Clutch Grnd Drv Stl Price: $4.99 |
| 49 |
532123205 |
Retainer, Belt Price: $3.99 |
| 50 |
872110612 |
Bolt Carr. SH 3/8-16 x 1-1/2 Gr. 5 Price: $3.99 |
| 51 |
873680600 |
Nut Price: $1.99 |
| 52 |
873800500 |
Nut Lock Hex W/Ins. 5/16-18 Unc P This part replaces 873680500. Price: $2.69 |
| 53 |
532199652 |
LINK.CLUTCH.7.66.2005 This part replaces 532105710. Price: $8.99 |
| 55 |
532105709 |
Spring, Return, Clutch Price: $7.99 |
| 56 |
817060620 |
Screw 3/8-16 x 1-1/4 Price: $3.99 |
| 57 |
532140294 |
V-Belt, Ground Drive Price: $25.99 |
| 59 |
532169691 |
Keeper, Center Span Price: $14.99 |
| 61 |
817490614 |
Screw Hex Thdrol. 3/8-16 x 7/8 This part replaces 817120614. Price: Call Us |
| 62 |
532008883 |
Cover, Pedal This part replaces 532124872. Price: $3.49 |
| 63 |
532174607 |
Pulley, Engine Price: $37.99 |
| 65 |
539990247 |
LOCKWASHER.7/16 This part replaces 810040700. Price: $1.99 |
| 66 |
532154778 |
Keeper Belt Engine Hydro Price: $8.99 |
| 69 |
532142432 |
Screw Hex Wsh Hi-Lo 1/4-1/2 unc Price: $3.99 |
| 71 |
532169183 |
Strap Torque Lh Hydro Price: $4.99 |
| 73 |
532169182 |
Strap Torque Rh Hydro Price: $7.99 |
| 74 |
532137057 |
Spacer, Axle Price: $3.99 |
| 75 |
532121749 |
Washer 25/32 x 1-1/4 x 16 Ga. Price: $1.99 |
| 76 |
812000001 |
E-Ring Price: $2.99 |
| 77 |
532123583 |
Key, Square Price: $2.69 |
| 78 |
532121748 |
Washer 25/32 x 1-5/8 x 16 Ga. Price: $1.99 |
| 81 |
532165596 |
Shaft Asm. Cross Hydro Price: $25.99 |
| 82 |
532165711 |
Spring Torsion T/A Price: $3.99 |
| 83 |
734117771 |
BUSHING This part replaces 819171216. Price: $2.99 |
| 84 |
532169594 |
Link Transaxle Price: $4.99 |
| 89 |
532188309 |
CONSOLE.SHIFT.STL.AUTO.GREY This part replaces 532191816. Price: $8.99 |
| 95 |
532170201 |
Control Asm. Bypass Hydro Price: $7.99 |
| 96 |
532004497 |
RETAINER M This part replaces 532124788. Price: $5.99 |
| 112 |
734115201 |
WASHER - M6 This part replaces 819091210. Price: $1.99 |
| 120 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.69 |
| 150 |
532175456 |
Spacer Retainer Price: $3.99 |
| 151 |
532413524 |
WASHER.13/32 X 1 X 1/2.11GUARD This part replaces 819133210. Price: $2.99 |
| 156 |
532166002 |
Washer Srrted 5/16 ID x 1.125 Price: $3.99 |
| 158 |
532437458 |
BRACKET.SHIFT.MOUNT This part replaces 532165589. Price: $3.99 |
| 159 |
532444304 |
HUB.SHIFT This part replaces 532183900. Price: $4.99 |
| 161 |
872110407 |
BOLT, HEX HEAD This part replaces 872140406. Price: $2.99 |
| 162 |
873680400 |
Nut Crownlock 1/4-20 unc Price: $2.69 |
| 163 |
874780416 |
Bolt Hex Fin 1/4-20 unc x 1 Gr. 5 Price: $3.99 |
| 165 |
532438250 |
BRACKET.PIVOT.LEVER This part replaces 532165623. Price: $4.99 |
| 166 |
817490510 |
Screw 5/16-18 x 5/8 Price: $2.99 |
| 168 |
532165492 |
Bolt Shoulder 5/16-18 x .561 Price: $3.99 |
| 169 |
532165580 |
Plate Fastening Lt\ Price: $3.99 |
| 197 |
532169613 |
Nyliner Snap-In 5/8" ID Price: $3.99 |
| 198 |
532169593 |
Washer Nyliner 7/8 ID x .105 Price: $4.99 |
| 199 |
532169612 |
Bolt Shoulder 5/16-18 unc Price: $3.99 |
| 200 |
872140508 |
Bolt Rdhd Sq Neck 5/16-18 unc x 1 Price: $2.99 |
| 202 |
872110614 |
Bolt 3/8-16 x 1-3/4 Gr. 5 Price: $3.99 |
| 254 |
817000616 |
Screw 3/8-16 x 1 Price: $3.99 |
