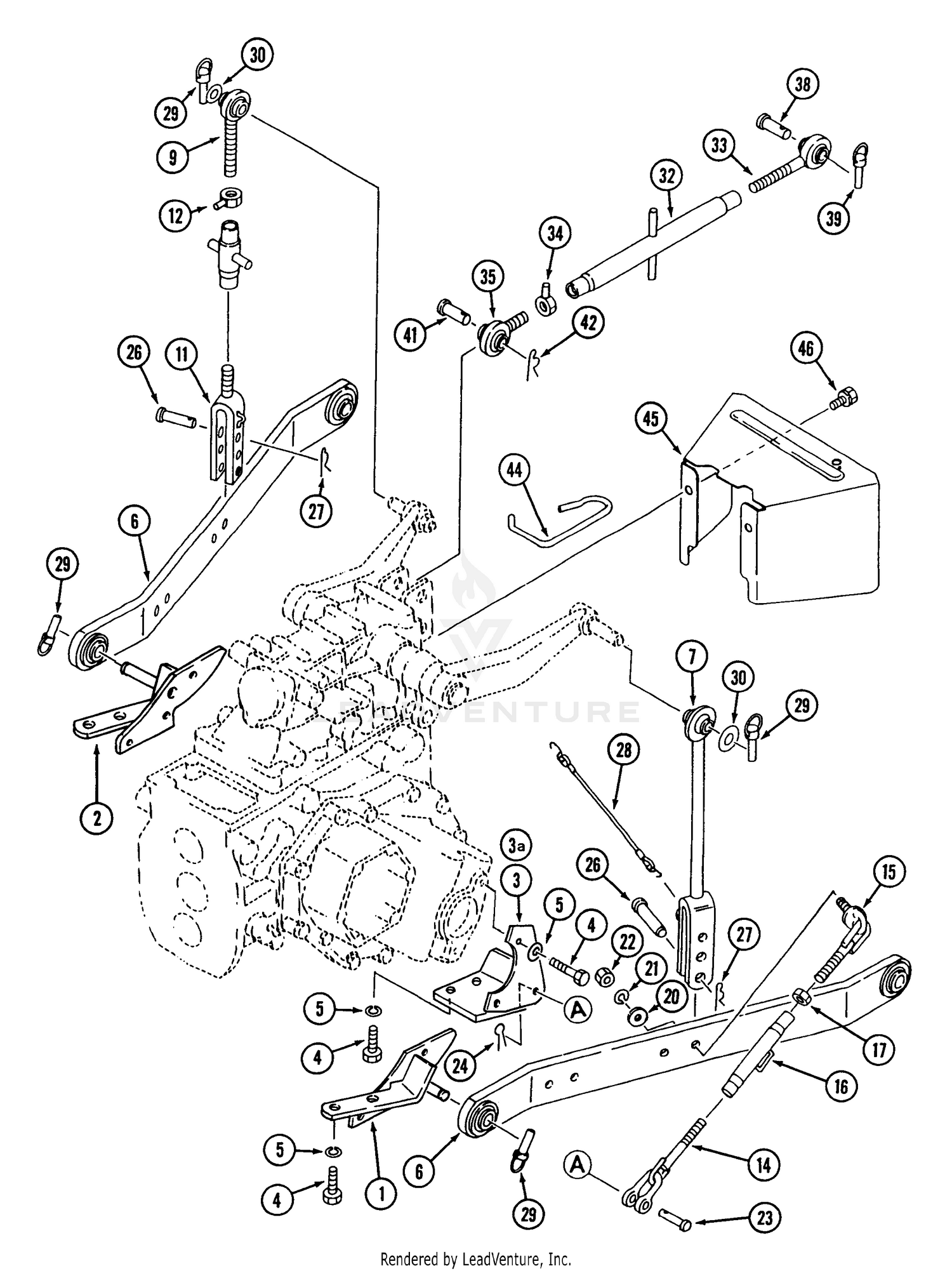

3-Point Linkage
Parts (45)
| Ref | Part Number | Description |
|---|---|---|
| 1 | MA-19643013AG0 | BRACKET (LH) Not Available Price: |
| 2 | MA-19643015AG0 | BRACKET (RH) Not Available Price: |
| 3 | MA-19643001AG0 | BRACKET (LH) Not Available Price: |
| 3A | MA-19643002AG0 | BRACKET (RH) Not Available Price: |
| 4 | MA-A0400114035 | BOLT Not Available Price: |
| 5 | MA-A3600101402 | WASHER,SPRING Not Available Price: |
| 6 | MA-19643006AG0 | LINK LOWER Not Available Price: |
| 7 | MA-19643007AG0 | ROD,LIFT (LH) Not Available Price: |
| 8 | 82-5730-01 | END-ROD, TIE This part replaces 82-5730. Price: $310.82 |
| 9 | 82-5740 | NUT-JAM Price: $29.95 |
| 9 | MA-19633012AG0 | LINK-UPPER ADJ LIF Not Available Price: |
| 10 | 32121-44 | PIN-ROLL Price: $0.47 |
| 11 | 82-5750 | NUT-LOCK, ELASTIC Price: $9.02 |
| 11 | MA-19643014AG0 | LINK-LOWER ADJ LIF Not Available Price: |
| 12 | 82-5760 | PISTON Price: $211.58 |
| 12 | MA-19643024000 | AG0 LOCK NUT-LIFT Not Available This part replaces MA-10323024000. Price: |
| 14 | 82-5770 | ROD Price: $244.95 |
| 14 | MA-19643017000 | Chain A Price: $142.58 |
| 15 | 82-5780 | CAP-THREAD Price: $94.64 |
| 15 | MA-19643018000 | CHAIN B Not Available Price: |
| 16 | 82-5790 | HEAD-CAP, THREAD Price: $279.42 |
| 16 | MA-10323027001 | Turn Buckle Price: $87.21 |
| 17 | MA-A3000114002 | NUT Not Available Price: |
| 20 | MA-19643019AG0 | WASHER,CHECK CHAIN Not Available Price: |
| 21 | MA-A3600101802 | SPRING WASHER Not Available Price: |
| 22 | MA-A3030118001 | NUT Not Available Price: |
| 23 | MA-19633021000 | PIN CLEVIS Not Available Price: |
| 24 | MA-05200130020 | COTTER PIN Not Available Price: |
| 26 | MA-10323018001 | PIN Not Available Price: |
| 27 | MA-10323019000 | Pin Snap Price: $10.55 |
| 28 | MA-19633024000 | BAND Not Available Price: |
| 29 | MA-10373015000 | LYNCH PIN Not Available This part replaces MA-10323012000. Price: |
| 30 | MA-10323016000 | WASHER Not Available Price: |
| 32 | MA-19643037AG0 | TURN BUCKLE-CNTR L Not Available Price: |
| 33 | MA-19643038AG0 | ADJUSTER-TRAC END Not Available Price: |
| 34 | MA-19643039000 | LOCK NUT Not Available Price: |
| 35 | MA-19643041AG0 | ADJUSTER-IMP END Not Available Price: |
| 38 | MA-19633037000 | PIN UPPER LINK Not Available Price: |
| 39 | MA-10373015000 | LYNCH PIN Not Available This part replaces MA-10323012000. Price: |
| 41 | MA-19633038000 | PIN Not Available Price: |
| 42 | MA-19633041000 | PIN SNAP Not Available Price: |
| 44 | MA-19633031000 | HOOK,TOP LINK Not Available Price: |
| 45 | MA-19633034AG1 | SHIELD-REAR PTO Not Available This part replaces MA-19633034AG0. Price: |
| 115859327 | NEEDS | DESCRIPTION Price: Call Us 115859327 |
| 115859331 | NEEDS | DESCRIPTION Price: Call Us 115859331 |
