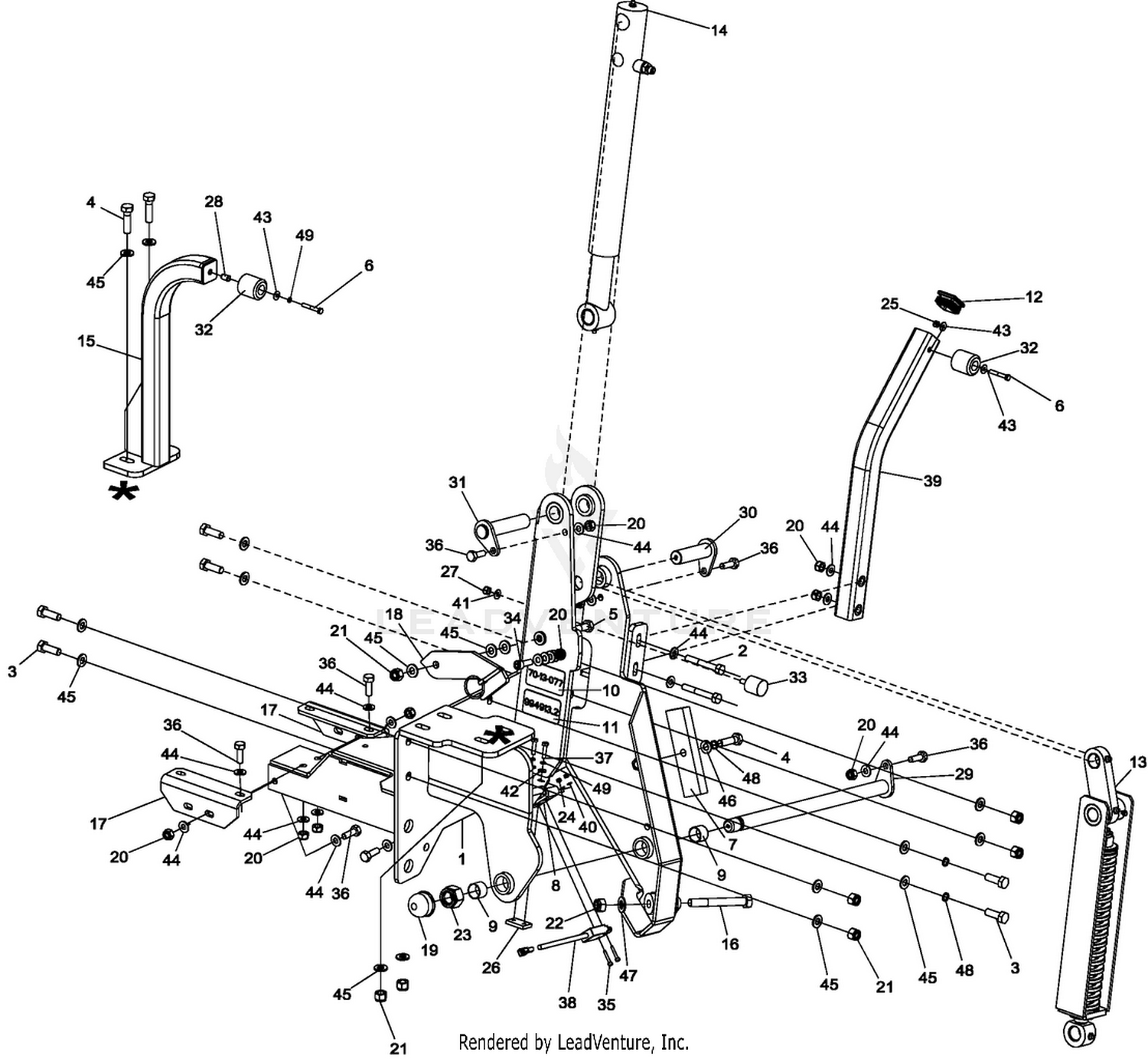

Wing Arm Mounts

Wing Arm Mounts

Parts (48)

RefPart NumberDescription
1 994120W ARM PIVOT LH W/A Price: $1,133.22
2 ZBH1J075U HEX HD.BOLT M10*75 Price: $1.31
3 ZDH1L035U HEX.HD.SET SCW.M12*35 This part replaces 09551. Price: $1.38
4 ZBH1L045U HEX HD.BOLT M12*45 Price: $1.38
5 63-11-009 HEX HD.BOLT M12*50HT/10.9 Price: $5.02
6 ZBH1F040U HEX HD BOLT M6*40 Price: $1.26
7 950348 BAR BRAKE RELEASE POCLAIN Price: $36.26
8 994133W BRKT-SWITCH WING ARM Price: Call Us
9 74-07-028 BUSH DEVOL 28DIAX25X20 Price: $8.10
10 70-13-077 DECAL - SAFETY LATCHES Price: $4.59
11 994913_2 DECAL - SPRUNG HAZARD - R3 Price: Call Us
12 994814 END CAP 40*40 Price: $2.04
15 994425W BUMP STOP FRONT W/A CAB OPTION Price: $217.38
16 09815 BOLT M14*110 Price: $5.00
17 953136W BRACKET JOINT WING ARM Price: $30.94
18 994350C LATCH W/A LH Price: $45.95
19 10-11-100 NUT CAP M24 Price: $1.97
20 ZNN1J000U HEX.NUT NYLOC M10 Price: $1.42
21 ZNN1L000U HEX.NUT NYLOC M12 Price: $1.40
22 09540 NUT - NYLOC M14*2 P TYPE Price: $1.42
23 ZNN1X000U HEX.NUT M24 NYLOC Price: $5.40
24 09657 NUT M8 HX.NYL/INSERT T TYPE ZP Price: $1.40
25 09438 NUT M6 X 1.5 PLAIN Price: $1.39
26 994321 NUT BAR M6 Price: Call Us
27 09441 NUT M8 NYL INSERT T TYPE Price: $1.39
28 09185 NUTSERT M6X1.0 Price: $1.34
29 953554 PIN WING ARM PIVOT W/A Price: $74.74
30 994565 PIN DIA 25*87 W/A Price: $66.72
31 994570 PIN DIA 25*114 W/A Price: $65.63
32 61-07-003 RUBBER BUFFER Price: $9.55
33 953838 RUBBER BUFFER DIA 30*30 LG M8 Price: $24.93
34 ZCS1J030U SOC.HD.CAP Price: $1.31
35 09813 SCREW SOC HD Price: $1.20
36 09392 SETSCREW M10 X 30 HEX HD Price: $1.31
37 09364 SETSCREW M6 X 25 Price: $1.34
38 111-6558 SWITCH ASSY This part replaces 994865. Price: $97.24
39 994415W BUMP STOP REAR W/A Price: $186.87
40 09658 WASHER M4 X 9 X 0.8 Z/P Price: $1.40
41 09475 WASHER M8 X 17 X 1.6 ZN & PASS Price: $1.40
42 09261 WASHER 1/4 X 9/16 X 17G PLAIN Price: $1.40
43 09260 WASHER PLAIN 1/4 X 5/8 X 17G Price: $1.32
44 ZWQ1J000U PLAIN HEAVY WASHER M10 Price: $1.38
45 HY09485 WASHER M12 PLAIN Price: $1.40
46 ZWP1L000U PLAIN WASHER M12 Price: $1.44
47 09488 WASHER PLAIN M14 Price: $1.40
48 09599 WASHER Price: $1.42
49 09474 WASHER M6 SC SPRING Price: $1.34
50 994125W ARM PIVOT RH W/A Price: $1,133.22
