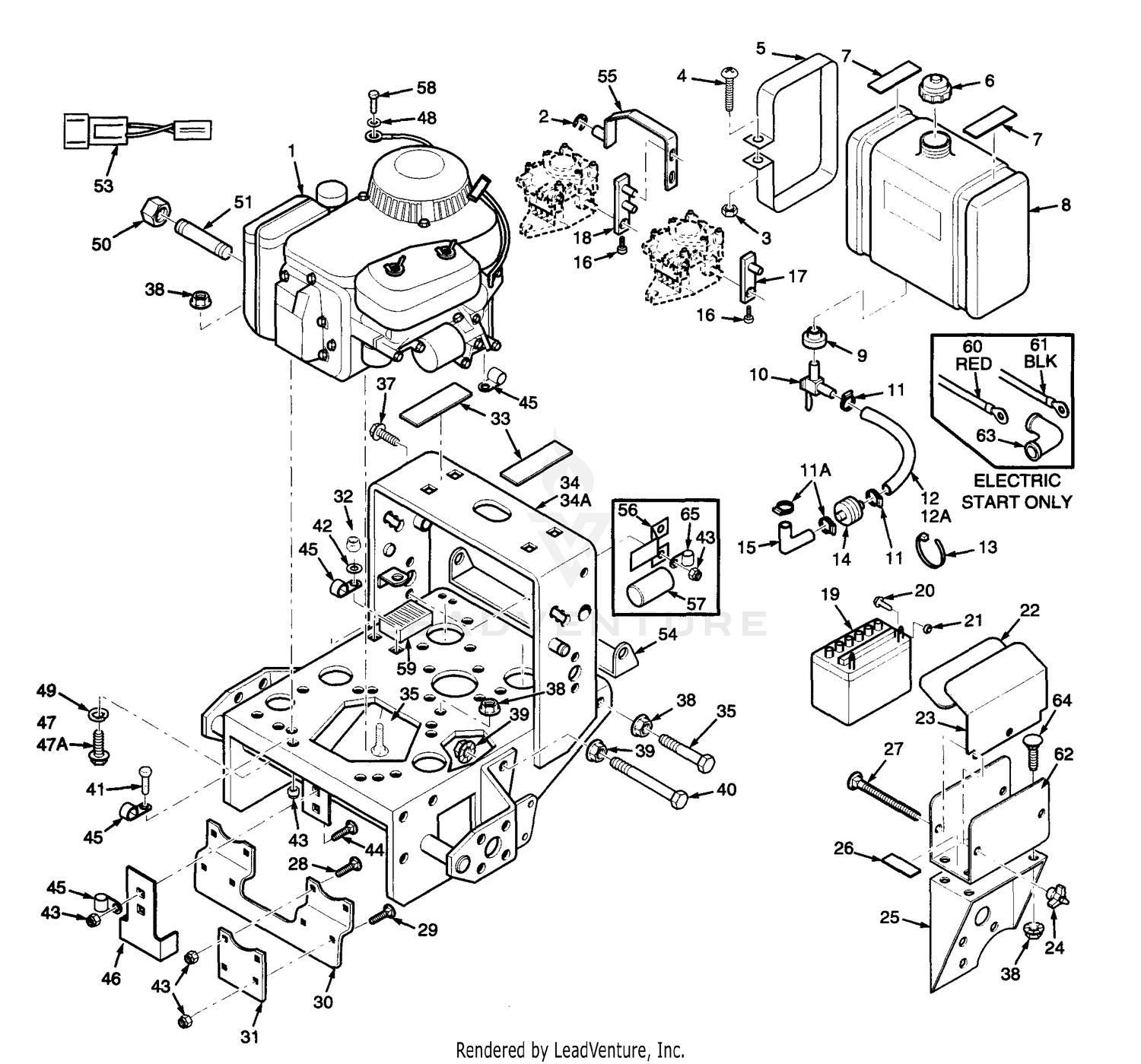

| Ref | Part Number | Description |
|---|
| 1 |
481066 |
Engine 17KA Kawasaki Price: Call Us |
| 2 |
04050-10 |
Retaining Ring, 1/2" Ext. "E" Price: Call Us |
| 3 |
04020-02 |
Hex Nut, 1/4-20 Price: Call Us |
| 4 |
04010-10 |
Screw, 1/4-20 x 2" Rnd. Hd. Phil. Price: Call Us |
| 5 |
421239 |
Strap, Fuel Tank Price: Call Us |
| 6 |
481603 |
Cap, Fuel Tank Price: Call Us |
| 7 |
48292 |
Pad, Rubber - Fuel Tank - Upper Price: Call Us |
| 9 |
482571 |
Bushing This part replaces 48309. Price: Call Us |
| 10 |
483747 |
Ball Valve w/Screen This part replaces 48308. Price: Call Us |
| 11 |
48059-01 |
Clamp, Fuel Hose Price: Call Us |
| 13 |
48028-05 |
Cable Tie Price: Call Us |
| 16 |
04015-06 |
Capscrew, #10-32 x 1 Soc. Hd. Price: Call Us |
| 17 |
46323 |
Lever Assy., Pump Control - LH Price: Call Us |
| 18 |
46324 |
Lever Assy., Pump Control - RH Price: Call Us |
| 28 |
04003-28 |
Carriage Bolt, 5/16-18 x 2" Price: Call Us |
| 29 |
04003-04 |
Carriage Bolt, 5/16-18 x 1" Price: Call Us |
| 30 |
422553 |
Stiffener Price: Call Us |
| 31 |
422552 |
Plate, Backing Price: Call Us |
| 32 |
04021-08 |
Nut, 1/4-20 Elastic Stop Price: Call Us |
| 33 |
48205 |
Pad, Rubber - Fuel Tank, Lower Price: Call Us |
| 34 |
461545 |
ENG DECK W/ DECAL, 16" SWZ This part replaces 46946. Price: Call Us |
| 34A |
461750 |
ENGINE DECK W/ DECAL, 20" SWZ This part replaces 46947. Price: Call Us |
| 35 |
04003-09 |
Bolt,1/4-20 x 1-1/4" Hex Head Price: Call Us |
| 36 |
04019-02 |
Nut, 1/4-20 Serrated Flange Price: Call Us |
| 37 |
04017-18 |
Capscr., 5/16-18 x 1.25 Sr. Flg. Price: Call Us |
| 38 |
04019-03 |
Nut, 5/16-18 Serr. Flange Price: Call Us |
| 39 |
04019-04 |
Nut, 3/8-16 Serr. Flange Price: Call Us |
| 40 |
04001-22 |
Bolt, 3/8-16 x 2-3/4" Hex Head Price: Call Us |
| 41 |
04001-08 |
Hex Head Bolt, 5/16-18 x .75" Price: Call Us |
| 42 |
04040-14 |
Flat Washer 1/4" Price: Call Us |
| 43 |
04021-10 |
Nut, 5/16-18 Elastic Stop Price: Call Us |
| 44 |
04003-04 |
Carriage Bolt, 5/16-18 x 1" Price: Call Us |
| 45 |
48030-09 |
Clamp Price: Call Us |
| 46 |
421370 |
Clutch Bracket Price: Call Us |
| 47A |
04002-01 |
Metric HH Bolt, M8-1.25 x M30 Price: Call Us |
| 48 |
04031-09 |
Lock Washer, 5/16 Int. Tooth Price: Call Us |
| 53 |
481717 |
Wire Hrns. Adapter, 17KA Price: Call Us |
| 54 |
45419 |
Pulley Guard, 20" Frame Price: Call Us |
| 55 |
45283 |
Shaft Weldment, RH Pump Cntl. Price: Call Us |
| 58 |
04002-07 |
Metric H H Bolt, 8-1.25 x 10 Price: Call Us |
