| Ref | Part Number | Description |
|---|
| 1 |
32151-75 |
RING-RETAINING This part replaces 32120-11. Price: $2.51 |
| 1 |
587294701 |

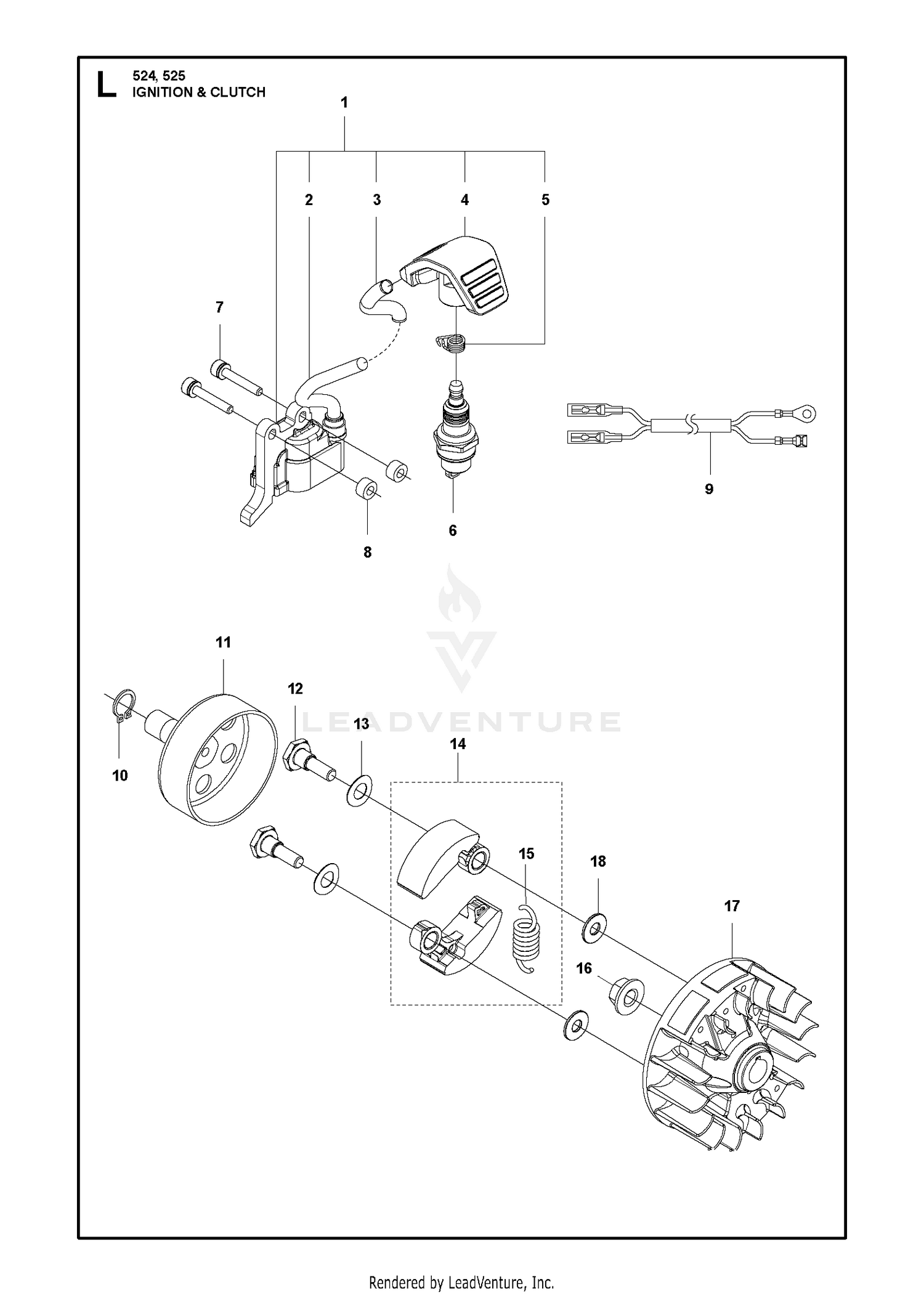

IGNITION COIL This part replaces 588141501. Price: $27.99 |
| 2 |
66-4380 |
BUSHING Price: $10.35 |
| 3 |
579590701 |
TUBE Price: $3.99 |
| 3 |
66-3470-03 |
IDLER PULLEY This part replaces 66-3470. Price: $155.92 |
| 4 |
251-297 |
BEARING-BALL Price: $18.54 |
| 4 |
586107201 |
SPARK PLUG CAP Price: $9.99 |
| 5 |
580634801 |
SPRING Price: $3.99 |
| 5 |
66-3480 |
IDLER SHAFT Price: $88.41 |
| 6 |
323-6 |
SCREW-HH Price: $0.66 |
| 7 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 7 |
521515801 |
BOLT M4 X 25 Price: $2.99 |
| 8 |
588171401 |
SPACER Price: $3.99 |
| 8 |
95-3126-03 |
IDLER-BRKT ASM,LH This part replaces 95-3126. Price: $55.22 |
| 9 |
577851701 |
SHORT CIRCUIT CABLE Price: $9.99 |
| 9 |
94-1751-03 |
GUARD PULLEY This part replaces 94-1751. Price: $143.50 |
| 10 |
3218-2 |
NUT-JAM Price: $0.25 |
| 10 |
516124101 |
RING Price: $3.99 |
| 11 |
581142001 |
CLUTCH DRUM Price: $29.99 |
| 12 |
513189601 |
SCREW Price: $2.99 |
| 12 |
66-4270-03 |
SPRING-EXTENSION This part replaces 66-4270. Price: $23.59 |
| 13 |
3290-359 |
SCREW-HWH Price: $6.23 |
| 13 |
521758201 |
WASHER Price: $2.99 |
| 14 |
585834701 |
CLUTCH ASSY This part replaces 577052801. Price: $37.99 |
| 14 |
95-3125-03 |
IDLER-BRKT ASM,RH This part replaces 95-3125. Price: $72.43 |
| 15 |
576400701 |
CLUTCH SPRING Price: $5.99 |
| 15 |
603773 |
LOCKNUT This part replaces 32153-2. Price: $2.09 |
| 16 |
3296-67 |
NUT-LOCK, NI Price: $5.05 |
| 16 |
516437401 |
NUT(RPLS 1140-43230&182301) This part replaces 504118001. Price: $2.99 |
| 17 |
3256-44 |
WASHER-FLAT Price: $4.21 |
| 17 |
578967801 |
FLYWHEEL Price: $59.99 |
| 18 |
505054401 |
WASHER Price: $2.99 |
| 18 |
66-3790 |
SPROCKET Price: $145.13 |
| 19 |
66-4690 |
TUBULAR SPACER Price: $18.46 |
| 20 |
251-312 |
BALL BEARING Price: $19.88 |
| 21 |
66-3840 |
POWER SHAFT Price: $408.79 |
| 23 |
3274-50 |
SCREW-HSH Price: $0.88 |
| 24 |
59-2130 |
PULLEY (MACHINED) Price: $562.49 |
| 25 |
3245-2 |
SCREW-SET, HSH Price: $2.58 |
| 26 |
59-3790 |
BUSHING-LOCK, TAPER Price: $238.50 |
| 27 |
59-4210 |
KEY-SQUARE Price: $16.36 |
| 28 |
59-2710 |
DISCONTINUED Price: Call Us |
| 29 |
3274-7 |
SCREW-HSH Price: $0.91 |
| 30 |
66-4680 |
TUBULAR SPACER Price: $21.17 |
| 31 |
251-313 |
BALL BEARING Price: $95.11 |
| 32 |
322-7 |
SCREW-HH Price: $0.89 |
| 33 |
66-4070 |
V-BELT Price: $82.38 |
| 34 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 35 |
55-4300 |
DECAL-WARNING This part replaces 94-9111. Price: $13.99 |
| 36 |
94-6808-01 |
HANDLE WA This part replaces 94-6808. Price: $48.98 |
| 38 |
253-166 |
SEAL Price: $5.98 |
| 39 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 40 |
323-25 |
SCREW-HH Price: $3.60 |
| 41 |
66-4480 |
SWITCH ACTUATOR Price: $33.98 |
| 42 |
3290-360 |
SCREW-HH Price: $4.34 |
| 43 |
3217-26 |
NUT-HEX Price: $0.25 |
| 44 |
80-3820 |
ACTUATOR/SWITCH BRKT Price: $49.41 |
| 45 |
3296-12 |
NUT-LOCK, NI Price: $1.29 |
| 46 |
46-8560 |
SCREW-HHFTF Price: $1.79 |
| 47 |
59-2390-03 |
SPROCKET HUB ASM This part replaces 59-2390. Price: $155.24 |
| 48 |
59-2600 |
BUSHING Price: $17.30 |
| 49 |
59-2070-03 |
KEEPER BAR This part replaces 59-2070. Price: $18.43 |
| 50 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 51 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 52 |
323-20 |
SCREW-HH Price: $1.28 |
| 53 |
95-3124-03 |
IDLER - BRKT ASM This part replaces 95-3124. Price: $142.50 |
| 54 |
59-2620 |
EYE BOLT WA (PLTD) Price: $39.83 |
| 55 |
59-2610 |
SHAFT (PLTD) Price: $79.52 |
| 56 |
256-319 |
BUSHING Price: $5.50 |
| 57 |
84-8480 |
SLEEVE (HT) Price: $31.35 |
| 58 |
32151-77 |
RING-RETAINING, EXTERNAL Price: $4.07 |
| 59 |
59-9640 |
HANDLE PLATE Price: $19.90 |
| 60 |
59-9750 |
LATCH ASM Price: $55.00 |
| 62 |
3269-4 |
RIVET-POP Price: $1.19 |
| 63 |
3218-5 |
NUT-JAM Price: $0.27 |
| 64 |
60-9870 |
SCREW-HH Price: $13.81 |
| 65 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 66 |
323-4 |
SCREW-HH Price: $1.02 |
| 67 |
66-3810 |
DISCONTINUED Price: Call Us |
| 68 |
72-9100 |
CORING HEAD WA *B Price: $14,113.12 |
| 69 |
32128-19 |
NUT-HF Price: $0.99 |
| 70 |
94-6821 |
CLAMP-WIRE Price: $3.32 |
| 71 |
37-5760-03 |
IDLER PULLEY This part replaces 37-5760. Price: $210.52 |
| 72 |
59-2580 |
SPACER-TUBULAR Price: $8.05 |
| 73 |
3290-224 |
LOCKWASHER-PYRAMID Price: $33.25 |
| 74 |
59-2570 |
TUBULAR SPACER Price: $7.36 |
| 76 |
76-2370 |
DISCONTINUED Price: Call Us |
| 77 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 78 |
321-33 |
SCREW-HH Price: $7.99 |
| 79 |
3289-4 |
SCREW-FH Price: $3.27 |
| 80 |
3253-12 |
WASHER-LOCK/SP Price: $0.25 |
| 81 |
32105-8 |
SCREW-SHH Price: $1.99 |
| 82 |
32128-33 |
NUT-HF Price: $0.25 |
| 83 |
104-2065 |
SCREW-HWH This part replaces 32144-73. Price: $0.28 |
| 84 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 85 |
80-3930 |
SWITCH GUARD Price: $10.98 |
| 86 |
94-9108 |
HARNESS-CORING HD SWITCH Price: $35.21 |
| 87 |
323-7 |
SCREW-HH Price: $0.65 |
