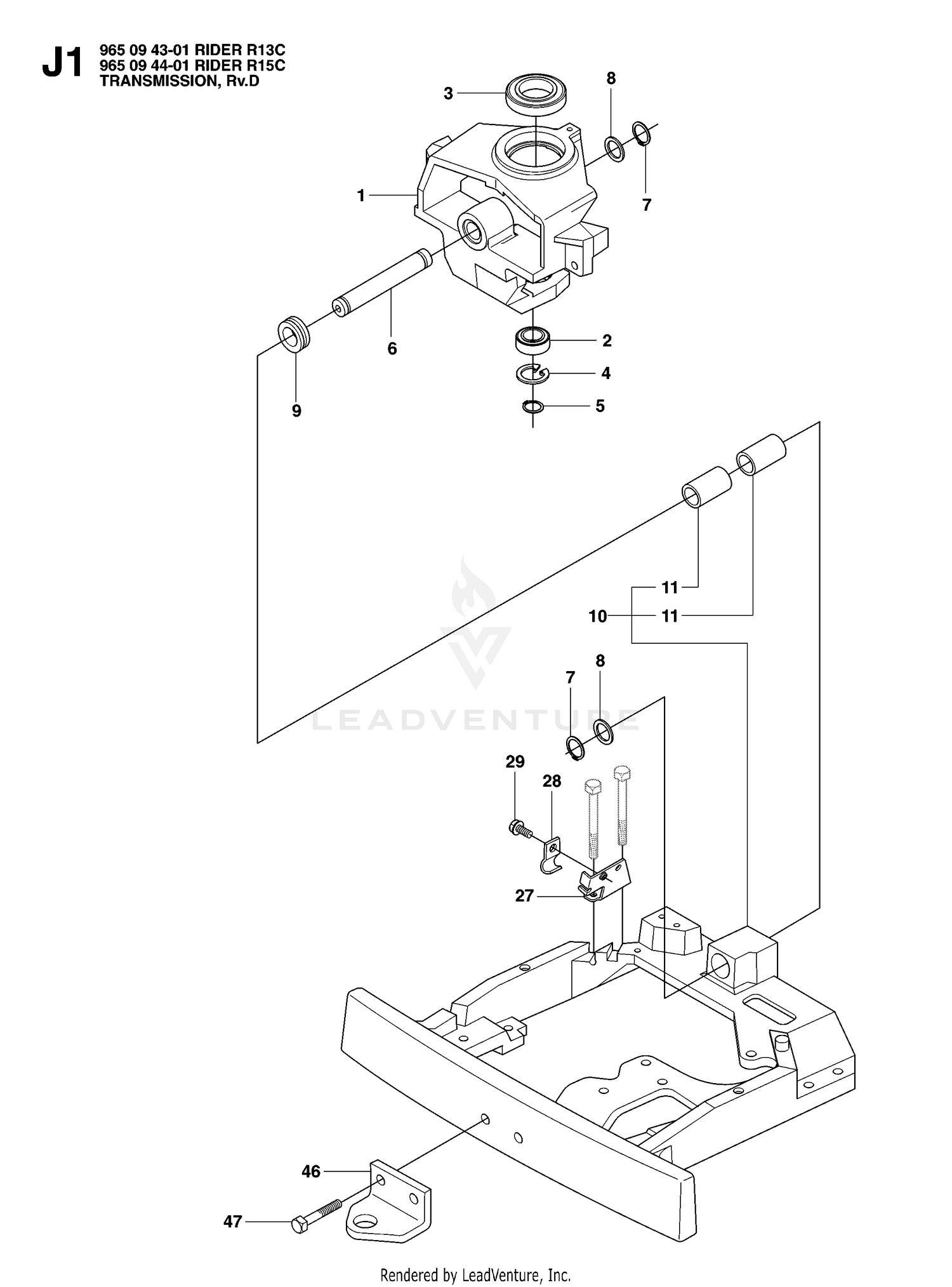

TRANSMISSION 3
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 506985803 | SPINDLE Price: $179.99 |
| 1 | 99-3586 | PLUNGER Price: $268.45 |
| 2 | 738210504 | Ball Bearing 6005-2rs Price: $28.99 |
| 3 | 58-6310 | SPACER Price: $108.75 |
| 4 | 735314010 | CIRCLIP SGH 47 Price: $4.99 |
| 5 | 58-6330 | SEAT Price: $39.50 |
| 5 | 735312600 | RETAINING RING SGA 25 Price: $2.99 |
| 6 | 506985901 | SHAFT Price: $44.99 |
| 6 | 58-6350 | PLUG Price: $36.88 |
| 7 | 69-1800 | PLUG ASM Price: $79.15 |
| 7 | 735312600 | RETAINING RING SGA 25 Price: $2.99 |
| 8 | 506773401 | WASHER Price: $3.99 |
| 8 | 58-6400 | BUSHING Price: $37.39 |
| 9 | 69-1810 | SPRING Price: $6.09 |
| 9 | 740681421 | V-RING Price: $3.99 |
| 10 | 535406001 | BRACKET Price: $299.99 |
| 10 | 58-6420 | CAP Price: $42.88 |
| 11 | 506986102 | BUSHING Price: $14.99 |
| 11 | 99-3585 | DETENT-PLUNGER Price: $95.39 |
| 13 | 99-3588 | PLUG ASM Price: $46.24 |
| 14 | 99-3531 | SPRING Price: $25.55 |
| 17 | 99-3587 | SPRING Price: $27.06 |
| 18 | 60-6450 | DISC Price: $12.41 |
| 19 | 353-989 | PLUG-HEX, HOLLOW Price: $21.59 |
| 20 | 65-2770 | WASHER Price: $2.17 |
| 21 | 99-3589 | SEAL KIT Price: $46.58 |
| 27 | 506987701 | BRACKET Price: $11.99 |
| 28 | 506566501 | CLAMP Price: $2.99 |
| 29 | 725236461 | SCREW Price: $2.99 |
| 46 | 506889901 | DRAW RING Price: $17.99 |
| 47 | 725249371 | Screw M10x25 Price: $1.82 |
