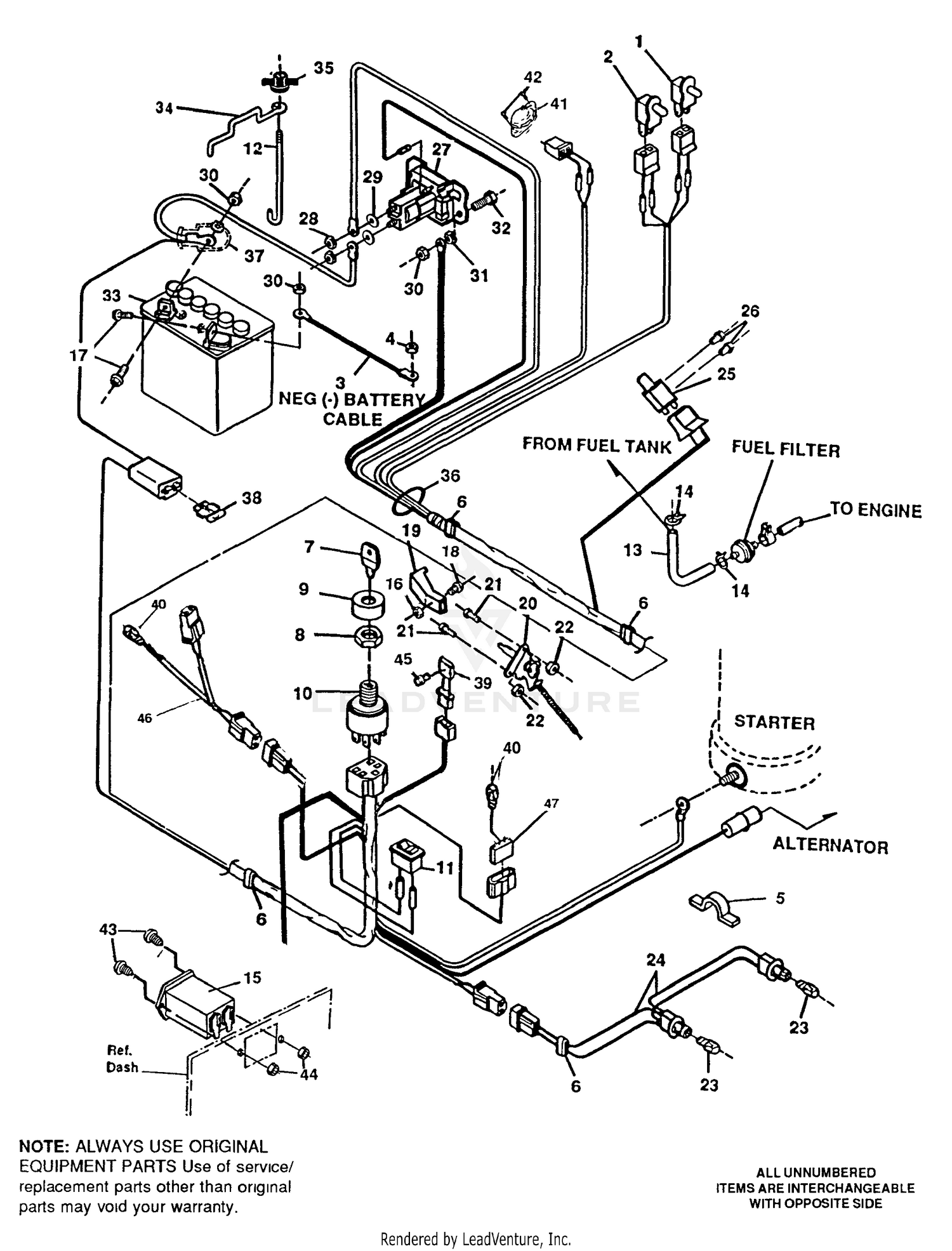

| Ref | Part Number | Description |
|---|
| 1 |
308187 |
Seat Switch Price: Call Us |
| 1 |
32104-76 |
SCREW-HWHTF Price: $2.29 |
| 2 |
12553 |
Deck Safety Switch Price: Call Us |
| 2 |
94-2694-01 |
COVER-RH This part replaces 94-2694. Price: $46.16 |
| 3 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 3 |
55511 |
Cable, Battery, Negative Price: Call Us |
| 4 |
271184 |
Nut, Hx, Keps, 5/16-18 Thd. Price: Call Us |
| 4 |
3274-69 |
SCREW-HSBH This part replaces 3274-91. Price: $0.43 |
| 5 |
28-4210 |
SOLENOID Price: $63.91 |
| 5 |
41482 |
Press Clip Price: Call Us |
| 6 |
3254-1 |
WASHER-LOCK, INT Price: $0.49 |
| 6 |
57444 |
Tie Cable Price: Call Us |
| 7 |
300626 |
Key, Ignition Switch Price: Call Us |
| 7 |
3219-14 |
NUT-HEX Price: $0.25 |
| 8 |
300193 |
Nut, Switch Price: Call Us |
| 8 |
3218-13 |
NUT-JAM, BRASS Price: $0.88 |
| 9 |
300194 |
Boot, Switch Price: Call Us |
| 9 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 10 |
305720 |
Switch, Ignition Price: Call Us |
| 10 |
321-3 |
SCREW-HH Price: $0.28 |
| 11 |
104-8162 |
BATTERY-DRY This part replaces 28-1400. Price: $114.99 |
| 11 |
300334 |
Switch, Light Price: Call Us |
| 12 |
3217-5 |
NUT-HEX Price: $0.25 |
| 12 |
57551 |
Rod, Battery Hold-Down Price: Call Us |
| 13 |
28-8080 |
BOOT-TERMINAL Price: $22.99 |
| 13 |
47452 |
Gas Line, 13-1/2" (cut to length) Price: Call Us |
| 14 |
32103-12 |
NUT-WING Price: $1.15 |
| 14 |
47345 |
Clamp, Gas Line Price: Call Us |
| 15 |
304739 |
Minature Hour Meter Price: Call Us |
| 16 |
100-6434 |
ROD-HOLD DOWN, BATTERY This part replaces 72-4790. Price: $10.10 |
| 16 |
120622 |
Nut, Hex, #8-32 Thd. Price: Call Us |
| 17 |
100-6435 |
POST-BATTERY This part replaces 56-7720. Price: $15.91 |
| 17 |
120854 |
Screw, 1 /4-20 x .63 Price: Call Us |
| 18 |
159585 |
Screw, Ph Pn, #8-32 x 3/8 In. Price: Call Us |
| 18 |
92-9164-01 |
FRAME ASM This part replaces 92-9164. Price: $2,764.38 |
| 19 |
304439 |
Knob, Throttle Control Price: Call Us |
| 19 |
83-0840-01 |
SHIELD-COVER, VALVE This part replaces 83-0840. Price: $41.96 |
| 20 |
315716 |
Throttle Control Price: Call Us |
| 20 |
46-8560 |
SCREW-HHFTF Price: $1.79 |
| 21 |
105-9751 |
DECAL This part replaces 61-3310. Price: $19.23 |
| 21 |
159943 |
Screw, #10-24 X 5/8 In. Price: Call Us |
| 22 |
308459 |
Nut, Hx, Nylon Lock, #10-24 Thd. Price: Call Us |
| 22 |
3290-470 |
SCREW-POH Price: $0.73 |
| 23 |
52572 |
Bulb Headlamp Price: Call Us |
| 23 |
83-1430 |
HOSE-LINE, RETURN Price: $18.75 |
| 24 |
2412-34 |
CLAMP-HOSE Price: $2.14 |
| 24 |
303064 |
Assembly, Light Wire Price: Call Us |
| 25 |
57476 |
Switch Price: Call Us |
| 25 |
95-4356 |
FITTING This part replaces 353-563. Price: $67.28 |
| 26 |
237-101 |
O-RING Price: $2.80 |
| 26 |
57220 |
Screw, Pn Hd, Tap #12 x 112 In. Price: Call Us |
| 27 |
44-5560 |
HEAD-FILTER, OIL Price: $221.42 |
| 27 |
53716 |
Solenoid Price: Call Us |
| 28 |
120368 |
Nut, Hx 5/16-24 Thd. Price: Call Us |
| 28 |
72-3850 |
SEAL-FILTER, OIL Price: $13.97 |
| 29 |
138485 |
Washer, Lock 5/16 In. Price: Call Us |
| 29 |
74-3570 |
FILTER Price: $44.28 |
| 30 |
271172 |
Nut, Hx, Keps, 1/4-20 Thd. Price: Call Us |
| 30 |
68-5880 |
HOSE-HYD Price: $112.20 |
| 31 |
1502 |
Nut, Hx, Ctrlk, 1/4-20 Thd. Price: Call Us |
| 31 |
353-564 |
FITTING-90 DEG Price: $167.47 |
| 32 |
187745 |
Screw, 1/4-20 X 3/4 In. Price: Call Us |
| 32 |
27-2380 |
SPACER Price: $11.14 |
| 33 |
302257 |
Battery Price: Call Us |
| 33 |
83-0830-01 |
PANEL-CONTROL, UPPER This part replaces 83-0830. Price: $140.31 |
| 34 |
302912 |
Bracket, Battery Hold-Down Price: Call Us |
| 34 |
3296-16 |
NUT-LOCK, NI Price: $1.39 |
| 35 |
310067 |
Wingnut Price: Call Us |
| 35 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 36 |
315691 |
Wiring Harness Price: Call Us |
| 36 |
322-4 |
SCREW-HH Price: $0.35 |
| 37 |
308201 |
Boot, Rubber (Battery Cable) Price: Call Us |
| 37 |
32149-2 |
NUT-KEPS Price: $2.39 |
| 38 |
302031 |
Fuse, 15A-32V Price: Call Us |
| 39 |
307056 |
Low Voltage Sensor Price: Call Us |
| 39 |
67-1300 |
DECAL Price: $29.99 |
| 40 |
237-143 |
O-RING Price: $1.34 |
| 40 |
57769 |
Bulb Indicator Price: Call Us |
| 41 |
32149-7 |
NUT-KEPS Price: $0.27 |
| 41 |
57547 |
Seat Switch Price: Call Us |
| 42 |
160505 |
Screw, 1/4-20 x .38 Price: Call Us |
| 42 |
92-5524 |
DISCONTINUED Price: Call Us |
| 43 |
308347 |
Screw, #6-32 x 1 /2 1 n. Price: Call Us |
| 44 |
271482 |
Nut, #6-32 Thd. Price: Call Us |
| 45 |
300302 |
Screw, Plastite Price: Call Us |
| 46 |
305778 |
Low Fuel Wire Price: Call Us |
