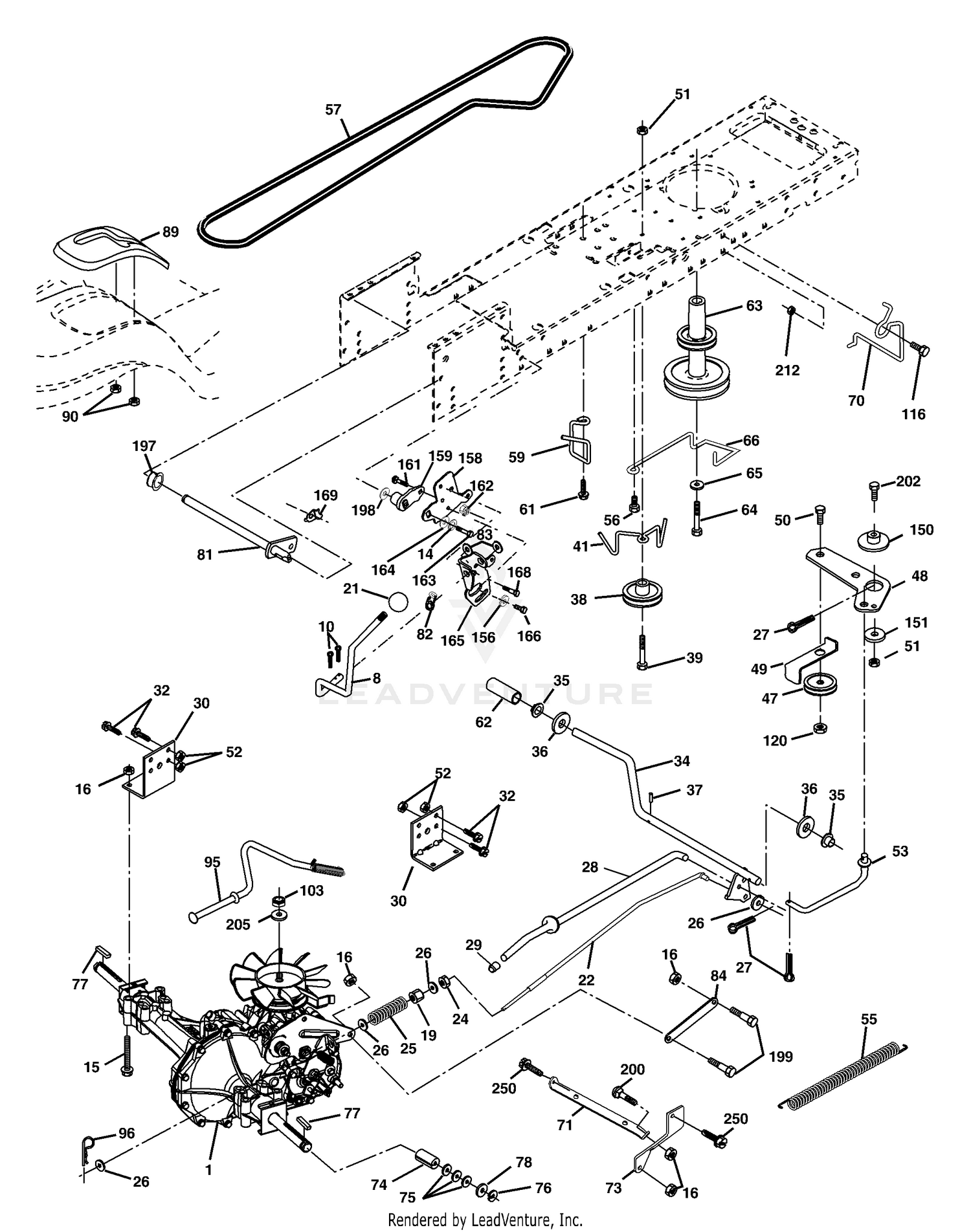

| Ref | Part Number | Description |
|---|
| 2 |
99-5610 |
PIN Price: $40.16 |
| 3 |
98-1880-03 |
KNUCKLE-PIVOT This part replaces 98-1880-01. Price: $350.23 |
| 4 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 6 |
94-8947 |
BUSHING-FLANGE Price: $4.54 |
| 8 |
532165866 |
ROD SHIFT FENDER ADJUST STLT Price: $24.99 |
| 10 |
596029601 |
Pins This part replaces 876020416. Price: $1.99 |
| 11 |
99-2561 |
DISCONTINUED Price: Call Us |
| 13 |
94-8946 |
WASHER-THRUST Price: $1.96 |
| 14 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040400. Price: $2.99 |
| 15 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 15 |
595316601 |
Bolts This part replaces 874490544. Price: $3.99 |
| 16 |
106-9208 |
SHORT CYLINDER PIN ASM This part replaces 83-6790. Price: $83.12 |
| 16 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 19 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 19 |
75-6370 |
CAP-SENSOR Price: $8.87 |
| 20 |
32104-76 |
SCREW-HWHTF Price: $2.29 |
| 21 |
532140845 |
KNOB.DELUXE.(PISTOL.GRIP).BLAC Price: $11.99 |
| 21 |
92-8754 |
DISCONTINUED Price: Call Us |
| 22 |
532169498 |
ROD BRAKE HYDRO Price: $17.99 |
| 22 |
94-9998 |
WASHER-THRUST Price: $11.60 |
| 23 |
94-9974 |
RING-RETAINING Price: $0.70 |
| 24 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $4.99 |
| 24 |
93-6687 |
DECAL-NO STEP Price: $14.45 |
| 25 |
532151332 |
SPRING, BRAKE ROD This part replaces 532106888. Price: $4.99 |
| 25 |
99-2564 |
DISCONTINUED Price: Call Us |
| 26 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 26 |
92-8002 |
SWITCH-LIFT, BACK BIASED Price: $105.67 |
| 27 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 27 |
75-5350 |
PIN-SLIDE, CYLINDER Price: $41.31 |
| 28 |
140-6431 |
PIVOT PIN ASM This part replaces 95-7158. Price: $37.92 |
| 28 |
532175765 |
ROD, PARKING BRAKE Price: $4.99 |
| 29 |
110-9709 |
HYD CYLINDER ASM This part replaces 99-6986. Price: $743.86 |
| 29 |
532071673 |
PLUNGER CAP Price: $4.99 |
| 30 |
340-132 |
FITTING-ELBOW, 90 DEG Price: $24.64 |
| 30 |
532130807 |
BRACKET TRANSAXLE This part replaces 532174973. Price: $3.99 |
| 31 |
99-5642 |
HOSE-HYD Price: $157.38 |
| 32 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874760512. Price: $3.99 |
| 33 |
100-3799 |
HOSE ASM Price: $143.98 |
| 34 |
532175578 |
SHAFT, FOOT PEDAL Price: $27.99 |
| 35 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 36 |
596933401 |
Washers This part replaces 819211616. Price: $2.99 |
| 37 |
532001572 |
PIN.ROLL.3/16 X 1" This part replaces 532124963. Price: $3.99 |
| 38 |
532179114 |
PULLEY IDLER COMPOSITE Price: $19.99 |
| 38 |
99-5615 |
DISCONTINUED Price: $1,494.85 |
| 39 |
328-7 |
SCREW-HH Price: $4.00 |
| 39 |
596564405 |
Bolts This part replaces 874760648. Price: $2.99 |
| 40 |
3296-51 |
NUT-LOCK, NI Price: $3.23 |
| 41 |
532175556 |
KEEPER, BELT IDLER Price: $6.99 |
| 42 |
100-3811 |
HYD HOSE ASM Price: $154.34 |
| 43 |
105-0110 |
NO. 5 LIFT ARM ASM This part replaces 99-2565. Price: $912.87 |
| 44 |
340-92 |
FITTING-STRAIGHT Price: $12.29 |
| 45 |
33114-020 |
SCREW-HH Price: $0.28 |
| 47 |
532139245 |
PULLEY IDLER This part replaces 532127783. Price: $32.99 |
| 48 |
532154407 |
BELLCRANK, CLUTCH Price: $5.99 |
| 48 |
99-5621 |
GUIDE-HOSE Price: $34.45 |
| 49 |
531151801 |
SERVICE KIT RETAIN BELT RETAIN This part replaces 532123205. Price: $3.99 |
| 49 |
83-6780 |
PIN-CYLINDER This part replaces 83-6780-01. Price: $130.51 |
| 50 |
2412-96 |
CLAMP-R Price: $3.46 |
| 50 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 51 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 51 |
92-7565 |
HOSE ASM Price: $89.51 |
| 52 |
322-4 |
SCREW-HH Price: $0.35 |
| 52 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 53 |
532199652 |
LINK.CLUTCH.7.66.2005 This part replaces 532105710. Price: $8.99 |
| 53 |
92-7562 |
HOSE ASM Price: $71.47 |
| 54 |
138-6951 |
CYLINDER ASM-HYDRAULIC This part replaces 93-2650. Price: $664.52 |
| 55 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 56 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 57 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 57 |
532140294 |
DRIVE BELT, LTH & YTH TRACTORS Price: $34.99 |
| 59 |
532169691 |
KEEPER, BELT CENTER Price: $17.99 |
| 60 |
3296-49 |
NUT-LOCK, NI Price: $4.93 |
| 61 |
32121-110 |
PIN-ROLL, SLOTTED Price: $1.93 |
| 61 |
817490614 |
Screw, Hex Washer Hd. 3/8 - 16 x 7/8 This part replaces 817120614. Price: $3.20 |
| 62 |
510089501 |
PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99 |
| 62 |
98-7974 |
WASHER-THRUST Price: $37.96 |
| 63 |
532175410 |
ENGINE PULLEY Price: $64.99 |
| 63 |
98-7993 |
SCREW-HHF Price: $3.05 |
| 64 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 64 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 871170764. Price: $2.99 |
| 65 |
3-6781 |
WASHER-THRUST Price: $1.40 |
| 65 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 66 |
531151001 |
SERVICE KIT BELT KEEPER This part replaces 532154778. Price: $6.99 |
| 66 |
76-2980 |
WASHER-THRUST Price: $5.08 |
| 68 |
106-9004 |
BUMPER This part replaces 99-5605. Price: $6.35 |
| 69 |
283-71 |
PIN-LYNCH Price: $2.73 |
| 70 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 70 |
531165301 |
SERVICE KIT KEEPER BELT This part replaces 532134683. Price: $6.99 |
| 71 |
532169183 |
STRAP TORQUE LH HYDRO Price: $4.99 |
| 73 |
532169182 |
STRAP TORQUE RH HYDRO Price: $14.99 |
| 74 |
532137057 |
SPACER AXLE Price: $5.99 |
| 75 |
532121749 |
WASHER Price: $2.99 |
| 76 |
812000001 |
E-RING LT Price: $3.99 |
| 77 |
532123583 |
SQUARE KEY Price: $3.99 |
| 78 |
532121748 |
WASHER Price: $3.99 |
| 81 |
532165596 |
SHAFT ASM CROSS TAPERED Price: $32.99 |
| 82 |
532165711 |
SHIFT SPRING Price: $5.99 |
| 83 |
734117771 |
BUSHING This part replaces 819171216. Price: $3.99 |
| 84 |
532169843 |
LINK TRANSAXLE Price: $5.99 |
| 89 |
532176940 |
CONSOLE, SHIFT Price: $4.59 |
| 90 |
532124346 |
NUT.PUSH.3/16 Price: $6.99 |
| 95 |
532170201 |
CONTROL ASM. BYPASS HYDRO Price: $8.99 |
| 96 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 103 |
873940800 |
NUT.HEX.1/2-20 Price: $3.99 |
| 116 |
596728201 |
Bolts This part replaces 872140608. Price: $3.99 |
| 120 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 150 |
532175456 |
SPACER, RETAINER Price: $4.99 |
| 151 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 156 |
596218801 |
Washers This part replaces 532166002. Price: $1.99 |
| 158 |
532437458 |
BRACKET.SHIFT.MOUNT This part replaces 532165589. Price: $5.99 |
| 159 |
532444304 |
HUB.SHIFT This part replaces 532183900. Price: $5.99 |
| 161 |
872110407 |
BOLT.CARRIAGE.1/4-20 X 7/8 This part replaces 872140406. Price: $3.99 |
| 162 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873680400. Price: $3.99 |
| 163 |
596230901 |
Screws This part replaces 874780416. Price: $2.99 |
| 164 |
819091010 |
Washer 5/8 x .281 x 10 Ga Price: $3.15 |
| 165 |
531149501 |
SERVICE KIT BRACKET BRACKET.PI This part replaces 532165623. Price: $4.99 |
| 166 |
532166880 |
SCREW Price: $4.99 |
| 168 |
532165492 |
BOLT.SHOULDER.5/16-18X Price: $8.99 |
| 169 |
532165580 |
PLATE.FASTENING.CROSS.SHAFT Price: $5.99 |
| 197 |
532169613 |
NYLINER SNAP 5/8" ID Price: $4.99 |
| 198 |
532169593 |
WASHER.NYL.7/8IDX.105"HYD CR Price: $9.99 |
| 199 |
596231101 |
BOLT.5/16-18X.910 ST CLR ZINC This part replaces 532169612. Price: $3.99 |
| 200 |
595901501 |
Bolts This part replaces 872140508. Price: $3.99 |
| 202 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 205 |
596040101 |
Washers This part replaces 819171616. Price: $2.99 |
| 212 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
