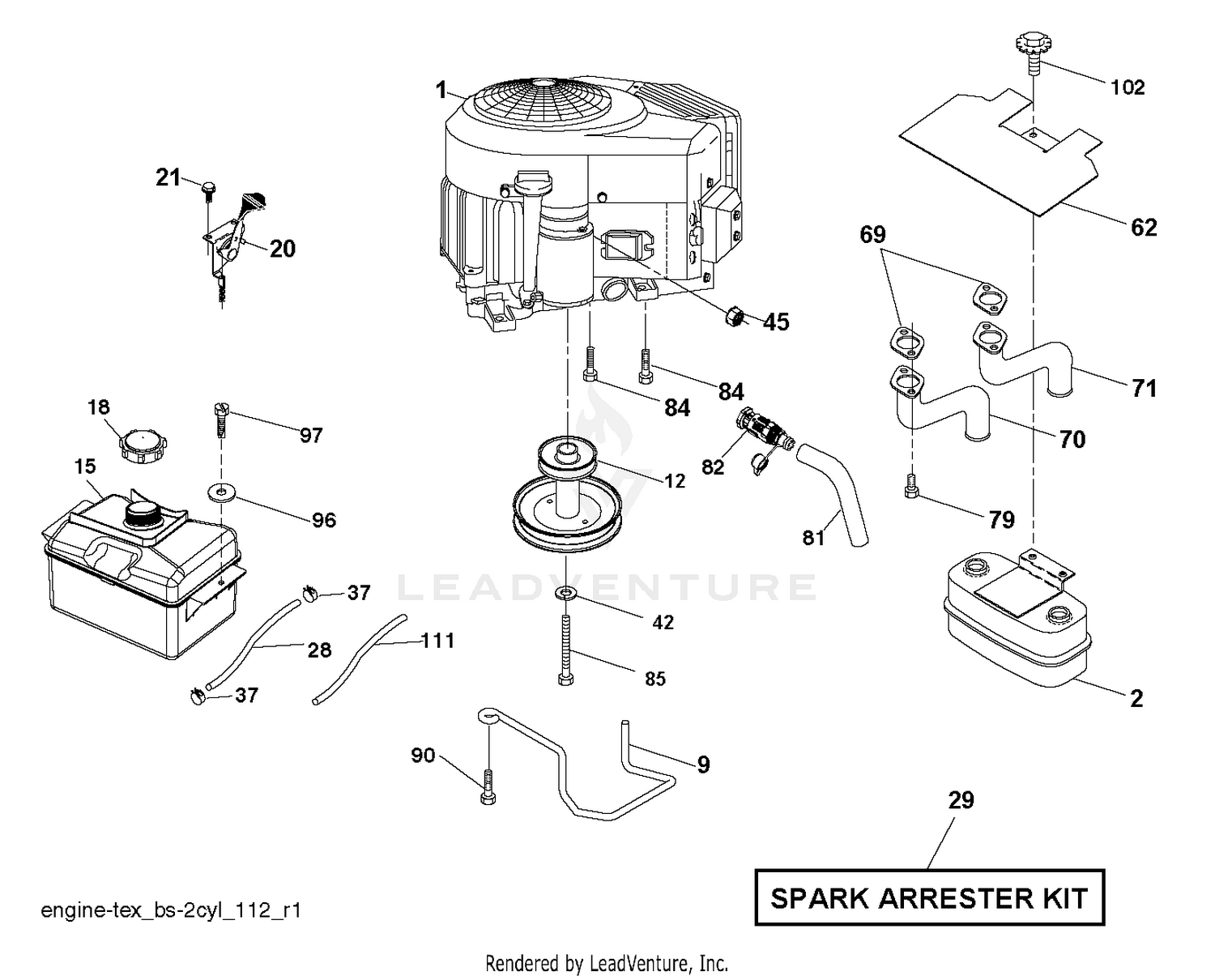

| Ref | Part Number | Description |
|---|
| 1 |
251-347 |
BEARING-BALL Price: $9.69 |
| 2 |
532445962 |
MUFFLER.ASM.TWN.EXTNDED.DFLCTR Price: $54.99 |
| 3 |
106-6941 |
SEAL Price: $5.74 |
| 4 |
106-6942 |
V-RING Price: $8.86 |
| 5 |
107-8133 |
WASHER-FLAT Price: $3.05 |
| 6 |
107-3505 |
SPACER-TOOL, ROLLER Price: $8.20 |
| 9 |
584908001 |
KEEPER BELT ENGINE Price: $2.99 |
| 12 |
532405472 |
PULLEY ENGINE This part replaces 586728901. Price: $34.99 |
| 15 |
532433007 |
TANK.ASM.FRT.2.5 GAL.W/CAP.EPA Price: $119.99 |
| 18 |
581176101 |
CAP.FUEL.2 WAY VENT Price: $34.99 |
| 20 |
587242501 |
THROTTLE.COBRA.38"READSTART.BK Price: $17.99 |
| 21 |
532416358 |
SCREW.#10 X 0.750.BOS (2 2) Price: $2.99 |
| 28 |
532401137 |
LINE.FUEL.20"FRONT.EMI Price: $9.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR(392390 B&S) Price: $129.99 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 42 |
539990247 |
WASHER 7/16 LOCK This part replaces 810040700. Price: $1.99 |
| 45 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 873510400. Price: $2.99 |
| 62 |
532434017 |
SHIELD.HEAT.MUFFLER Price: $11.99 |
| 69 |
532272293 |
Gasket Eng 1 313 Id Tin Plated (AYP part number) This part replaces 532165291. Price: $7.99 |
| 70 |
532159955 |
RP.EXHAUST.TUBE.LH.BS/TWIN This part replaces 581881101. Price: $27.99 |
| 71 |
532160589 |
RP.EXHAUST.TUBE.RH.BS/TWIN This part replaces 581881001. Price: $39.99 |
| 79 |
532183906 |
SCREW.SOCKET.HEAD.5/16-18 Price: $3.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $2.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN Price: $11.99 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $3.99 |
| 85 |
501606501 |
Speed Clip This part replaces 532173937. Price: $1.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $3.99 |
| 96 |
819091416 |
WASHER Price: $3.99 |
| 97 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $2.99 |
| 102 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $2.99 |
