Parts Catalog

⚓ Флот 📚 Manuals Replacements 38,231,304 parts

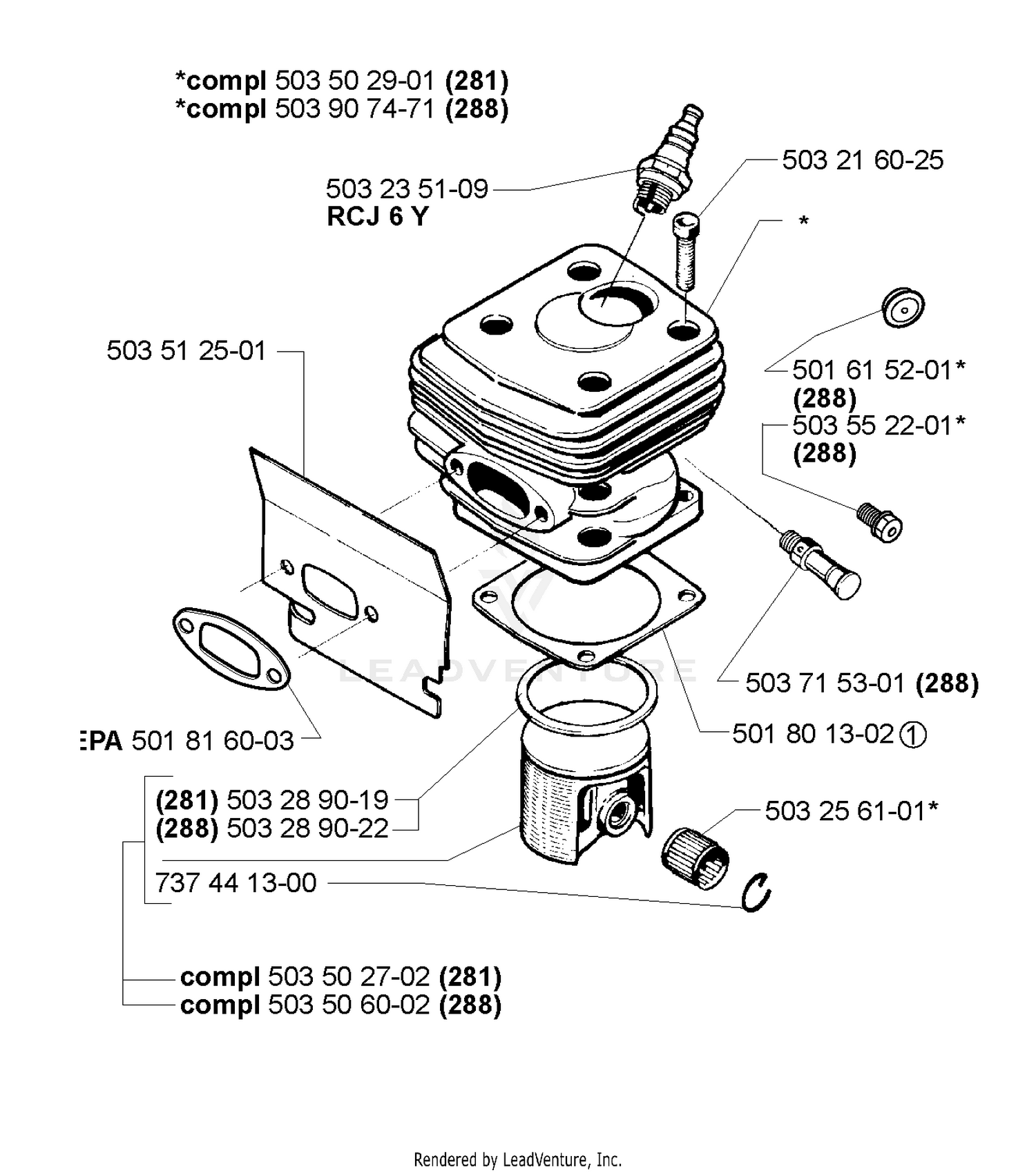

Piston/Cylinder

Piston/Cylinder

Parts (24)

RefPart NumberDescription
1 94-3132 SCREW-HHF Price: $1.17
2 94-3130 SCREW-HH Price: $0.57
3 94-3125 DISCONTINUED Price: Call Us
4 94-3129 PLUG Price: $1.40
5 94-3126 DISCONTINUED Price: Call Us
6 94-3133 NUT-W/WASHER Price: $1.04
7 94-3127 DISCONTINUED Price: Call Us
8 94-3134 NUT Price: $4.71
9 94-3128 CASE-TIMING, RIGHT Price: $90.91
501615201 501615201 PLUG Price: $3.99
501801302 501801302 GASKET Price: $4.99
501816003 501816003 GASKET Price: $5.99
503216025 503216025 SCREW Price: $3.99
503235109 530030179 PLUG SPARK (RCJ6-Y) This part replaces 503235109. Price: $3.99
503256101 503256101 SUPPORT BUSHING Price: $22.99
503289019 503289019 PISTON RING Price: $17.99
503289022 544225101 PISTON RING This part replaces 503289022. Price: $14.99
503502702 544224002 PISTON This part replaces 503502702. Price: $139.99
503502901 544223002 CYLINDER ASSY This part replaces 503502901. Price: $379.99
503506002 544224102 PISTON ASSY This part replaces 503506002. Price: $109.99
503512501 503512501 DEFLECTOR Price: $5.99
503552201 503552201 CYLINDER PLUG Price: $6.99
503715301 503715301 DECOMPRESSION VALVE Price: $29.99
503907471 544223102 CYLINDER ASSY This part replaces 503907471. Price: $379.99
