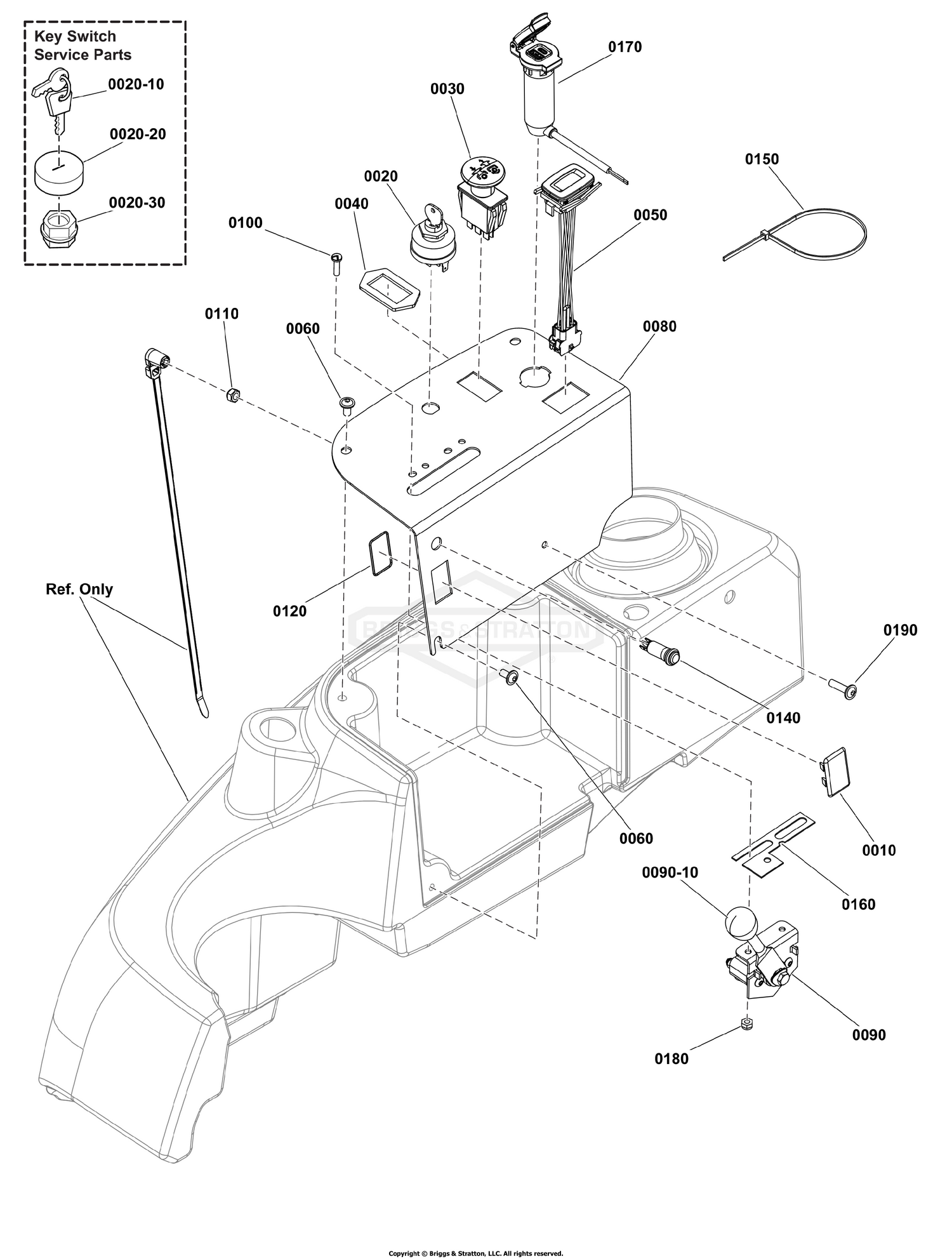

Instrument Control Panel Group - Models with USB Port S/N: 4002403853 and Below

Instrument Control Panel Group - Models with USB Port S/N: 4002403853 and Below

Parts (12)

RefPart NumberDescription
0010 1709188SM PLUG, BLACK PLASTIC Price: $4.62
0030 1722887SM SWITCH-PTO PUSH Price: $30.86
0040 5022222SM RING, SWITCH RETAINER Price: $3.94
0060 84002228 SCREW, FLANGE Price: $2.22
0080 84011147 PANEL, Control Panel Price: $20.55
0100 5025179X6SM SCREW - #10-24 Price: $6.24
0110 5025095SM NUT, 1/4-20 HEX NYLON Price: $2.97
0120 5022269SM O-RING, 7/8" ID X 1/1 Price: $2.97
0140 5103809YP LIGHT, Indicator Price: $27.00
0150 5021029SM TIE, Cable 11" Long Price: $2.23
0170 84008798 USB Port Price: $83.68
0180 5025271FS NUT Price: $3.62
