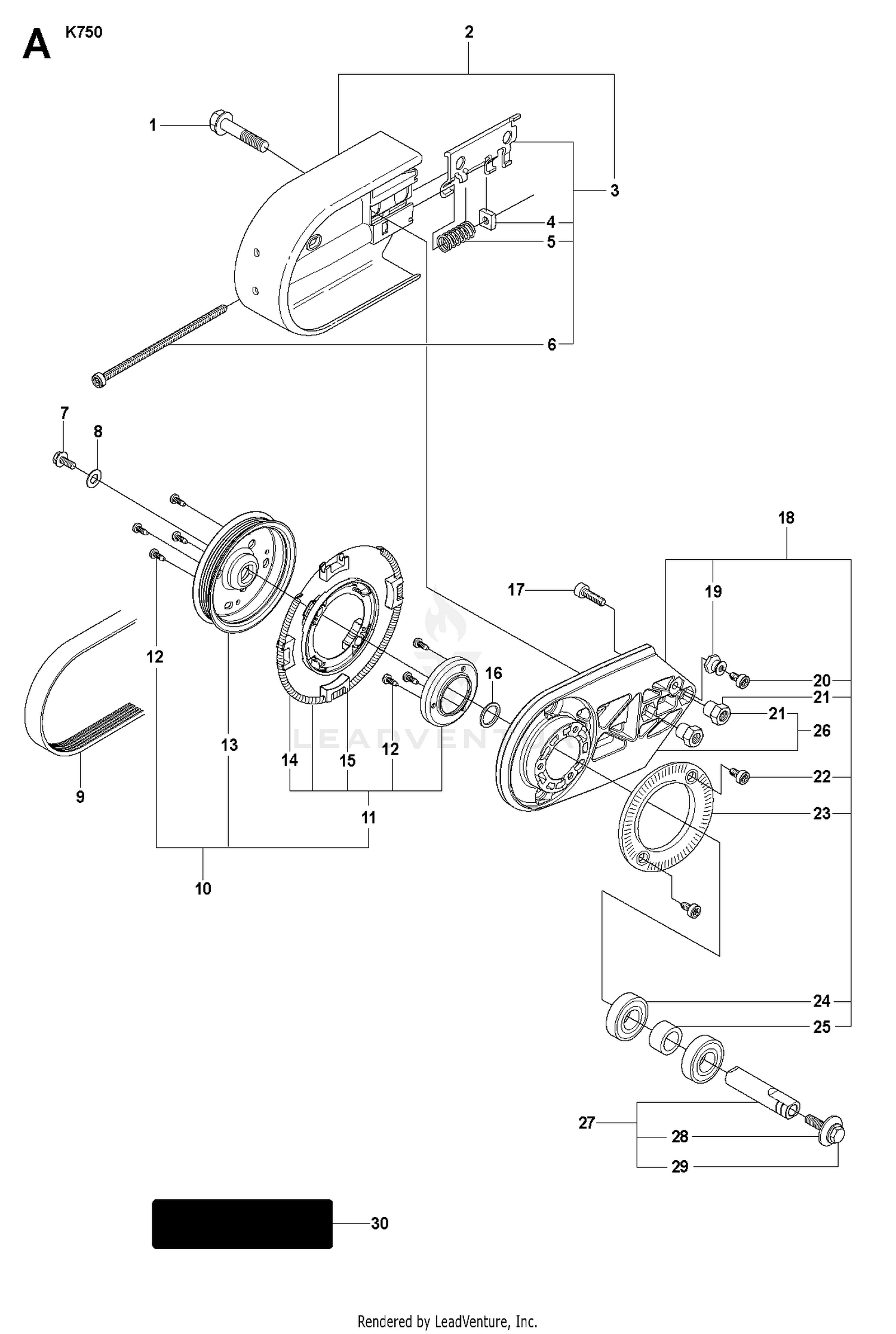

BELT GUARD & PULLEY
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 506284401 | BOLT This part replaces 506284402. Price: $3.99 |
| 4 | 506409301 | NUT Price: $3.99 |
| 5 | 506266801 | SPRING Price: $3.99 |
| 6 | 503207205 | SCREW Price: $4.99 |
| 7 | 503200045 | SCREW Price: $3.99 |
| 8 | 503230116 | WASHER Price: $2.99 |
| 9 | 544908402 | BELT Price: $44.99 |
| 12 | 503212810 | SCREW Price: $2.99 |
| 13 | 544440602 | PULLEY Price: $49.99 |
| 14 | 544441001 | DRAW SPRING Price: $5.99 |
| 15 | 544440402 | BRAKE SHOE Price: $4.99 |
| 16 | 503230104 | WASHER 15X21 Price: $3.99 |
| 17 | 725532955 | SCREW MC6S 5X16 Price: $6.99 |
| 20 | 503215316 | SCREW Price: $3.99 |
| 21 | 506287301 | NUT Price: $6.99 |
| 22 | 503215310 | SCREW Price: $3.99 |
| 23 | 506288401 | FLANGE Price: $4.99 |
| 24 | 503252101 | BALL BEARING Price: $19.99 |
| 25 | 506070801 | SPACER Price: $5.99 |
| 28 | 506139511 | WASHER Price: $4.99 |
| 29 | 581855201 | SCREW This part replaces 506139601. Price: $9.99 |
