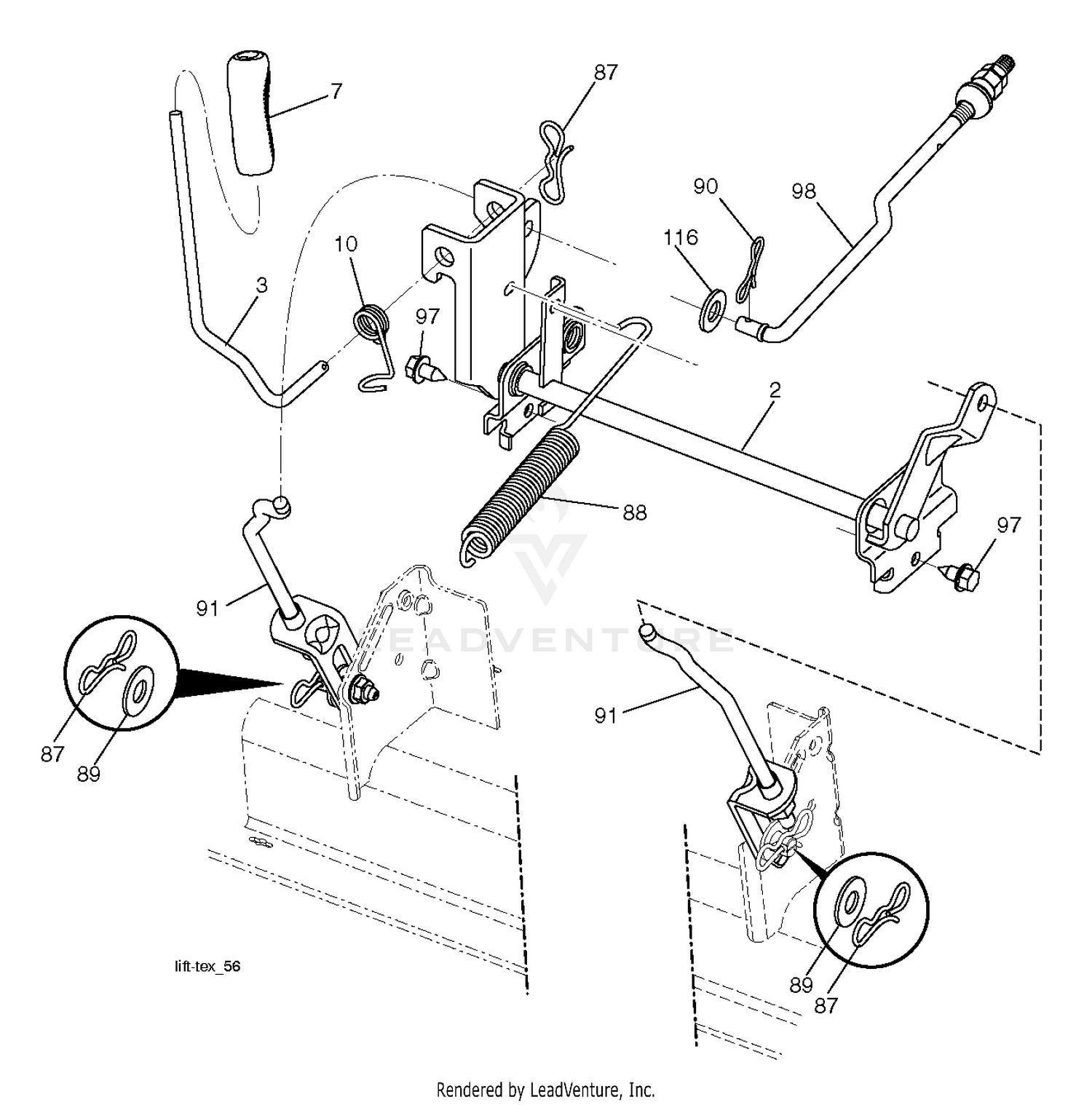

| Ref | Part Number | Description |
|---|
| 1 |
133-9105 |
BRACKET-HOC, LH Price: $111.34 |
| 2 |
133-9104 |
BRACKET-HOC, RH Price: $109.16 |
| 2 |
532422027 |
SHAFT.ASM.CROSS.LIFT Price: $49.99 |
| 3 |
133-9106 |
UP-QUICK, LH Price: $21.63 |
| 3 |
532195231 |
LEVER.LIFT.HANDLE.LT Price: $29.99 |
| 4 |
133-9101 |
UP-QUICK, RH Price: $21.63 |
| 5 |
133-9103 |
COVER-UP, QUICK Price: $24.81 |
| 6 |
120-2938 |
SPRING-COMPRESSION Price: $3.41 |
| 7 |
137-0874 |
BOLT-EYE This part replaces 132-0708. Price: $8.79 |
| 7 |
532411555 |
GRIP.HANDLE.LIFT.PVC.BLACK This part replaces 580962301. Price: $2.99 |
| 8 |
137-0828 |
NUT-ADJUSTER This part replaces 120-2937. Price: $27.54 |
| 9 |
137-0816 |
SPRING-DETENT This part replaces 132-0741. Price: $9.47 |
| 10 |
131-1883 |
SCREW-HSBH Price: $0.59 |
| 10 |
532196314 |
SPRING.TORSION.LIFT.HANDLE Price: $2.99 |
| 11 |
115-7293 |
WASHER-HARDENED Price: $0.75 |
| 12 |
112-7451 |
SCREW-TAP Price: $2.17 |
| 13 |
48-9220 |
WASHER-PLAIN Price: $0.87 |
| 14 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 15 |
120-2939 |
SPRING-COMPRESSION Price: $3.00 |
| 16 |
32128-20 |
NUT-HF Price: $0.99 |
| 17 |
119-3626 |
SCREW-HH Price: $2.31 |
| 18 |
133-9145-03 |
BUMPER-GROOMER, LH Price: $11.55 |
| 19 |
133-9146-03 |
BUMPER-GROOMER, RH Price: $11.55 |
| 20 |
4-2390 |
WASHER-FLAT Price: $0.62 |
| 25 |
133-9171 |
FAIRWAY SKID KIT (UNIV GROOMER) Price: $26.14 |
| 87 |
532194209 |
PIN.COTTER.7/16.BOW TI. Price: $1.99 |
| 88 |
532410710 |
SPRING.LIFT.ASSIST Price: $4.99 |
| 89 |
819191912 |
WASHER.CLEAR.ZINC Price: $3.99 |
| 90 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $1.99 |
| 91 |
532197984 |
LINK.LIFT.ASM.REAR.GT. Price: $32.99 |
| 97 |
817000612 |
SCREW, 3/8-16X3/4 Price: $2.99 |
| 98 |
532420525 |
LINK.FRONT.MOWER.SUSP.ASM.BLK Price: $9.99 |
