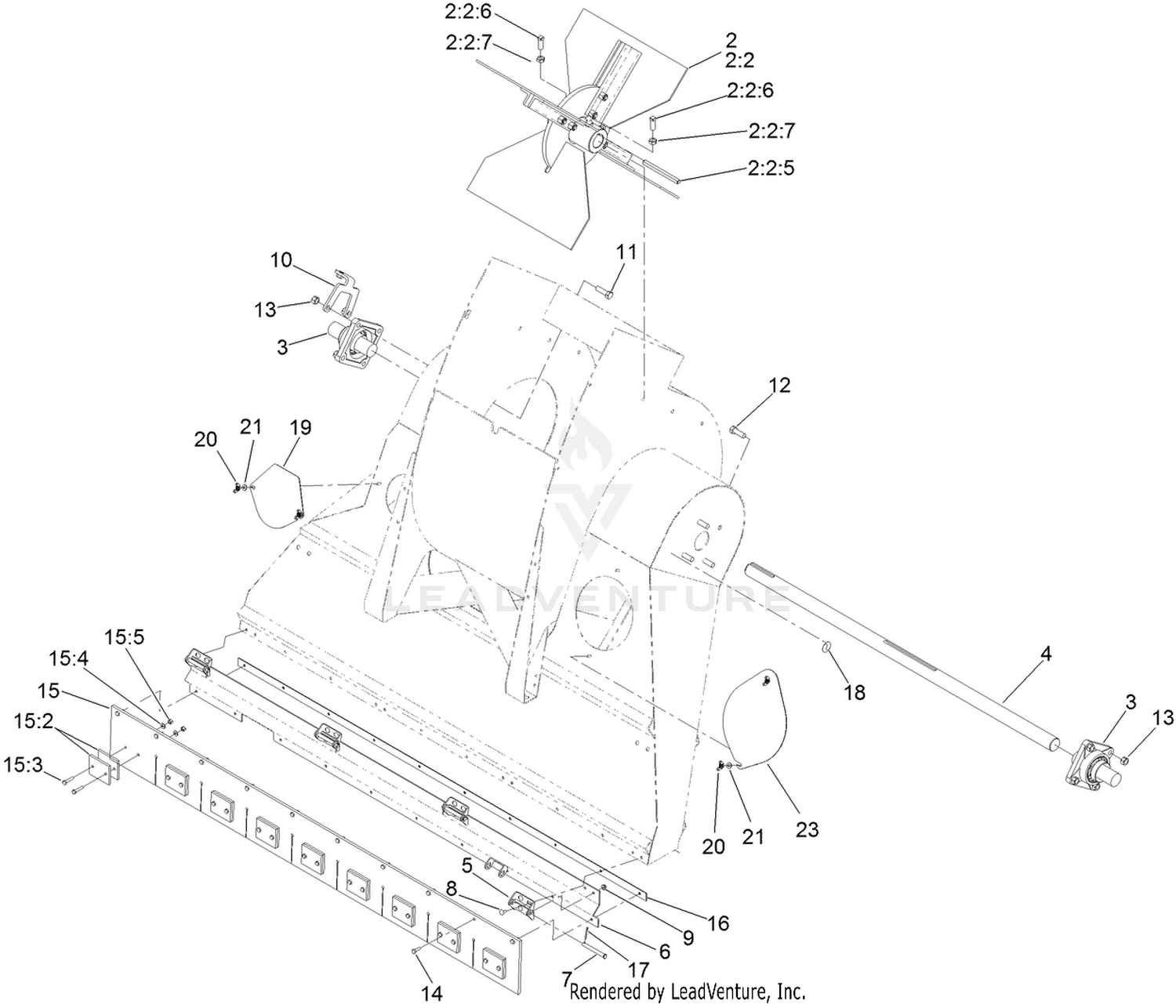

Blower Fan and Throat Flap Assembly
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 13-3420-03 | FAN ASM Price: $2,196.74 |
| 3 | 56-6220 | BEARING Price: $122.98 |
| 4 | 13-3790 | FAN SHAFT Price: $671.39 |
| 5 | 107-1549 | HINGE-HALF Price: $18.68 |
| 6 | 120-5960-03 | FLAP-BLADE, LOWER Price: $161.40 |
| 7 | 80-2570 | PIN-CLEVIS Price: $9.99 |
| 8 | 3229-11 | SCREW-CARR Price: $0.99 |
| 9 | 104-7201 | NUT-HF Price: $0.69 |
| 10 | 108-0893-03 | MOUNT-GUARD, FAN Price: $58.99 |
| 11 | 325-7 | SCREW-HH Price: $1.53 |
| 12 | 325-6 | SCREW-HH Price: $1.42 |
| 13 | 32153-5 | NUT-HEX Price: $1.59 |
| 14 | 321-5 | SCREW-HH Price: $0.22 |
| 15 | 13-4700 | LOWER FLAP ASM Price: $1,182.39 |
| 16 | 13-1390-03 | FLAP RETAINER Price: $23.00 |
| 17 | 3272-11 | PIN-COTTER Price: $0.99 |
| 18 | 121-2844 | DECAL-INDICATOR, ROTATION Price: $19.25 |
| 19 | 13-1420-01 | COVER-INSPECTION Price: $31.70 |
| 20 | 32103-12 | NUT-WING Price: $1.15 |
| 21 | 3256-22 | WASHER-FLAT Price: $0.39 |
