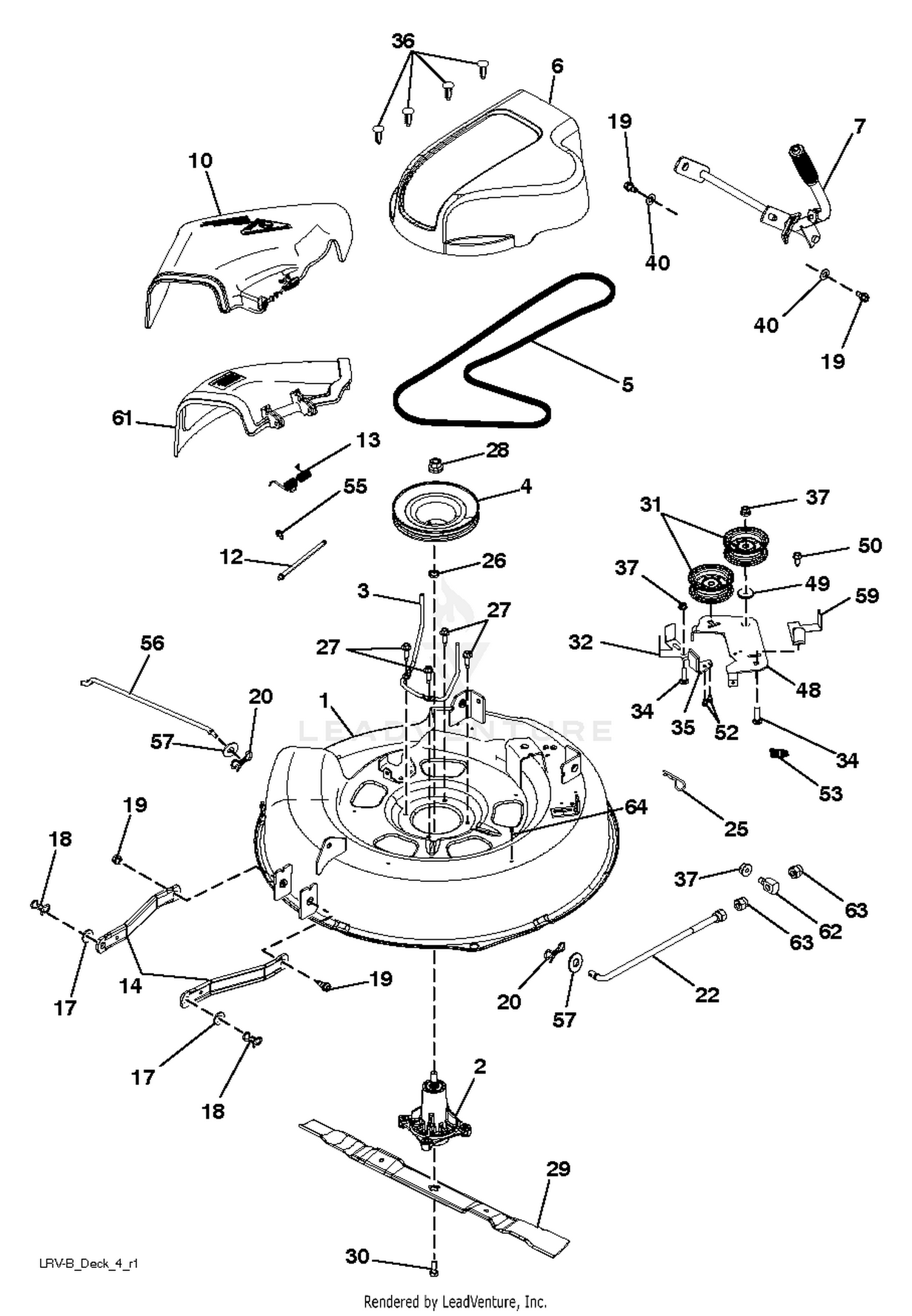

| Ref | Part Number | Description |
|---|
| 1 |
104-0546 |
RAMP ASM Price: $681.58 |
| 1 |
532436848 |
DECK.WELDMENT.LRV.30.BLACK Price: $159.99 |
| 2 |
587253301 |
MANDREL.NONGREASEABLE.TALL This part replaces 532192870. Price: $32.99 |
| 2 |
98-8775 |
MAT-RAMP Price: $103.37 |
| 3 |
105-5392 |
RIVET-DRIVE Price: $1.76 |
| 3 |
532436856 |
KEEPER.LRV.GEN2.MANDREL BELT Price: $44.99 |
| 4 |
532436855 |
PULLEY.LRV.GENS.MANDREL Price: $27.99 |
| 4 |
9202634 |
WASHER Price: $4.08 |
| 5 |
3272-7 |
PIN-COTTER Price: $0.25 |
| 5 |
532441597 |
V-BELT.MOWER.30.LRVB Price: $54.99 |
| 6 |
532436863 |
COVER.MANDREL.30".LRV.(B) Price: $44.99 |
| 6 |
98-8754 |
LATCH-RAMP Price: $20.44 |
| 7 |
532429395 |
LIFT.ASM.DECK.LRV Price: $54.99 |
| 7 |
98-8759 |
HINGE-ROD Price: $51.83 |
| 10 |
532439638 |
DEFLECTOR ASSEMBLY Price: $44.99 |
| 12 |
532436647 |
PIN.HINGE Price: $2.99 |
| 13 |
532437462 |
SPRING.DOUBLE.TORSION.SPRING Price: $5.99 |
| 14 |
532195185 |
ARM.SUSPENSION.MOWER Price: $11.99 |
| 17 |
819191912 |
WASHER.CLEAR.ZINC Price: $3.99 |
| 18 |
532194209 |
PIN.COTTER.7/16.BOW TI. Price: $1.99 |
| 19 |
532196539 |
BOLT.SHOULDER Price: $4.99 |
| 20 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $1.99 |
| 22 |
532429350 |
LINK.ASM.TOP.DECK.LRV Price: $19.99 |
| 25 |
532004497 |
RETAINER M This part replaces 532124788. Price: $5.99 |
| 26 |
532187690 |
WASHER.SPACER.MANDREL Price: $1.99 |
| 27 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $1.99 |
| 28 |
532400234 |
NUT.FLANGE.LOCK.TOP Price: $3.99 |
| 29 |
532419273 |
BLADE, MULCH.LRV30 Price: $11.99 |
| 30 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $5.99 |
| 31 |
532177968 |
PULLEY.IDLER.FLAT This part replaces 532193197. Price: $14.99 |
| 32 |
532141043 |
GUARD, BELT Price: $3.99 |
| 34 |
872110612 |
BOLT.3/8-16X1.50 Price: $3.99 |
| 35 |
532400130 |
BRAKE.ARM.LH.38"TEX.COATED This part replaces 532199470. Price: $11.99 |
| 36 |
532137729 |
SCREW.1/4-20X5/8 Price: $2.99 |
| 37 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.99 |
| 40 |
819171616 |
Washer 17/32 x 1-1/6 x 13 Gauge (AYP part number) Price: $5.99 |
| 48 |
532436857 |
ARM.LRV.GEN2.CLUTCHING Price: $9.99 |
| 49 |
532199092 |
SPACER.RETAINER Price: $3.99 |
| 50 |
817000616 |
SCREW 3/8-16X1 Price: $3.99 |
| 52 |
817600406 |
SCREW 1/4X20 Price: $2.99 |
| 53 |
532401872 |
SPRING RETURN Price: $2.99 |
| 55 |
532437988 |
E-RING.5/16" Price: $2.99 |
| 56 |
532436862 |
ROD.LRV.GEN2.ANTI.SWAY Price: $14.99 |
| 57 |
734117201 |
WASHER This part replaces 819131312. Price: $1.99 |
| 59 |
532436858 |
GUARD.TUV.IDLER.42 Price: $2.99 |
| 61 |
532437947 |
MULCH.COVER.ASSEMBLY.30" Price: $44.99 |
| 62 |
532176205 |
TRUNNION Price: $3.99 |
| 63 |
532175994 |
NUT, LIFT LINK 7/16-20 Price: $3.99 |
