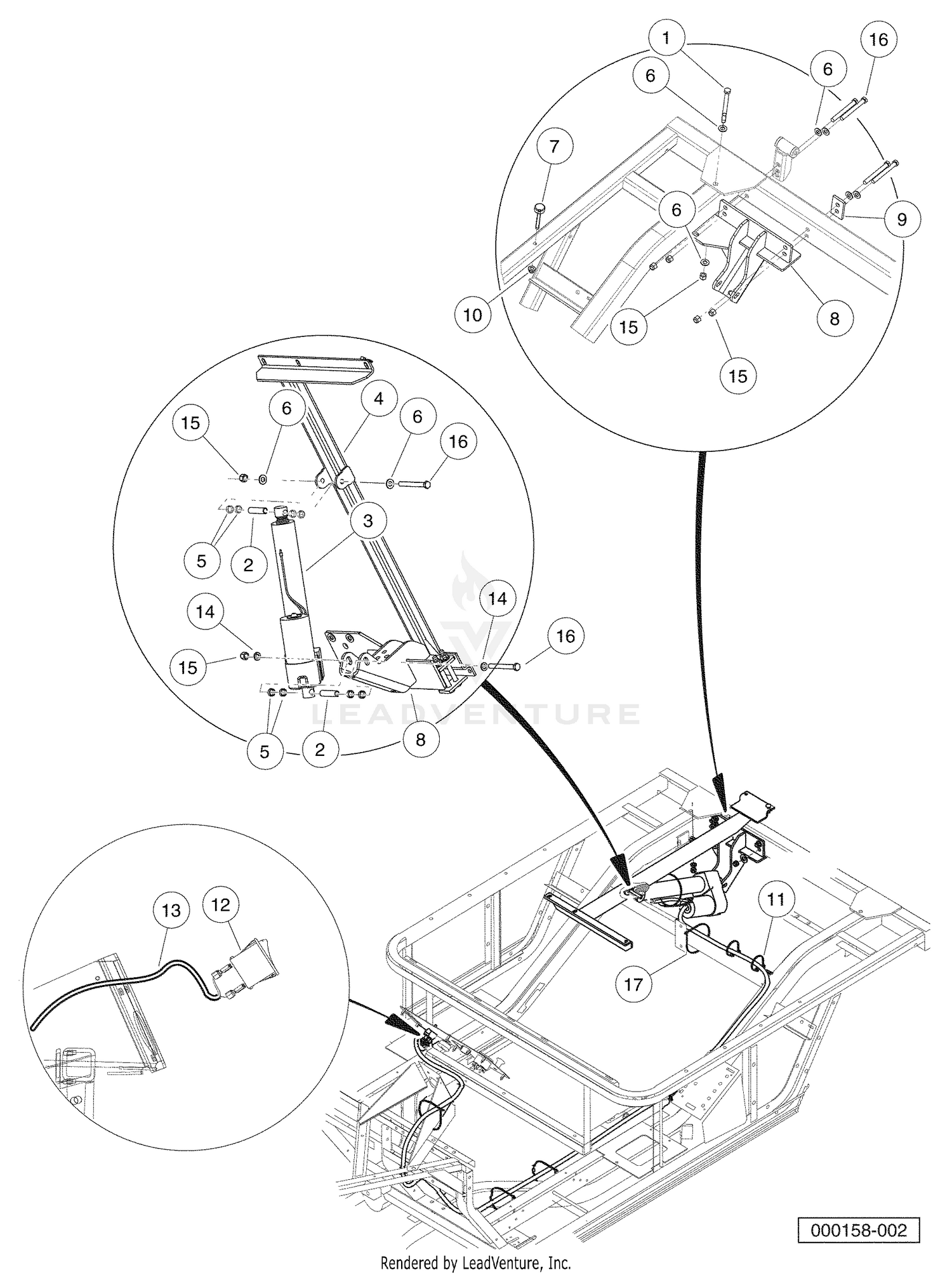

| Ref | Part Number | Description |
|---|
| 1 |
603000106 |
BOLT HEX HEAD Price: $4.99 |
| 1 |
98-7430 |
O-RING Price: $1.95 |
| 2 |
107-9075 |
PLUG-FILLER, OIL This part replaces 98-9449. Price: $7.25 |
| 2 |
603000365 |
BUSHING LONG Price: $22.99 |
| 3 |
603000384 |
ACTUATOR ASSEMBLY, ELECTRIC Price: $1,199.99 |
| 3 |
98-9455 |
NUT-CAP Price: $4.77 |
| 4 |
603000385 |
ASM, ACTUATOR ADAPTER Price: $229.99 |
| 4 |
98-9454 |
GASKET Price: $1.43 |
| 5 |
603000434 |
BODY SPACER Price: $2.99 |
| 5 |
98-9492 |
JOINT-PIPE, BREATHER Price: $9.68 |
| 6 |
603000781 |
WASHER, 3/8 TYPE B HARD FLAT Price: $1.99 |
| 6 |
98-9491 |
PIPE-BREATHER Price: $12.92 |
| 7 |
603001001 |
BUMPER, BED, MTG, FRONT Price: $8.99 |
| 7 |
98-9364 |
SCREW (WITH WASHER) Price: $0.32 |
| 8 |
603001127 |
WELDMENT, BRACKET, ACTUATOR Price: $199.99 |
| 8 |
98-9490 |
SHIELD-OIL, BREATHER Price: $1.28 |
| 9 |
603001286 |
PLATE, BACK Price: $6.99 |
| 9 |
98-9488 |
PLATE-ELEMENT, BREATHER Price: $1.33 |
| 10 |
603001308 |
LOCK NUT, FLG M8 X 1.25 NYLON Price: $3.99 |
| 10 |
98-9493 |
ELEMENT-BREATHER Price: $6.10 |
| 11 |
603001327 |
TIE WRAP, 8.00" WITH MOUNT Price: $3.99 |
| 11 |
98-9489 |
PLATE-ELEMENT, BREATHER Price: $7.89 |
| 12 |
531308241 |
SWITCH, ROCKER, SPRING RETURN Price: $69.99 |
| 12 |
98-9615 |
GASKET-COVER, HEAD Price: $20.34 |
| 13 |
531308272 |
HARNESS, AWD BEDLIFT Price: $109.99 |
| 13 |
98-9614 |
CYLINDER HEAD COVER ASM Price: $256.63 |
| 14 |
603000056 |
WASHER,LOCK,HEL SP 3/8 REG Price: $1.99 |
| 15 |
603000095 |
LOCKNUT, 3/8-16 HEX Price: $1.99 |
| 16 |
603000096 |
SCREW, 3/8-16 X 3.375 Price: $3.99 |
